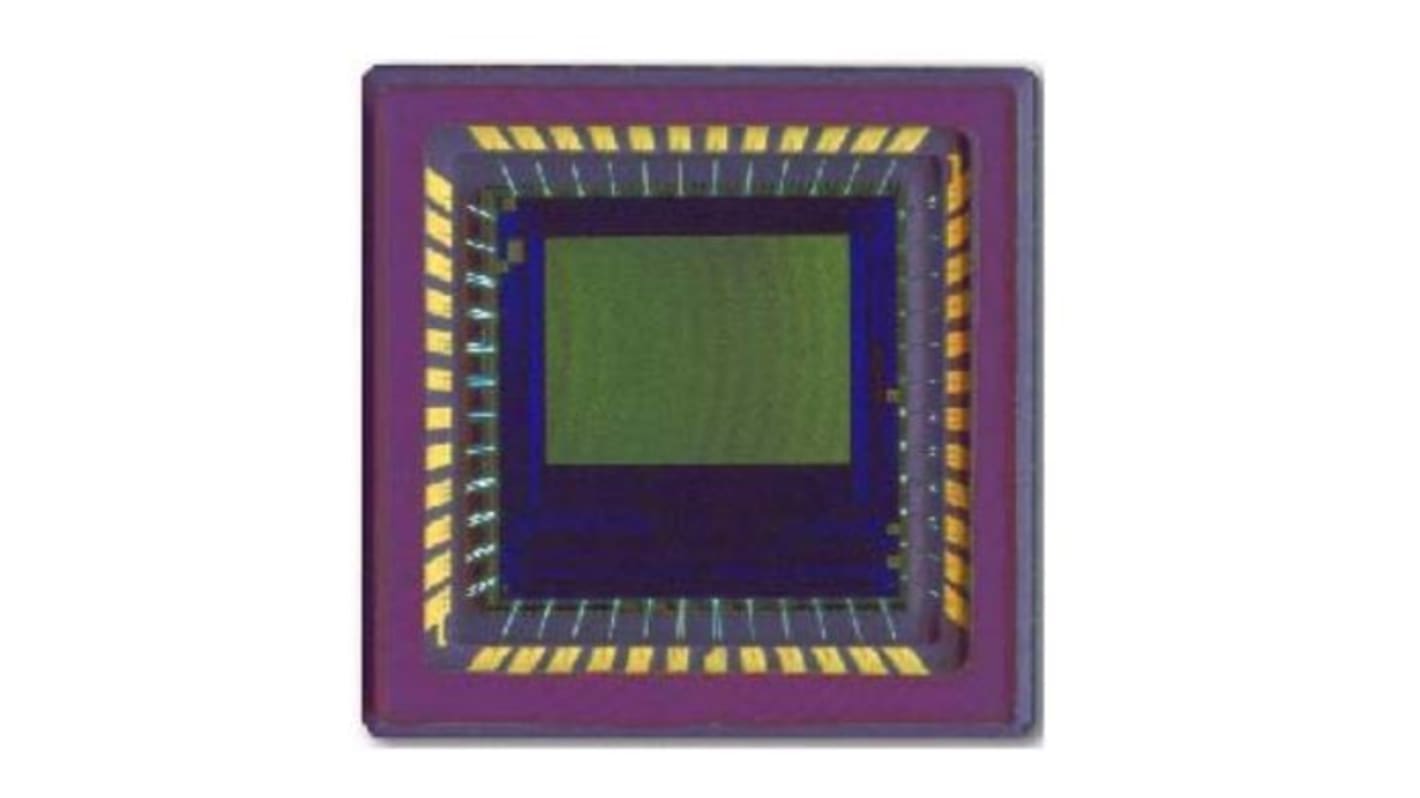

onsemi NOIL1SM0300A-QDC Image Sensor, 250fps Serial-SPI, 48-Pin LCC

RS Stock No.:: 186-8916
Mfr. Part No.:: NOIL1SM0300A-QDC
Brand:: onsemi

onsemi NOIL1SM0300A-QDC Image Sensor, 250fps Serial-SPI, 48-Pin LCC

On back order for despatch 23/12/2024, delivery within 10 working days from despatch date.

Added

Price (ex. GST) Each (In a Tray of 25)

$241.643

(exc. GST)

$265.807

(inc. GST)

Units	Per unit	Per Tray*
25 - 25	$241.643	$6,041.075
50 - 75	$235.602	$5,890.05
100 +	$231.977	$5,799.425
*price indicative

RS Stock No.:: 186-8916
Mfr. Part No.:: NOIL1SM0300A-QDC
Brand:: onsemi

Technical data sheets

Datasheet NOIL1SM0300A-QDC

Legislation and Compliance

Product Details

Double and multiple slope functionality
User programmable row and column start/stop positions
Subsampling
Global shutter and a maximal frame rate of 250 fps in full resolution
Programmable gain and offset amplifier
10-bit ADC
3-wire serial-parallel (SPI) interface
Available in a monochrome version or Bayer (RGB) patterned color filter array
Benefits
High dynamic range scenes can be captured
Allows windowing
Reduces resolution while maintaining constant field of view and increased frame rate
Applications
Machine vision
Motion tracking

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Frame Rate	250fps
Interface Type	Serial-SPI
Mounting Type	Surface Mount
Package Type	LCC
Pin Count	48
Dimensions	14.22 x 14.22 x 1.55mm
Length	14.22mm
Width	14.22mm
Height	1.55mm
Maximum Operating Supply Voltage	3.3 V
Maximum Operating Temperature	+70 °C
Minimum Operating Supply Voltage	2.5 V
Minimum Operating Temperature	-40 °C
