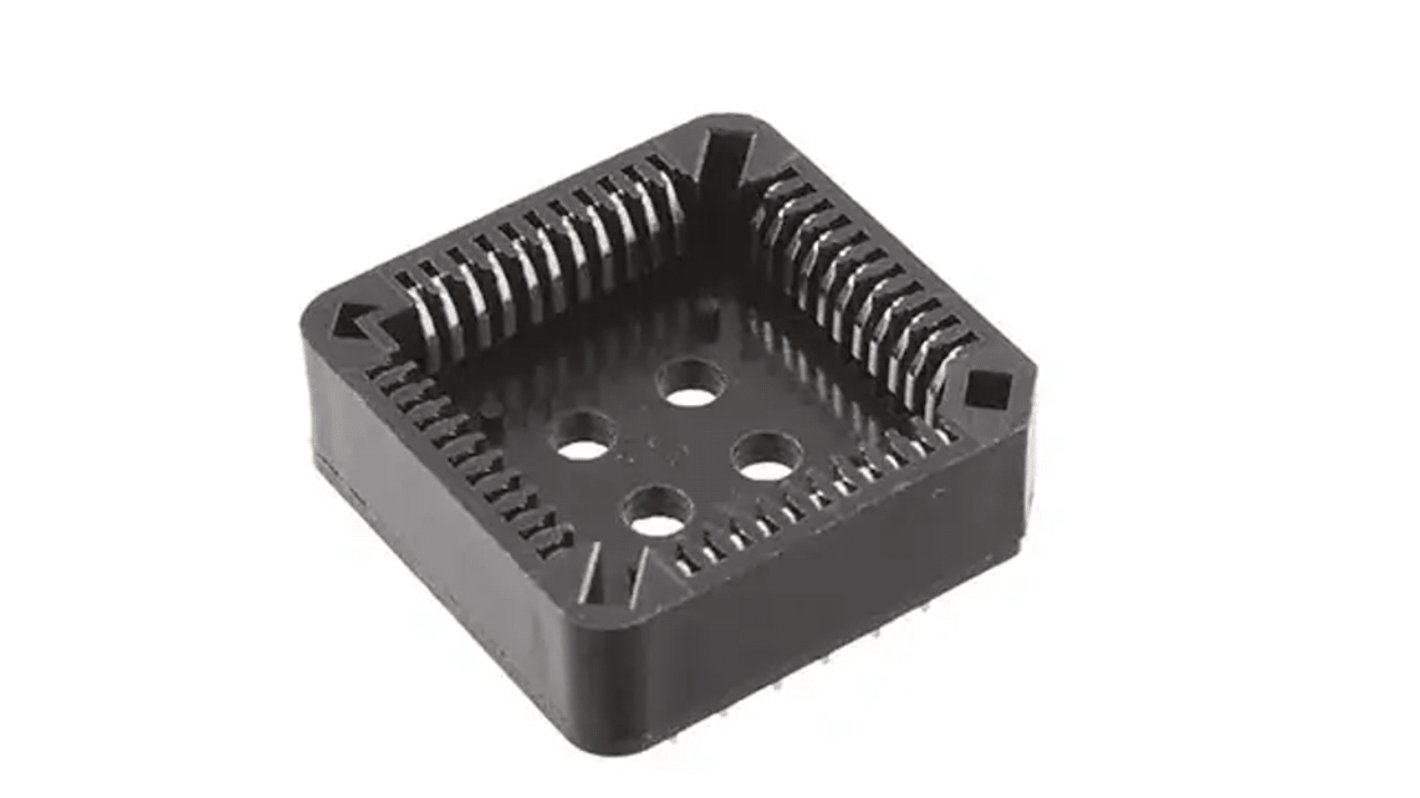

RS PRO 1.27 mm Pitch 44 Way Through Hole PLCC IC Socket
- RS Stock No.:
- 227-2204
- Brand:
- RS PRO
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 227-2204
- Brand:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | IC Socket | |
| IC Socket Type | PLCC Socket | |
| Number of Contacts | 44 | |
| Current | 1A | |
| Pitch | 1.27mm | |
| Voltage | 100 V | |
| Orientation | Straight | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Tin over Nickel | |
| Device Mount Type | Surface | |
| Row Pitch | 1.27mm | |
| Minimum Operating Temperature | -55°C | |
| Socket Mount Type | Through Hole | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Housing Material | Polybutylene Terephthalate | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type IC Socket | ||
IC Socket Type PLCC Socket | ||
Number of Contacts 44 | ||
Current 1A | ||
Pitch 1.27mm | ||
Voltage 100 V | ||
Orientation Straight | ||
Contact Material Phosphor Bronze | ||
Contact Plating Tin over Nickel | ||
Device Mount Type Surface | ||
Row Pitch 1.27mm | ||
Minimum Operating Temperature -55°C | ||
Socket Mount Type Through Hole | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Housing Material Polybutylene Terephthalate | ||
RS PRO 1.27mm Pitch 44 Way Through Hole PLCC Socket
This range of RS PRO PLCC Sockets are designed to convert plastic leaded chips to a thru-hole PCB format on a 100 inch centreline grid. The sockets have a thin wall and are low profile and they conform to JEDEC MS 016 and MS 018 pin count standards. The RS PRO superior precision stamped contact design provides consistent, high retention contacts for all size chips.
Features and Benefits
Applications
PLCC Sockets are commonly used in electronics applications and a socketed chip is particularly useful when developing new products. PLCC sockets are compatible with a range of chip sizes so for example where on-board programming is not achievable when PLD or another chip is needed they can be programmed off the circuit board before being added to test the system operation.
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
