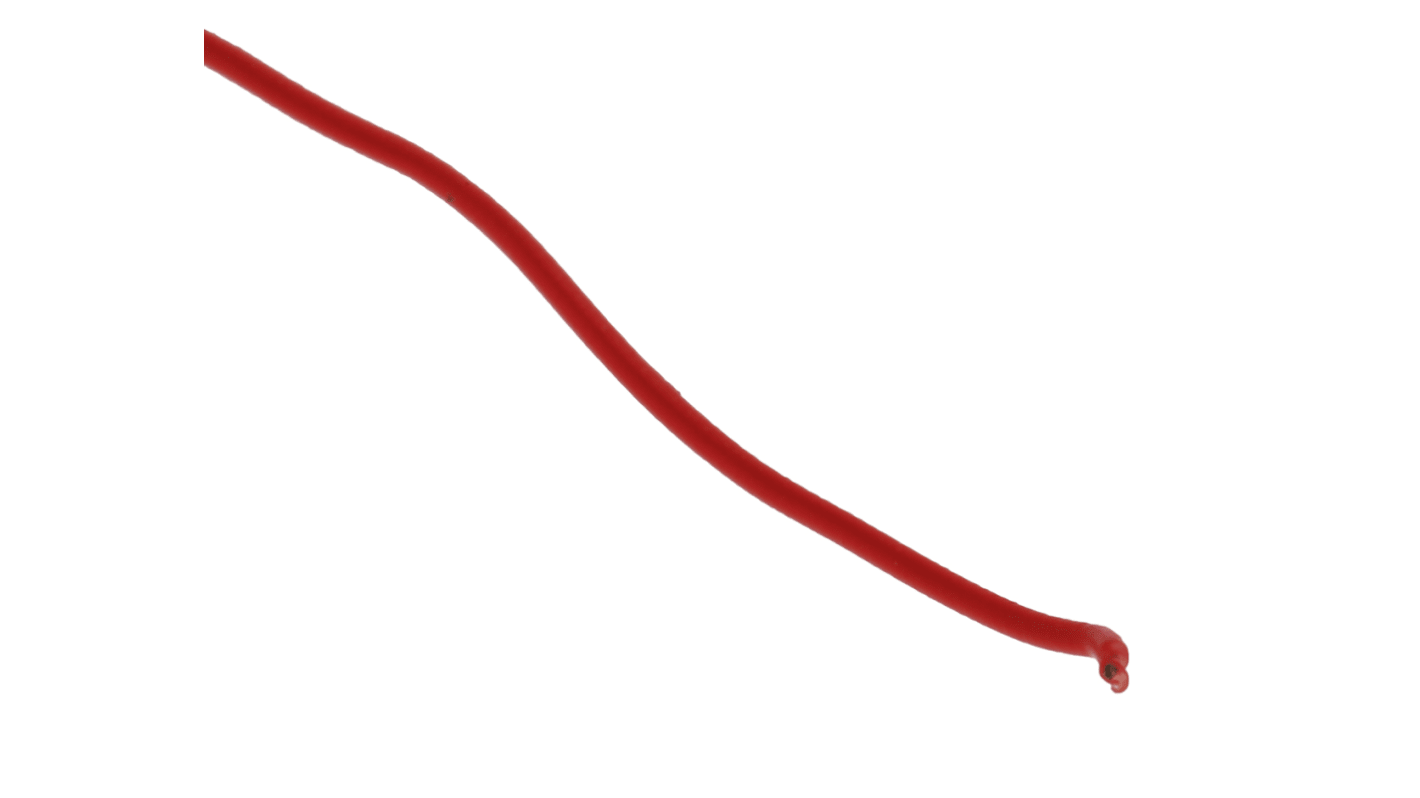

    RS PRO Red 0.05 mm² Hook Up Wire, 30 AWG, 1/0.25 mm, 50m, Kynar Insulation

    RS Stock No.:
    209-4811
    Manufacturer:
    RS PRO
    RS PRO
    View all Hook Up Wire
    5 In AU stock for next working day delivery
    6 In Global stock for delivery within 5 working day(s)
    Add to Basket
    Reel(s)

    Added

    Price (ex. GST) 1 Reel of 50 Metre(s)

    $28.59

    (exc. GST)

    $31.45

    (inc. GST)

    Reel(s)Per ReelPer Metre*
    1 - 49$28.59$0.572
    50 - 249$28.24$0.565
    250 +$23.24$0.465
    *price indicative
    RS Stock No.:
    209-4811
    Manufacturer:
    RS PRO
    COO (Country of Origin):
    US

    Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    US

    Product Details

    Kynar™ Wrapping Wire


    Brought to you by RS Pro, a range of equipment wire suitable for internal electronic wiring within circuit boards and devices. Supplied with a Kynar insulation, this hook up wire is an excellent addition for your application. All models are highly reliable and excellent quality.

    Features and Benefits


    • Kynar sheath insulation
    • Silver plated copper
    • Temperature range: -20°C to +130°C
    • Resists run back when soldering
    • Supplied on a 50 m reel

    What is hookup wire?


    Silver-plated copper solid conductor with Kynar™ insulation.

    What is hook up wire used for?


    Voltage rating 150V r.m.s.
    Temperature range: -20°C → +130°C
    Resists run back when soldering

    Benefits of a copper conductor


    Copper is the go to metal for nearly all cable. Due to the excellent conduction of electricity it provides. Circuit boards, telephone lines, power cables (including multicore) all use copper as the solid interior of their wire. There are different variations of copper available, such as:

    • Silver plated copper
    • Annealed copper
    • Nickel plated copper
    • Tinned copper

    Note

    Not suitable for use with the cut-strip-wrap bit and sleeve sets.

    Approvals

    7777

    Specifications

    AttributeValue
    Cross Sectional Area0.05 mm²
    Sheath ColourRed
    American Wire Gauge30 AWG
    Core Strands1/0.25 mm
    Length50m
    Insulation MaterialKynar
    Voltage Rating300 V
    Outer Diameter0.5mm
    Maximum Operating Temperature+130°C
    Minimum Operating Temperature-20°C
    Conductor MaterialSilver Plated Copper
    Standards MetRoHS Compliant
    Insulation Wall Thickness0.5mm
    Number of Strands1
