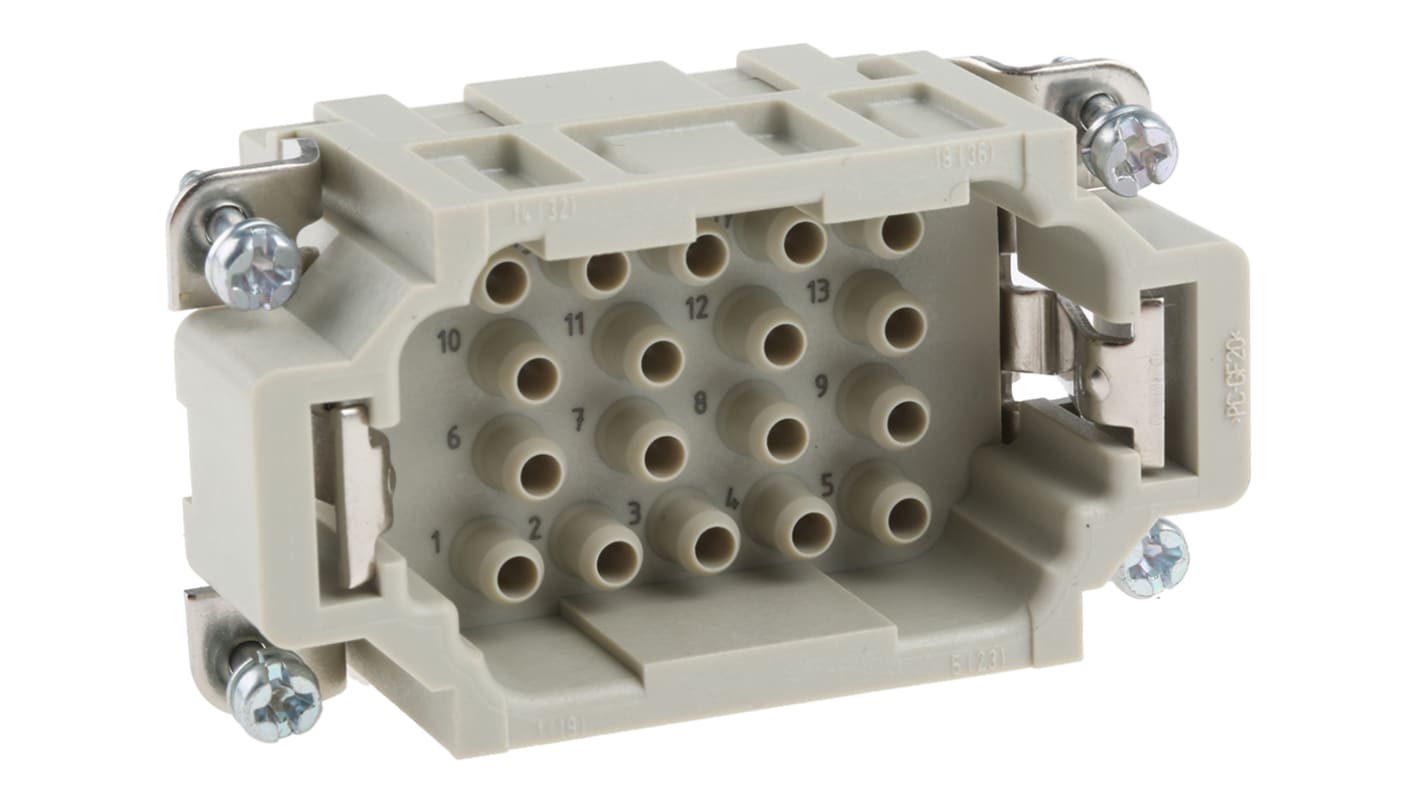

HARTING Heavy Duty Power Connector Insert, 16A, HAN EE Series Male, 18 Contacts

RS Stock No.:: 282-9162
Distrelec Article No.:: 143-12-584
Mfr. Part No.:: 09320183001
Brand:: HARTING

HARTING Heavy Duty Power Connector Insert, 16A, HAN EE Series Male, 18 Contacts

Bulk discount available

View bulk pricing options

Subtotal (1 unit)*

$46.35

(exc. GST)

$50.98

(inc. GST)

Stock information currently inaccessible - Please check back later

Units	Per unit
1 - 49	$46.35
50 - 99	$45.98
100 +	$45.13

*price indicative

RS Stock No.:: 282-9162
Distrelec Article No.:: 143-12-584
Mfr. Part No.:: 09320183001
Brand:: HARTING

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	HARTING
	Product Type	Heavy Duty Power Connector Insert
	Current Rating	16A
	Series	HAN EE
	Sub Type	Connector Insert
	Connector Gender	Male
	For Use With	Heavy Duty Power Connector
	Pole Format	18+E
	Number of Rows	4
	Voltage	500V
	Mount Type	Cable
	Manufacturer Size Code	10B
	Number of Contacts	18
	Standards/Approvals	IEC 60664-1
	Thread Size	M3 x 10
	Minimum Wire Size mm²	0.14mm²
	Maximum Wire Size mm²	4mm²
	Contact Material	Polycarbonate
	Orientation	Straight

	Select all
	Brand HARTING
	Product Type Heavy Duty Power Connector Insert
	Current Rating 16A
	Series HAN EE
	Sub Type Connector Insert
	Connector Gender Male
	For Use With Heavy Duty Power Connector
	Pole Format 18+E
	Number of Rows 4
	Voltage 500V
	Mount Type Cable
	Manufacturer Size Code 10B
	Number of Contacts 18
	Standards/Approvals IEC 60664-1
	Thread Size M3 x 10
	Minimum Wire Size mm² 0.14mm²
	Maximum Wire Size mm² 4mm²
	Contact Material Polycarbonate
	Orientation Straight

Harting HAN EE Series Heavy Duty Power Connector Insert, 16A Current Rating, 500V Voltage - 9320183001

This heavy duty power connector insert provides a rugged electrical interconnection for industrial cable assemblies. Designed for male insertion into a compatible heavy duty connector housing, it supports medium-power distribution in control and machinery environments while meeting recognised insulation standards.

Features & Benefits

• Rated for 16A to support typical control circuit currents
• Withstands 500V for medium-voltage applications
• Eighteen contacts Plus earth for multi-circuit connections
• Polycarbonate contact material offering electrical insulation
• Cable mount format for secure in-line cabling integration
• Accepts conductors up to 4mm² for flexible cable selection

Applications

• Suitable for motor control panel cable connections
• Ideal for factory automation power distribution
• Used with industrial machinery power Interface housings
• Can be used for connectorised test equipment leads

What contact arrangement does it use and why is that useful?

It has an 18+E pole layout which allows several signal or power lines Plus a dedicated earth conductor within a single insert, simplifying cable routing in complex control systems.

Which wire sizes are compatible and how does that affect termination?

Conductors from 0.14mm² up to 4mm² can be terminated, enabling both small signal wiring and larger power feeds using appropriate ferrules or crimp terminations to maintain secure electrical contact.

How is the insert mounted in an assembly?

The unit is designed for cable mounting so it is fixed within the cable run and then engaged into a matching connector housing to form the completed interface.

What industry insulation standard does it conform to and what does this imply?

It meets IEC 60664-1 requirements, indicating suitable coordination of insulation for the rated voltage between conductors and to earth in industrial applications.

Approvals

UL, CSA, SEV

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of a wrong connection
