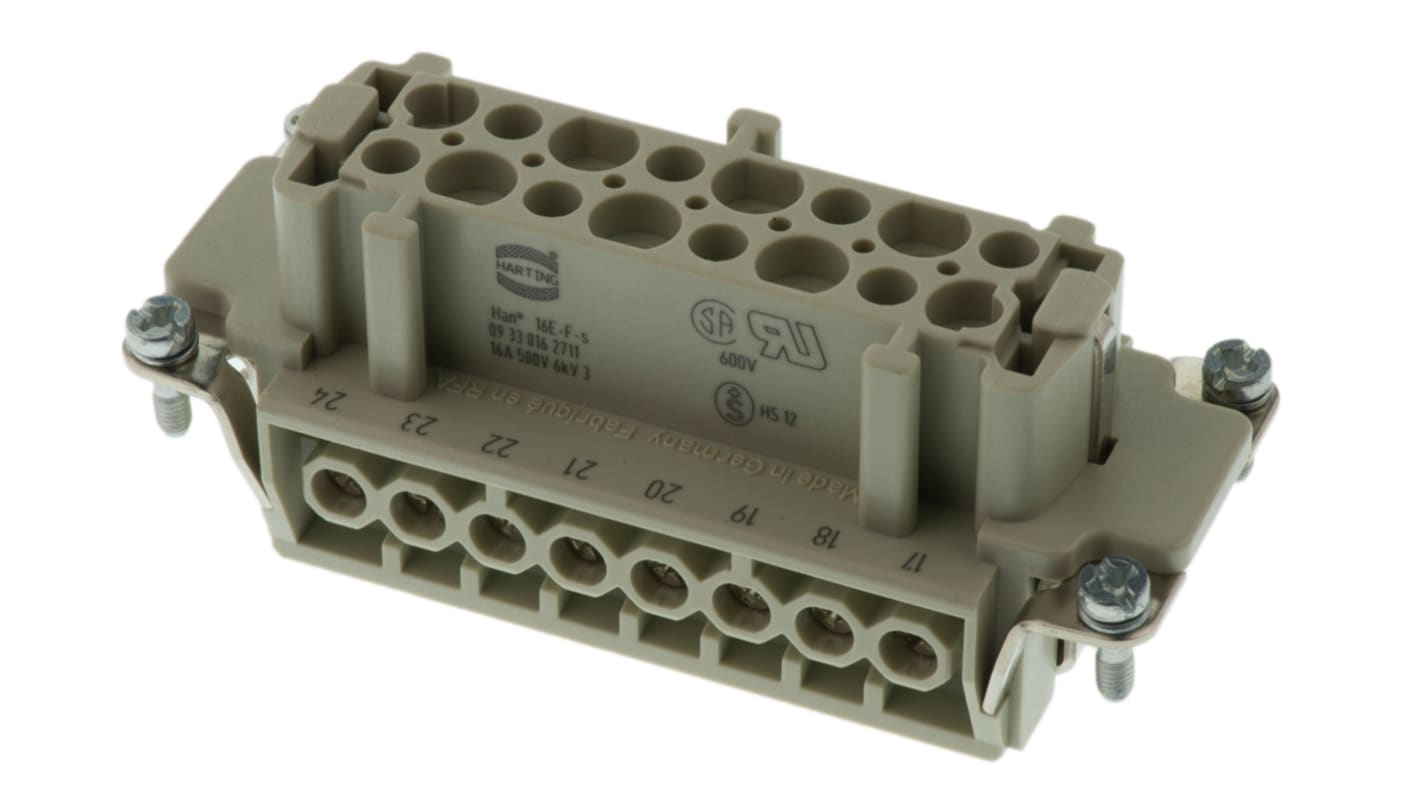

HARTING Heavy Duty Power Connector Insert, 16A, Han E Series Female, 32 Contacts
- RS Stock No.:
- 114-8383
- Mfr. Part No.:
- 09330162711
- Brand:
- HARTING
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
$34.57
(exc. GST)
$38.03
(inc. GST)
FREE delivery for orders over $80.00 ex GST
In Stock
- 66 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 49 | $34.57 |
| 50 - 99 | $34.47 |
| 100 + | $32.86 |
*price indicative
- RS Stock No.:
- 114-8383
- Mfr. Part No.:
- 09330162711
- Brand:
- HARTING
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Product Type | Heavy Duty Power Connector Insert | |
| Current Rating | 16A | |
| Series | Han E | |
| Sub Type | Connector Insert | |
| Connector Gender | Female | |
| For Use With | Heavy Duty Power Connector | |
| Pole Format | 32 | |
| Number of Rows | 2 | |
| Voltage | 500V | |
| Mount Type | Cable | |
| Manufacturer Size Code | 32B | |
| Number of Contacts | 32 | |
| Standards/Approvals | No | |
| Minimum Wire Size mm² | 0.75mm² | |
| Maximum Wire Size mm² | 2.5mm² | |
| Contact Material | Copper Alloy | |
| Orientation | Straight | |
| Contact Plating | Silver | |
| Select all | ||
|---|---|---|
Brand HARTING | ||
Product Type Heavy Duty Power Connector Insert | ||
Current Rating 16A | ||
Series Han E | ||
Sub Type Connector Insert | ||
Connector Gender Female | ||
For Use With Heavy Duty Power Connector | ||
Pole Format 32 | ||
Number of Rows 2 | ||
Voltage 500V | ||
Mount Type Cable | ||
Manufacturer Size Code 32B | ||
Number of Contacts 32 | ||
Standards/Approvals No | ||
Minimum Wire Size mm² 0.75mm² | ||
Maximum Wire Size mm² 2.5mm² | ||
Contact Material Copper Alloy | ||
Orientation Straight | ||
Contact Plating Silver | ||
- COO (Country of Origin):
- DE
Han E® Inserts
• Poles: 6-48 (screw connection – wire csa 2.5mm²;• The 32 and 48 pole versions require two contact inserts per connector half; a standard insert numbered ’1 to 16’ or ’1 to 24’ pole insert (m) or (f) together with one numbered ’17 to 32’ or numbered ’25 to 48’ insert (m) or (f).;• These are identified in the price table - e.g. 32P + E (17 – 32)
Han E® 16A Screw Series
These Han E® inserts are rated at 16A. They are intended for use with hoods and housings. All these hoods and housing ranges are associated to a specific Harting ’Size’ number identifier. See the ’compatibility’ table for details of this relationship, and stock numbers of hoods and housings that are typical of each range.
Approvals
UL, CSA, SEV
Warning
These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.
