RS PRO 35 x 26 x 31 mm 19 Way Female Right Angle Feedthrough HDMI Connector

RS Stock No.:: 257-6704
Brand:: RS PRO

RS PRO 35 x 26 x 31 mm 19 Way Female Right Angle Feedthrough HDMI Connector

37 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$27.73

(exc. GST)

$30.50

(inc. GST)

Units	Per unit
1 - 9	$27.73
10 +	$25.89

RS Stock No.:: 257-6704
Brand:: RS PRO

Technical data sheets

RS PRO Datasheet

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

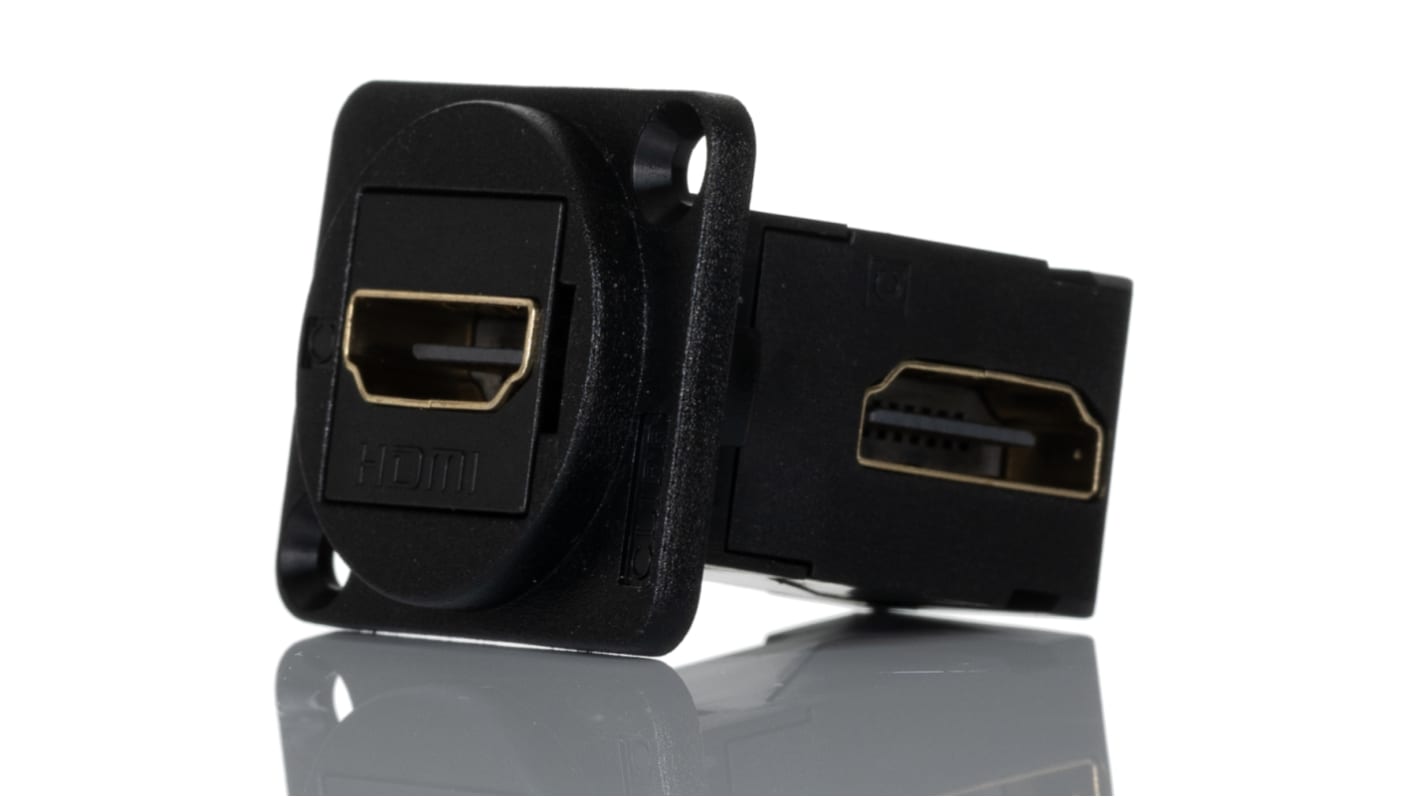

RS PRO Right Angle HDMI Feedthrough Connector

A female right angle HDMI feedthrough connector enabling the safe feeding of HDMI cables through a standard XLR format chassis without the need to solder.

Suitable for front and back connection and mounted via a standard XLR (External Line Return) cut out, featuring a low profile 90 degree design the connector is ideal for use in tight areas where space is limited, or cable access is a challenge.

Built with quality in mind this female HDMI connector features Brass connectors for strength and is finished with a Gold plating for excellent wear resistance, even with repeated connections.

Ideal for use in a wide range of applications including data connections for instrument panels, the creation of custom I/O configurations, video and audio equipment, displays.

Features and Benefits

Female

Right angle design

Fits a standard XLR 24mm panel cut out

Black Polyamide frame with countersunk fixing holes

No soldering or punch termination required

Front and rear connection

Low rear profile

Dimensions of 31 x 19 x 35mm

Standards and Approvals: REACH, RoHS compliant

Why RS PRO?

Looking to reduce costs but keep the same quality?

With a choice of over 65,000 products – all of which are rigorously tested against demanding industry standards before they are given the RS PRO seal of approval.

Trusted by engineers the world over, we want you to be confident that you’re receiving the exceptional quality, reliability and the best value for money.

Specifications

Attribute	Value
Gender	Female
Number of Contacts	19
Size	35 x 26 x 31 mm
Contact Material	Brass
Contact Plating	Gold
Body Orientation	Right Angle
Termination Method	Feed Through
Housing Material	ABS
Colour	Black
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-10°C
