DiodesZetex Hall Effect Sensor 4 mA 50 mA Solder Terminal Linear Maintained, 105 °C, -40 °C, 8 V, 3 V

View all Hall Effect Switches
Bulk discount available

Subtotal (1 pack of 10 units)*

$7.69

(exc. GST)

$8.46

(inc. GST)

Add to Basket
Select or type quantity
Last RS stock
  • Final 570 unit(s), ready to ship from another location
Units
Per unit
Per Pack*
10 - 40$0.769$7.69
50 - 90$0.746$7.46
100 - 240$0.724$7.24
250 - 490$0.702$7.02
500 +$0.681$6.81

*price indicative

Packaging Options:
RS Stock No.:
246-7403
Mfr. Part No.:
AH49FZ3-G1
Brand:
DiodesZetex

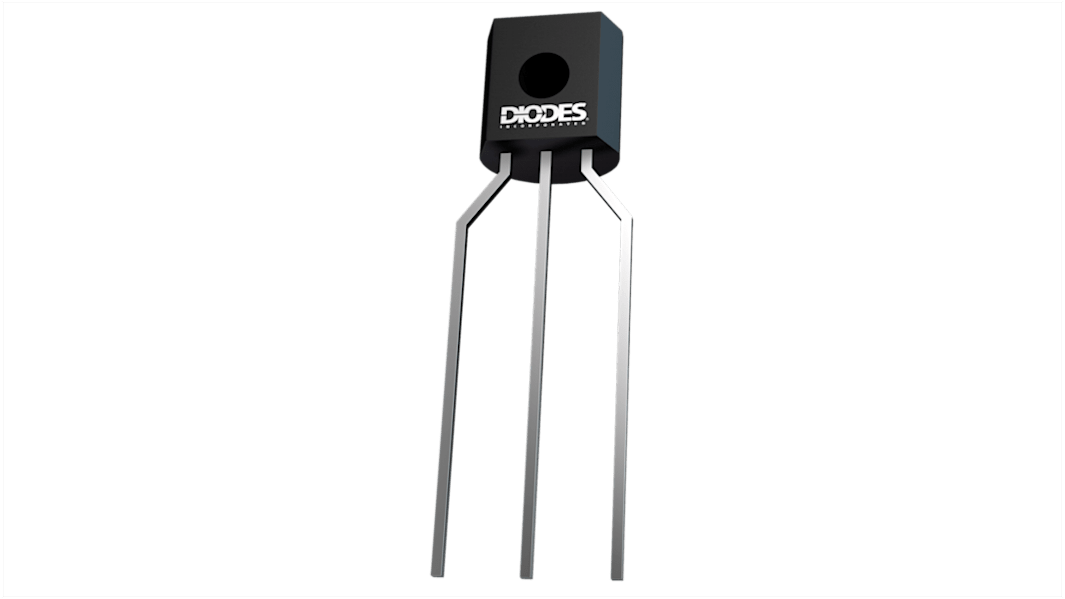

The DiodesZetex AH49F is a small, versatile linear Hall-effect device that is operated by the magnetic field from a permanent magnet or an electromagnet. The output voltage is set by the supply voltage and varies in proportion to the strength of the magnetic field. The operating temperature range of these linear Hall sensors is -40°C to +105°C, appropriate for commercial, consumer, and industrial environments. The AH49F is available in standard TO92S (Type A) packages.

The device has power consumption of 3.0mA at 5VCC for energy efficiency The device has single current sourcing output It has Linear voltage output for circuit design flexibility It has a low noise output virtually eliminates the need for filtering
