Infineon Hall Effect Sensor 6 mA Solder Pin Digital, 85 °C, -40 °C, 18V, 2.7 V
- RS Stock No.:
- 244-2291
- Mfr. Part No.:
- TLV4906KFTSA1
- Brand:
- Infineon

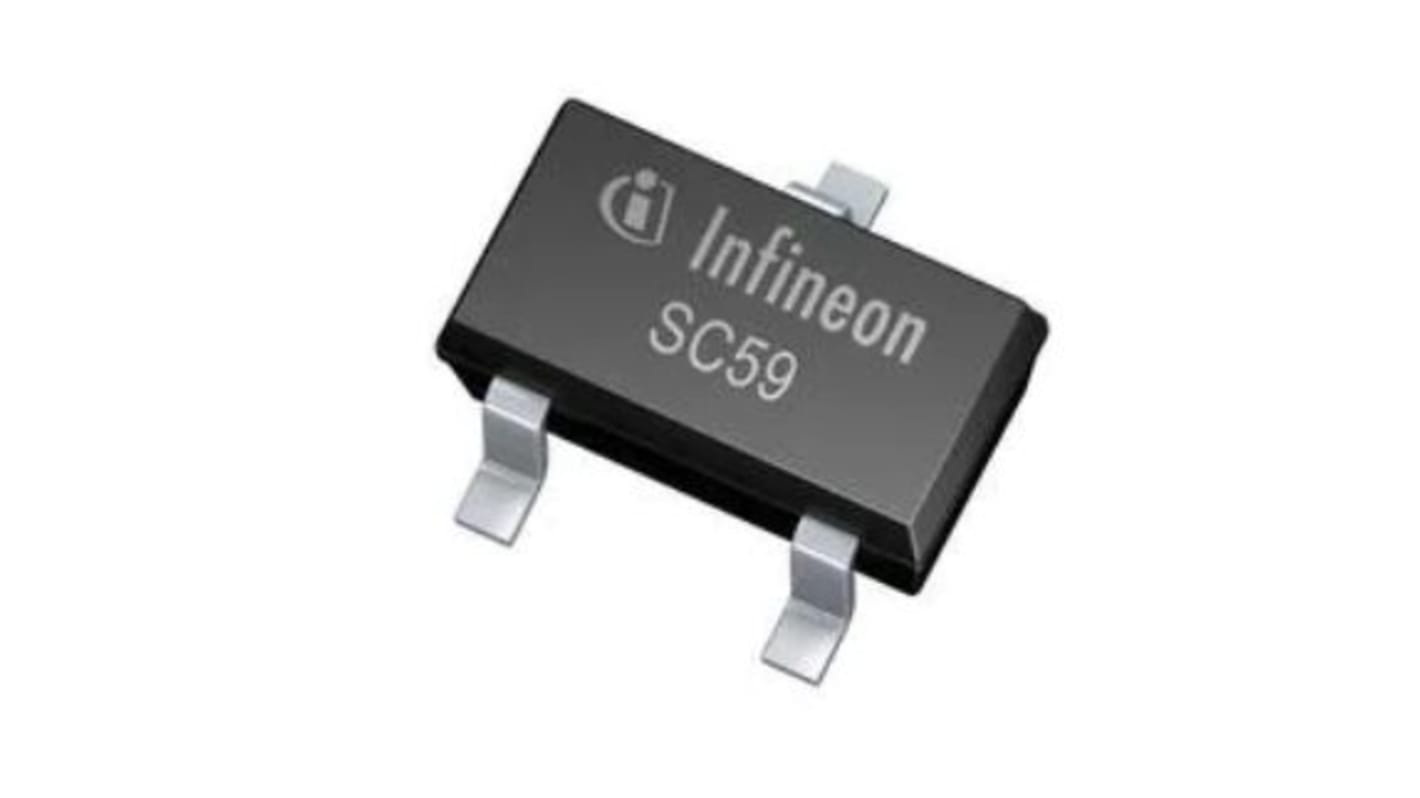

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 10 units)*
$6.63
(exc. GST)
$7.29
(inc. GST)
FREE delivery for orders over $80.00 ex GST
In Stock
- 2,490 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 10 | $0.663 | $6.63 |
| 20 - 90 | $0.647 | $6.47 |
| 100 - 240 | $0.632 | $6.32 |
| 250 - 490 | $0.619 | $6.19 |
| 500 + | $0.604 | $6.04 |
*price indicative
- RS Stock No.:
- 244-2291
- Mfr. Part No.:
- TLV4906KFTSA1
- Brand:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Supply Voltage | 18V | |
| Supply Current | 6mA | |
| Terminal Type | Solder Pin | |
| Output Type | Digital | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Minimum Supply Voltage 2.7V | ||
Maximum Supply Voltage 18V | ||
Supply Current 6mA | ||
Terminal Type Solder Pin | ||
Output Type Digital | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
The Infineon TLV4906K is a high precision Hall Effect Switch with highly accurate switching thresholds for ambient operating temperatures up to 85°C. The TLV4906K is available in a SMD package PG-SC59-3-5 which is lead-free and halogen-free to meet current und future requirements.
2.7 V to 18 V supply voltage operation.
Operation from unregulated power supply.
High sensitivity and high stability of the magnetic switching points.
High resistance to mechanical stress by active error compensation.
Reverse battery protection (-18 V).
Superior temperature stability.
Low jitter (typically 1 μs).
High ESD performance (± 4 kV HBM).
Digital output signal (open-drain).
Lead-free and halogen-free green SMD package
Not suitable for automotive applications
