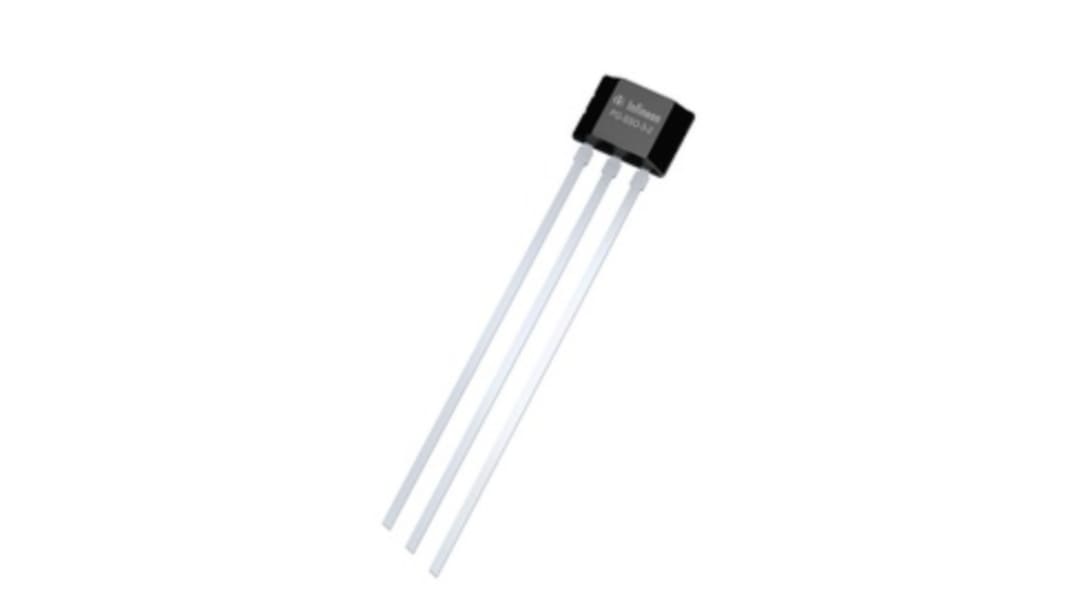

Infineon Through Hole Hall Effect Sensor, Open Drain Output, 32 V

RS Stock No.:: 244-0919
Mfr. Part No.:: TLE49613LHALA1
Brand:: Infineon

Infineon Through Hole Hall Effect Sensor, Open Drain Output, 32 V

1 / 1

Bulk discount available

Subtotal (1 reel of 2000 units)**

$1,552.00

(exc. GST)

$1,708.00

(inc. GST)

On back order for despatch 26/09/2025, delivery within 10 working days from despatch date.*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Units	Per unit	Per Reel**
2000 - 2000	$0.776	$1,552.00
4000 - 4000	$0.758	$1,516.00
6000 +	$0.739	$1,478.00

**price indicative

RS Stock No.:: 244-0919
Mfr. Part No.:: TLE49613LHALA1
Brand:: Infineon

Infineon Hall Effect Sensor, 32V Supply Voltage, Open Drain Output Type - TLE49613LHALA1

This Hall effect sensor is a high-precision device designed for automotive and industrial applications. With dimensions of 4.16 x 3.29 x 1.52 mm, this compact Hall effect sensor offers robust performance across a wide temperature range, with an operating temperature between -40°C and +170°C. It is equipped with reverse polarity protection, making it suitable for various operational environments.

Features & Benefits

• Open drain output facilitates high-current requirements
• Integrated overvoltage protection up to 42V without additional resistors
• Excellent temperature stability ensures reliable performance
• Compact design allows for easy integration in tight spaces
• Low jitter operation results in high accuracy for sensing requirement

Applications

• Used for automotive requiring precise state detection
• Utilised in industrial settings for position and speed monitoring
• Ideal for with high temperature requirements
• Suitable for systems with potential load dump scenarios
• Effective in window lifters and other mechanisms requiring precise control

What supply voltage range does this sensor support?

It supports a supply voltage range from 3.0V to 32V, accommodating various system designs without compromising performance.

How does the reverse polarity protection feature function?

The integrated reverse polarity protection safeguards the device against potential damage from incorrect connections, ensuring durability.

What type of output does this sensor provide?

It features an open drain output configuration, which is effective for driving high-power applications and reducing overall circuit complexity.

Can this sensor operate under extreme temperatures?

Yes, it is designed to function effectively within an extensive temperature range of -40°C to +170°C, suitable for demanding environments.

How is the magnetic threshold stability ensured?

The sensor utilises advanced compensation techniques to maintain stable magnetic thresholds, minimising the impact of temperature variations on performance.

For these production packs, non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

Find similar products by selecting one or more attributes.

	Select all
	Brand Infineon
	Output Type Open Drain
	Mounting Style Through Hole
	Supply Voltage 32 V
