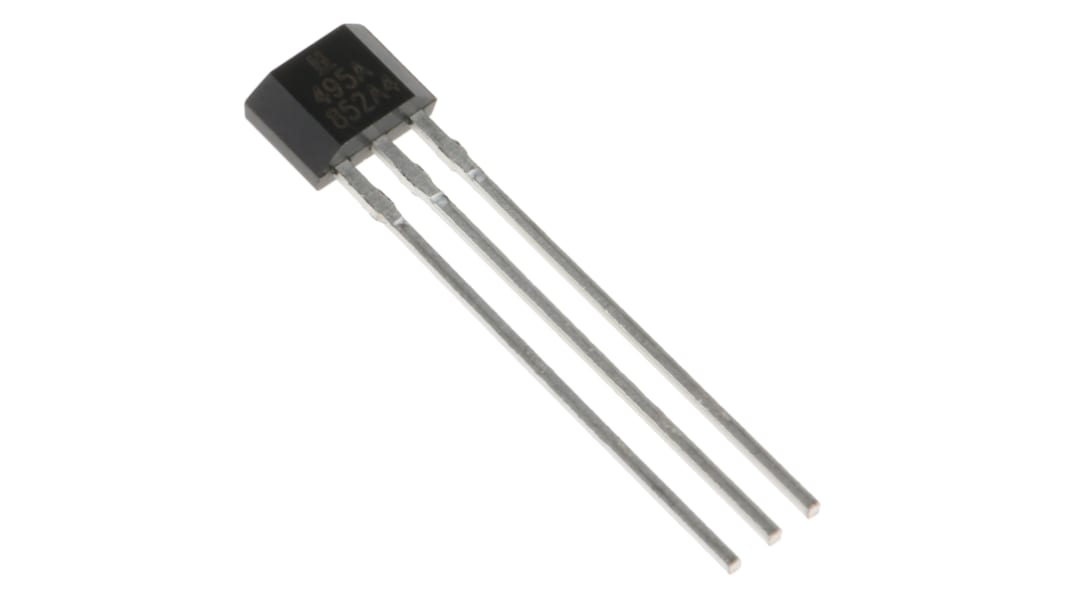

Honeywell Ratiometric Hall Effect Sensor switching current 1.5 mA supply voltage 4.5 → 10.5 V dc

  • RS Stock No. 169-7668
  • Mfr. Part No. SS495A
  • Manufacturer Honeywell
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Miniature Ratiometric Linear Hall Effect Sensors

Hall effect sensors with output proportional to supply voltage and the strength of the magnet field
Single current sinking or current sourcing linear output
Rail-to-rail operation provides more useable signal for higher accuracy
Responds to either positive or negative gauss
Good temperature stability
Typical applications include; current sensor, motor control, position control, encoder, metal detection, vibration sensor etc

Specifications
Attribute Value
Output Type Ratiometric
Supply Voltage 4.5 → 10.5 V dc
Terminal Type PCB
Switching Current 1.5 mA
Length 4.06mm
Width 3mm
Depth 1.6mm
Dimensions 4.06 x 3 x 1.6 mm
Minimum Operating Temperature -40°C
Maximum Operating Temperature +150°C
On back order for despatch 02/09/2020, delivery within 5 working days from despatch date.
Price (ex. GST) Each (In a Bag of 5000)
$ 1.93
(exc. GST)
$ 2.12
(inc. GST)
units
Per unit
Per Bag*
5000 +
$1.93
$9,650.00
*price indicative
