- RS Stock No.:
- 838-2694
- Mfr. Part No.:
- RF1V-2A2B-D24
- Brand:
- Idec
On back order for despatch 13/05/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each
$37.95
(exc. GST)
$41.75
(inc. GST)
Units | Per unit |
1 - 9 | $37.95 |
10 - 24 | $37.31 |
25 - 49 | $36.33 |
50 - 99 | $35.36 |
100 + | $34.66 |
- RS Stock No.:
- 838-2694
- Mfr. Part No.:
- RF1V-2A2B-D24
- Brand:
- Idec
Technical data sheets
Legislation and Compliance
Product Details
RF1V Series

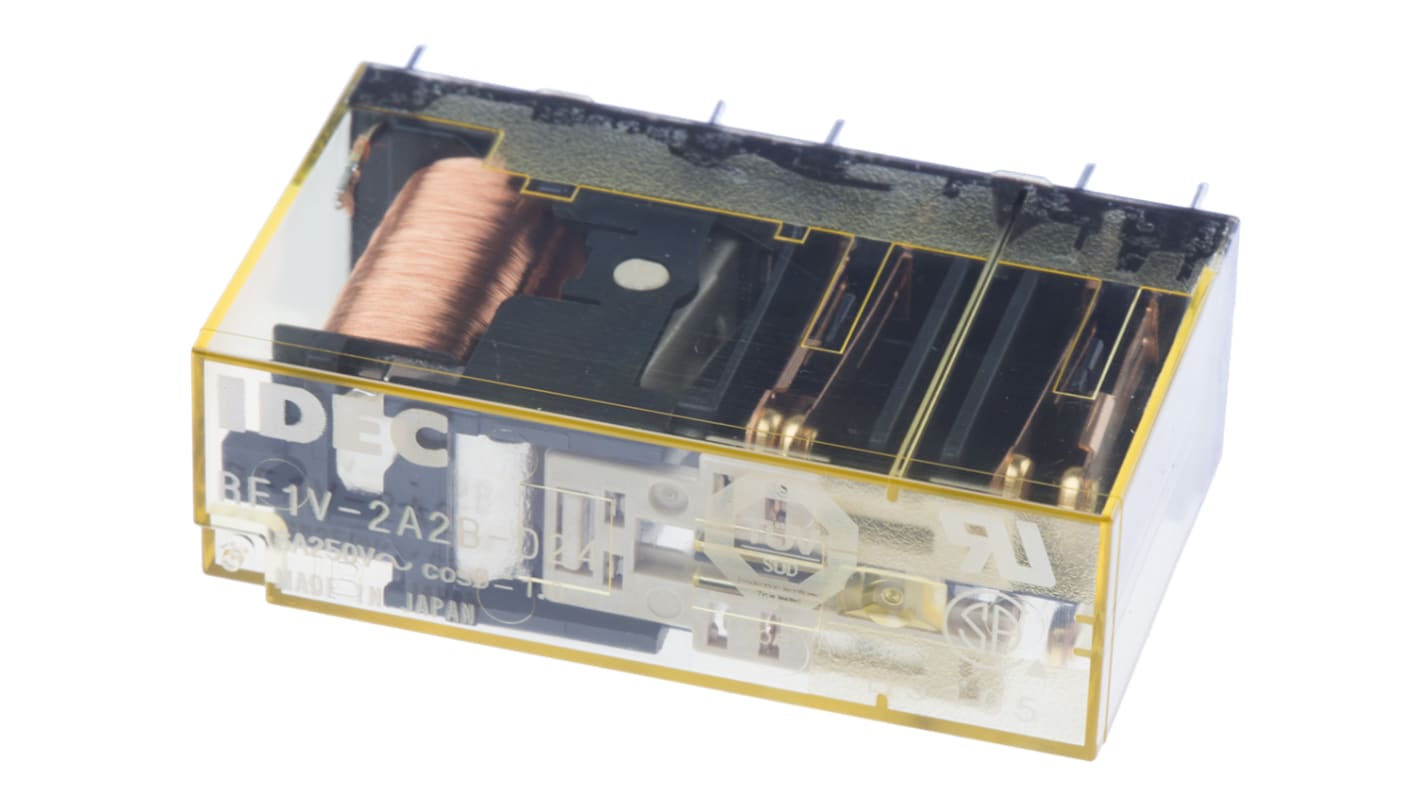

RF1V series force guided relays used in safety circuits in combination with interlock switches, light curtains, and emergency stop switches to control outputs. They can also be used to expand outputs for safety relay modules and safety controllers.
Force guided contact mechanism
4-pole or 6-pole versions available
Built-in LED indicator available
Fast response time (8 ms maximum)
High shock resistance
Finger-safe DIN rail mount socket and PCB mount socket
Operating temperature -40 ºC to +85 ºC
4-pole or 6-pole versions available
Built-in LED indicator available
Fast response time (8 ms maximum)
High shock resistance
Finger-safe DIN rail mount socket and PCB mount socket
Operating temperature -40 ºC to +85 ºC
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Coil Voltage | 24V dc |
Mounting Type | PCB Mount |
Contact Configuration | DPDT |
Number of Poles | 4 |
Coil Resistance | 1.6 kΩ |
Switching Current | 6A |
Maximum Switching Current AC | 6 A |
Coil Power | 360mW |
Maximum Switching Current DC | 6 A |
Maximum Switching Voltage DC | 30V |
Maximum Switching Voltage AC | 250V |
Terminal Type | PCB Pin |
Contact Material | Silver Alloy |
Life | 100000 (Electrical) Operations, 10000000 (Mechanical) Operations |
Length | 40mm |
Height | 24mm |
Maximum Switching Power AC | 1.54 kVA |
Minimum Operating Temperature | -40°C |
Series | RF1V |
Maximum Operating Temperature | +85°C |
Isolation Coil To Contact | 4kV ac |
Maximum Switching Power DC | 180 W |
Depth | 13mm |
