Panasonic PCB Mount Force Guided Relay, 48V dc Coil Voltage, 6 Pole, 4PST, DPST
- RS Stock No.:
- 699-6180
- Mfr. Part No.:
- SFN4D-DC48V
- Brand:
- Panasonic

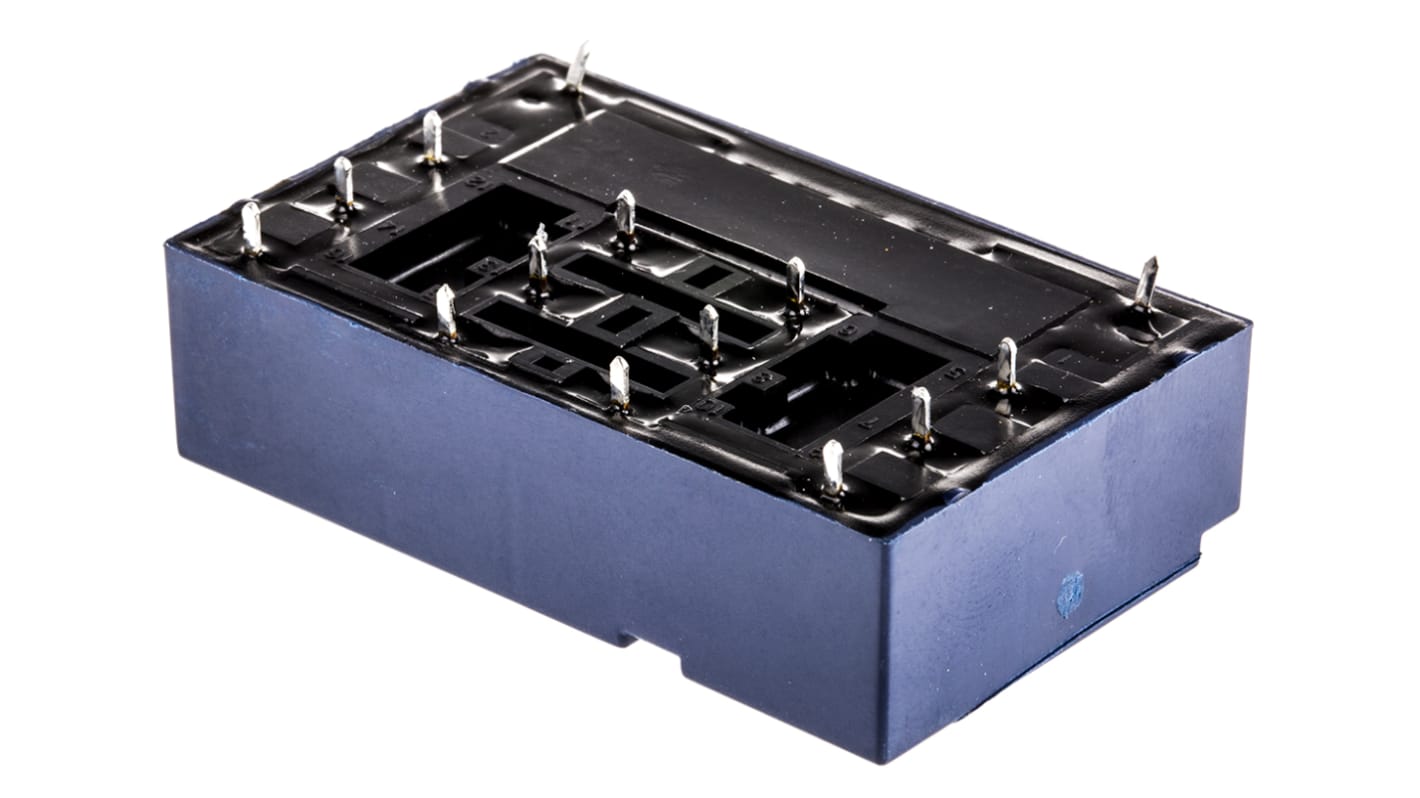

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 699-6180
- Mfr. Part No.:
- SFN4D-DC48V
- Brand:
- Panasonic
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Coil Voltage | 48V dc | |
| Mounting Type | PCB Mount | |
| Contact Configuration | 4PST, DPST | |
| Number of Poles | 6 | |
| Coil Resistance | 5.486 kΩ | |
| Switching Current | 8A | |
| Coil Power | 420mW | |
| Maximum Switching Current AC | 8 A | |
| Maximum Switching Current DC | 8 A | |
| Maximum Switching Voltage DC | 500V | |
| Maximum Switching Voltage AC | 500V | |
| Terminal Type | Through Hole | |
| Standards Met | EN 61810-1 | |
| Contact Material | Gold Plated | |
| Series | SFN4D | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +92°C | |
| Isolation Coil To Contact | 5kV rms | |
| Length | 53.3mm | |
| Height | 14.5mm | |
| Life | 10000000 (Electrical) cycles | |
| Depth | 33mm | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Coil Voltage 48V dc | ||
Mounting Type PCB Mount | ||
Contact Configuration 4PST, DPST | ||
Number of Poles 6 | ||
Coil Resistance 5.486 kΩ | ||
Switching Current 8A | ||
Coil Power 420mW | ||
Maximum Switching Current AC 8 A | ||
Maximum Switching Current DC 8 A | ||
Maximum Switching Voltage DC 500V | ||
Maximum Switching Voltage AC 500V | ||
Terminal Type Through Hole | ||
Standards Met EN 61810-1 | ||
Contact Material Gold Plated | ||
Series SFN4D | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +92°C | ||
Isolation Coil To Contact 5kV rms | ||
Length 53.3mm | ||
Height 14.5mm | ||
Life 10000000 (Electrical) cycles | ||
Depth 33mm | ||
- COO (Country of Origin):
- DE
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
