Sensata / Cynergy3 MS Series Cable Float Switch, 5 m Cable, NO/NC, 250 V ac Max, 110 V dc Max

View all Float Switches

Subtotal (1 unit)*

$102.81

(exc. GST)

$113.09

(inc. GST)

Add to Basket
Select or type quantity
Limited stock
  • Plus 66 left, shipping from 02 February 2026
  • Plus 439 left, shipping from 02 February 2026
  • Plus 8 left, shipping from 26 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +$102.81

*price indicative

RS Stock No.:
869-7609
Distrelec Article No.:
304-02-367
Mfr. Part No.:
MS20C
Brand:
Sensata / Cynergy3
Find similar products by selecting one or more attributes.
Select all

Brand

Sensata / Cynergy3

Product Type

Float Switch

Mount Type

Cable

Switch Output

NO/NC

Housing Material

Polypropylene

Cable Length

5m

Minimum Operating Temperature

0°C

Maximum Operating Temperature

45°C

Maximum AC Voltage

250V

Maximum DC Voltage

110V

Maximum Current

20A

Maximum Pressure

10bar

Standards/Approvals

WRAS

Series

MS

Hazardous Area Certification

No

COO (Country of Origin):
CN

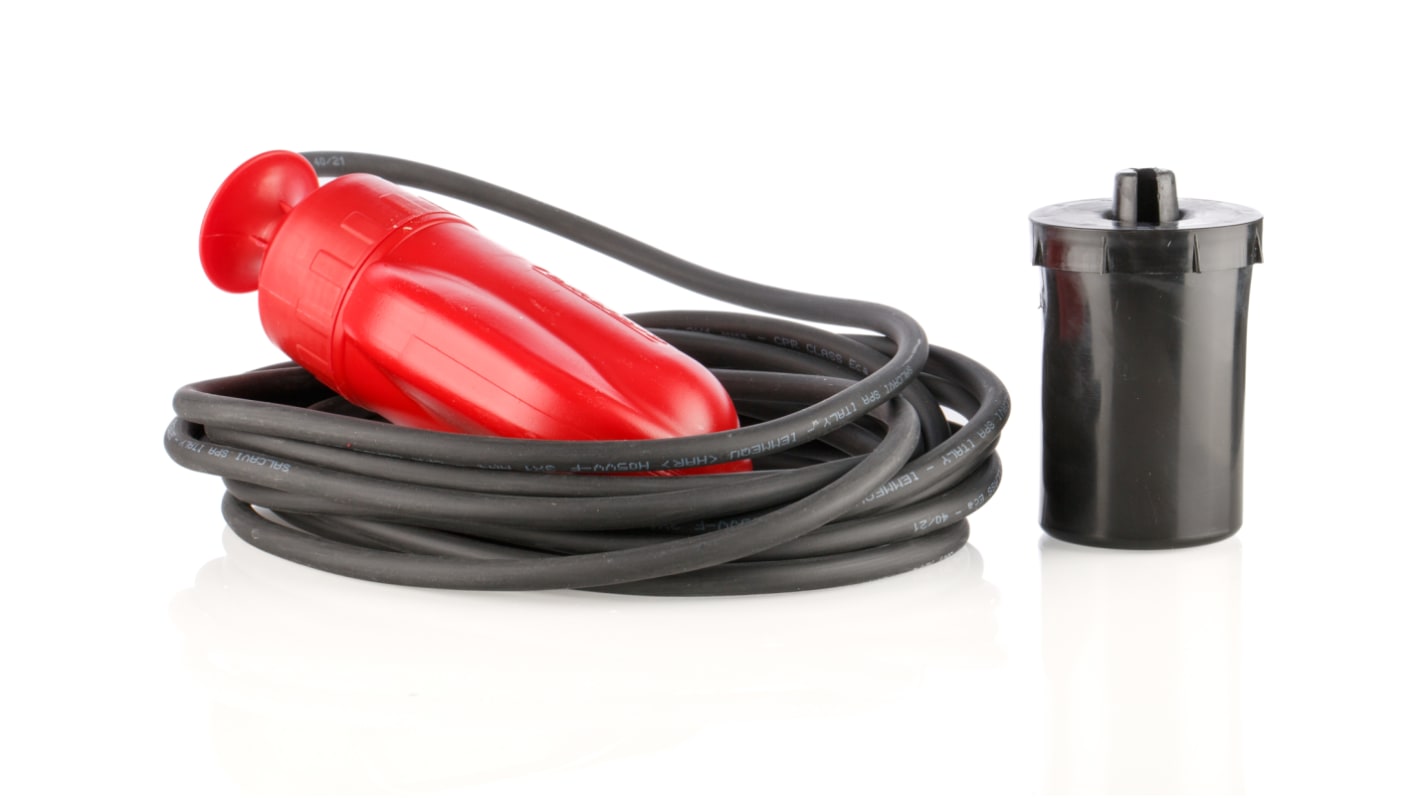

Sensata Cynergy3 Cable Mount Float Switch, Polypropylene, 5 m - MS Series - MS20C


To efficiently manage the level of liquid in large tanks, turn to this Sensata Cynergy3 float switch. It's suitable for cable mounting, so you can fix the float device in your tank and attach the accompanying 5 m cable to a power source. The casing is made from blow-moulded HDPE (high-density polyethylene) for durability and resistance to abrasion, ensuring a long service life. It's suitable for use at a depth of up to 100 m, making it a good choice for use with your submersible pumps and reservoirs.

Features and Benefits


• PVC (polyvinyl chloride) cable sheath for durability and flexibility

• Hermetically sealed casing to prevent water or air damage

• Versatile CO (changeover) mechanism enables you to switch between NO (normally open) and NC (normally closed) functions

• Wide operating temperature range of 0°C to +55°C for use in a range of applications

How does this float switch work?


The switch has a built-in microswitch that responds automatically to the drop or rise in fluid. This microswitch activates a steel ball that closes or opens the float switch.

Cynergy3 MS Series Float Switches


The Cynergy3 MS series of float switches are designed for large tanks, cisterns or reservoirs, and can be installed on submersible pumps. The MS float switches are capable of reaching 100m in depth.

MS float switches come with a 5m PVC cable.

What is it made from?

The flow switch case is made from blow-moulded HDPE (polyethylene). The unit is hermetically sealed. The cable is made from PVC and has a protective earth conductor. Part numbers ending with the letter “U” have PUR cables suitable for use in fuel oils.

What temperatures can it operate in?

All MS float switches operate from 0°C to +45°C / +32°F to 113°F.

What contact types are there?

The 5th digit of the part number represents the contact type:

A - Normally Open (N/O)

B - Nortmally Closed (N/C)

C - Changeover (C/O)

Approvals:

MS float switches have UL, VDE and CENELEC approvals. Part numbers ending with a "W" are WRAS approved cable coverings.

Versions Available:

(205-6910) MS10A

(338-9801) MS20A

(338-9794) MS10B

(869-7609) MS20C

(379-4001) MS10AW

(379-4017) MS10BW
