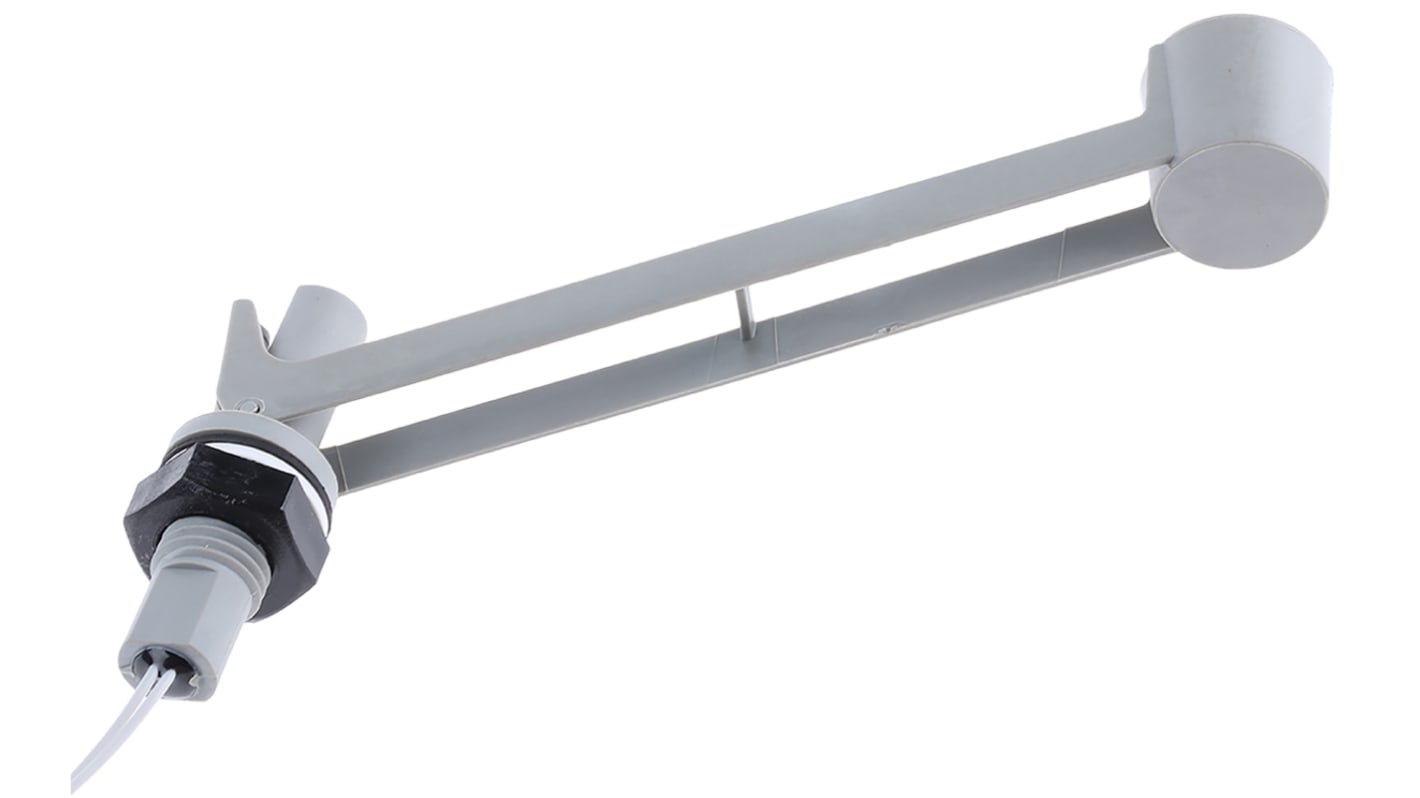

Sensata/Cynergy 3 RSF20 Series Direct Mounting Polyphenylene Sulfide Float Switch, Float, 500mm Cable, NC
- RS Stock No.:
- 361-1805
- Mfr. Part No.:
- RSF26Y050TG
- Brand:
- Sensata / Cynergy3
On back order for despatch 07/06/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each
$64.99
(exc. GST)
$71.49
(inc. GST)
| Units | Per unit |
| 1 - 5 | $64.99 |
| 6 - 11 | $63.42 |
| 12 + | $62.95 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 361-1805
- Mfr. Part No.:
- RSF26Y050TG
- Brand:
- Sensata / Cynergy3
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Drop Float Switch
A unique design switch which keeps the pivot area free from the fluid making them ideal for use in hot drink vending machines etc. Drop float types for monitoring upper level and extended drop float types for monitoring lower level in a tank.
Float positioned below the switch in N/C position
Switch opens well before liquid level reaches the float pivot
Polypropylene and PPS are WRAS approved, products for use in hot and cold water
UL recognised (excludes 228-1964)
Switch opens well before liquid level reaches the float pivot
Polypropylene and PPS are WRAS approved, products for use in hot and cold water
UL recognised (excludes 228-1964)
Note
Suitable for signal switching and for use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e.g. filament lamps) loads.
Supplied with
0.5m of PVC 16//0.2 cable (polypropylene and polysulfone ETFE) (PPS).
Specifications
Attribute | Value |
|---|---|
| Device Type | Float |
| Mounting Type | Direct Mounting |
| Switch Output | NC |
| Body Material | Polyphenylene Sulfide |
| Cable Length | 500mm |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +120°C |
| Maximum Current | 600 mA |
| Gasket Material | Silicone, Viton |
| Series | RSF20 |
