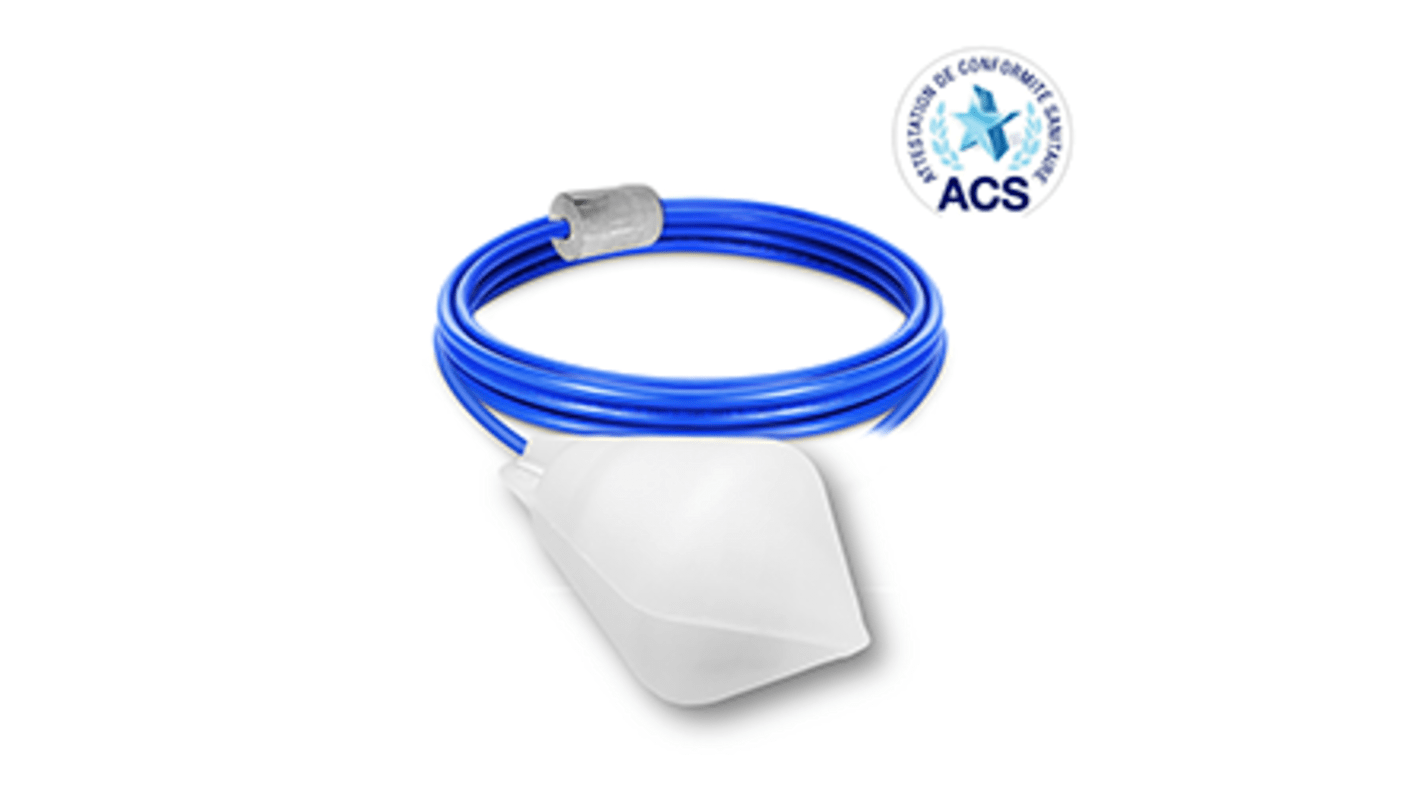

ATMI Cable Mount Copolymer Polypropylene Float Switch, Float, 5m Cable, SPDT, 250V ac Max, 125V dc Max
- RS Stock No.:
- 208-5469
- Mfr. Part No.:
- ATS165EPACS05M
- Brand:
- ATMI
View all Float Switches
On back order for despatch 03/01/2024, delivery within 10 working days from despatch date.
Price (ex. GST) Each
$467.35
(exc. GST)
$514.09
(inc. GST)
| units | Per unit |
| 1 + | $467.35 |
- RS Stock No.:
- 208-5469
- Mfr. Part No.:
- ATS165EPACS05M
- Brand:
- ATMI
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
This ACS certified float level switch is constructed with special components for use in drinking water applications.
Thanks to its big switching angle of 165°, the ATS 165 protects the pump's engine and the electrical panels from jerking. This float the ideal solution for level control in tower tanks, for example.
Also, it can detect the both high and low level in the same tank whose hysteresis does not exceed 1.5 meter.
This float level switch can be connected directly to pumps up to 1.5 HP or through a relay if working with high power pumps.
Thanks to its big switching angle of 165°, the ATS 165 protects the pump's engine and the electrical panels from jerking. This float the ideal solution for level control in tower tanks, for example.
Also, it can detect the both high and low level in the same tank whose hysteresis does not exceed 1.5 meter.
This float level switch can be connected directly to pumps up to 1.5 HP or through a relay if working with high power pumps.
Maximum pressure 3.5 bar
Maximum temperature 85°C
Protection index IP68
Maximum temperature 85°C
Protection index IP68
Specifications
| Attribute | Value |
| Device Type | Float |
| For Use With | Drinking water |
| Mounting Type | Cable Mount |
| Switch Output | SPDT |
| Body Material | Copolymer Polypropylene |
| Cable Length | 5m |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Maximum AC Voltage | 250V |
| Maximum DC Voltage | 125V |
| Maximum Pressure | 3.5bar |
