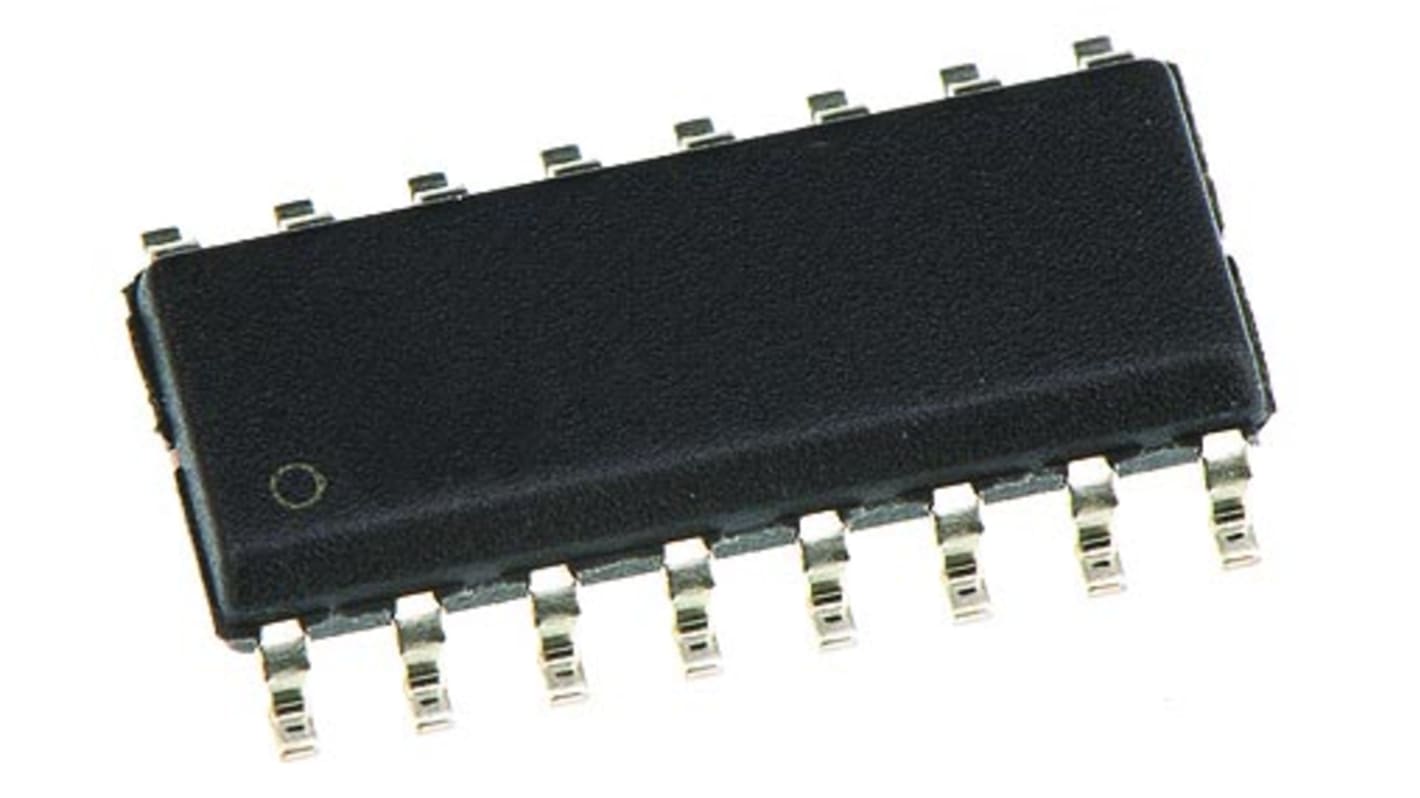

NXP 74HC174D,652 Hex D Type Flip Flop IC, 2 → 6 V, 16-Pin SOIC

  • RS Stock No. 865-1574
  • Mfr. Part No. 74HC174D,652
  • Manufacturer Nexperia
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TH
Product Details

74HC Family Flip-Flops & Latches, Nexperia

A range of NXP Flip-Flops and Latches from the 74HC Family of CMOS Logic ICs. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.

High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS

74HC Family

Specifications
Attribute Value
Logic Family 74HC
Logic Function D Type
Input Type CMOS
Output Signal Type Single Ended
Triggering Type Positive Edge
Polarity Non-Inverting
Mounting Type Surface Mount
Package Type SOIC
Pin Count 16
Set/Reset Master Reset
Number of Elements per Chip 6
Maximum Propagation Delay Time @ Maximum CL 250 ns@ 50 pF
Dimensions 10 x 4 x 1.45mm
Maximum Operating Temperature +125 °C
Propagation Delay Test Condition 50pF
Maximum Operating Supply Voltage 6 V
Height 1.45mm
Length 10mm
Width 4mm
Minimum Operating Supply Voltage 2 V
Minimum Operating Temperature -40 °C
400 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each (In a Tube of 50)
$ 0.771
(exc. GST)
$ 0.848
(inc. GST)
units
Per unit
Per Tube*
50 - 50
$0.771
$38.55
100 - 200
$0.766
$38.30
250 - 450
$0.76
$38.00
500 - 950
$0.755
$37.75
1000 +
$0.75
$37.50
*price indicative
