4.16.10/15/17/87 Series

These polypropylene film capacitors feature a self-healing metallised polypropylene dielectric. Constructed with a self-extinguishing plastic cover and case, a polyurethanic resin is used to seal the capacitive element.

Plastic case with stud
Termination via double insulated two core lead
Non-inductive winding
Low losses
Short circuits avoided due to self healing properties
Compact size
No leakage risk

Voltage for 4.16.10 Series:
400 V - 10000h cl. B - 25/85/21
425 V - 10000h cl. B - 25/85/21
450 V - 3000h cl. C 25/85/21
475 V - 3000h cl. c - 25/85/21
500 V - 1000h cl. D - SI120/20

Voltage for 4.16.15 Series:
400 V - 10000h cl. B - 25/100/21
425 V - 30000h cl. A - 25/85/21
475 V - 10000h cl. B - 25/85/21
500 V - 3000h cl. C - 25/85/21

Voltage for 4.16.87 Series:
450 V - 10000h cl. B - 25/85/21

Voltage for 4.16.17 Series:
425 V - 30000h cl. A - 25/85/21
475 V - 10000h cl. B - 25/85/21
500 V - 3000h cl. C - 25/85/21

Standards

VDE 560-8, CEI 33-3, SEV 1029

Units	Per unit
1 - 9	$13.19
10 - 49	$12.80
50 - 99	$12.49
100 +	$12.13

Select all	Attribute	Value
	Brand	Ducati Energia
	Capacitance	10µF
	Voltage	400 → 500V ac
	Mounting Type	Plug In
	Tolerance	±5%
	Series	4.16.17
	Lead Length	2.8mm
	Height	70mm
	Dimensions	36 x 70mm
	Dielectric	Polypropylene
	Terminal Type	Wire
	Dissipation Factor	<20%
	Maximum Operating Temperature	+85°C
	Minimum Operating Temperature	-25°C

	Select all
	Brand Ducati Energia
	Capacitance 10µF
	Voltage 400 → 500V ac
	Mounting Type Plug In
	Tolerance ±5%
	Series 4.16.17
	Lead Length 2.8mm
	Height 70mm
	Dimensions 36 x 70mm
	Dielectric Polypropylene
	Terminal Type Wire
	Dissipation Factor <20%
	Maximum Operating Temperature +85°C
	Minimum Operating Temperature -25°C

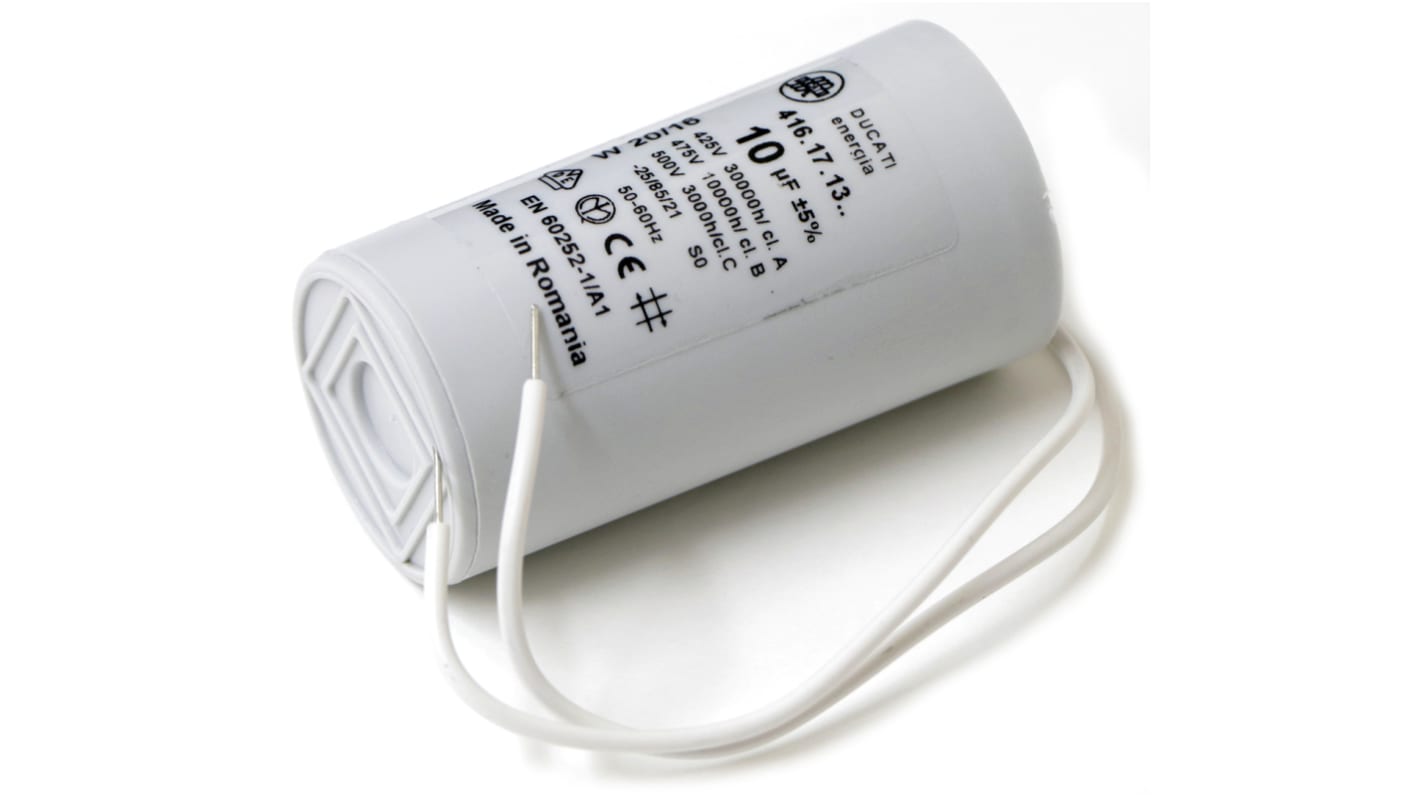

Ducati Energia 4.16.17 Polypropylene Film Capacitor, 400 → 500V ac, ±5%, 10μF, Plug In
