- RS Stock No.:
- 121-6996
- Mfr. Part No.:
- NE8MX6-B
- Brand:
- Neutrik
On back order for despatch 26/09/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each
$35.56
(exc. GST)
$39.12
(inc. GST)
Units | Per unit |
1 - 9 | $35.56 |
10 - 49 | $34.94 |
50 + | $33.72 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 121-6996
- Mfr. Part No.:
- NE8MX6-B
- Brand:
- Neutrik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- LI
Product Details

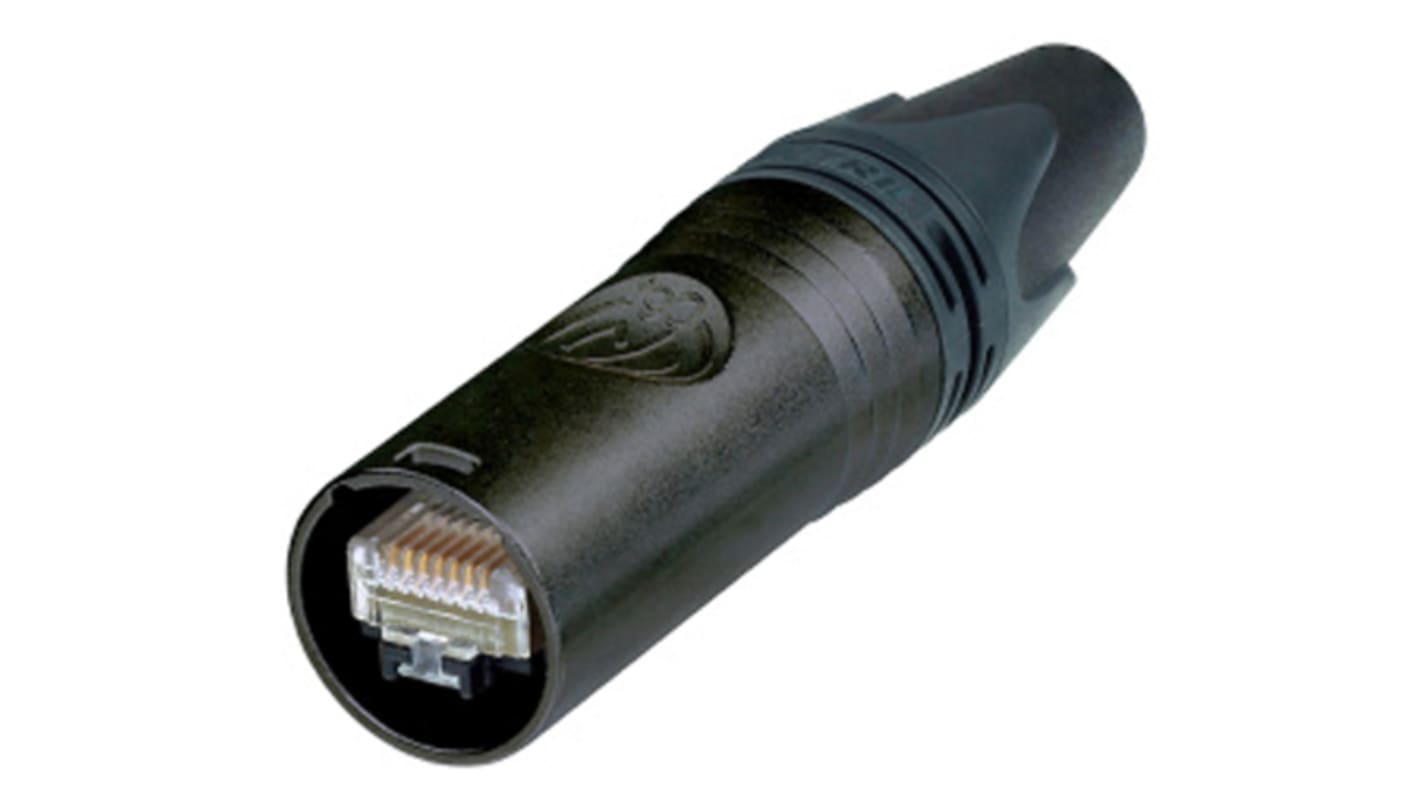

etherCON CAT6A RJ Cable Connector
From Neutrik, this etherCON cable connector has a CAT6A RJ45 Plug contained in a robust metal shell. With a chuck type strain relief and rugged latch lock connection system, this RJ connector will provide a high degree of ingress protection when mated. Convenient and sturdy, the etherCON RJ connection system is ideal for custom network solutions.
Features and Benefits
Suitable for cable size AWG 24 to AWG 22/1
IP65 Protection when mated
Intermateable with etherCON CAT5 Range
IP65 Protection when mated
Intermateable with etherCON CAT5 Range
Neutrik RJ Plugs, Sockets and Accessories
Specifications
Attribute | Value |
---|---|
Gender | Male |
Ethernet Connector Type | RJ45 Connector |
LAN Category | Cat6a |
Mounting Type | Cable Mount |
Number of Ways | 8 |
Shield Type | Unshielded |
Orientation | Straight |
IP Rating | IP65 |
Length | 76.5mm |
Width | 19.05 (Dia.)mm |
Series | etherCON |
Contact Material | Spring Steel |
Contact Plating | Gold |
