Belden 7812ENH Cat6 Ethernet Cable, 304 m, Blue, Unshielded Unscreened Low Smoke Zero Halogen Sheath

RS Stock No.:: 368-4487
Distrelec Article No.:: 304-34-327
Mfr. Part No.:: 7812ENH
Brand:: Belden

Belden 7812ENH Cat6 Ethernet Cable, 304 m, Blue, Unshielded Unscreened Low Smoke Zero Halogen Sheath

Subtotal (1 reel of 304 metres)*

$861.58

(exc. GST)

$947.74

(inc. GST)

Add 1 reel to get free delivery

Orders below $60.00 (exc. GST) cost $12.95.

In Stock

10 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	$861.58	$2.834

*price indicative

RS Stock No.:: 368-4487
Distrelec Article No.:: 304-34-327
Mfr. Part No.:: 7812ENH
Brand:: Belden

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Belden
	Product Type	Ethernet Cable
	Series	7812ENH
	LAN Category	Cat6
	Cable Length	304m
	Shield Type	Unshielded
	Screened/Unscreened	Unscreened
	Conductor Type	Solid
	Jacket Colour	Blue
	Jacket Material	Low Smoke Zero Halogen
	Minimum Operating Temperature	-30°C
	Maximum Operating Temperature	60°C
	Fire Behaviour	LSZH, FRNC
	Cable CSA	0.2 mm²
	Standards/Approvals	European standard: EN 50173-1 (2002) and EN 50173-1 Amendment 1 (2009), International standard: ISO/IEC 11801 2nd edition (2002) and ISO/IEC 11801 Amendment 2 (2010), U.S. Standards: ANSI/TIA/EIA 568-B.2-1 (2002)
	Conductor Material	Copper
	Voltage	48 V
	Outside Diameter	6.5 mm
	Number of Cores	8

	Select all
	Brand Belden
	Product Type Ethernet Cable
	Series 7812ENH
	LAN Category Cat6
	Cable Length 304m
	Shield Type Unshielded
	Screened/Unscreened Unscreened
	Conductor Type Solid
	Jacket Colour Blue
	Jacket Material Low Smoke Zero Halogen
	Minimum Operating Temperature -30°C
	Maximum Operating Temperature 60°C
	Fire Behaviour LSZH, FRNC
	Cable CSA 0.2 mm²
	Standards/Approvals European standard: EN 50173-1 (2002) and EN 50173-1 Amendment 1 (2009), International standard: ISO/IEC 11801 2nd edition (2002) and ISO/IEC 11801 Amendment 2 (2010), U.S. Standards: ANSI/TIA/EIA 568-B.2-1 (2002)
	Conductor Material Copper
	Voltage 48 V
	Outside Diameter 6.5 mm
	Number of Cores 8

COO (Country of Origin):: NL

Belden Cat6 Ethernet Cable, 23AWG - 7812ENH

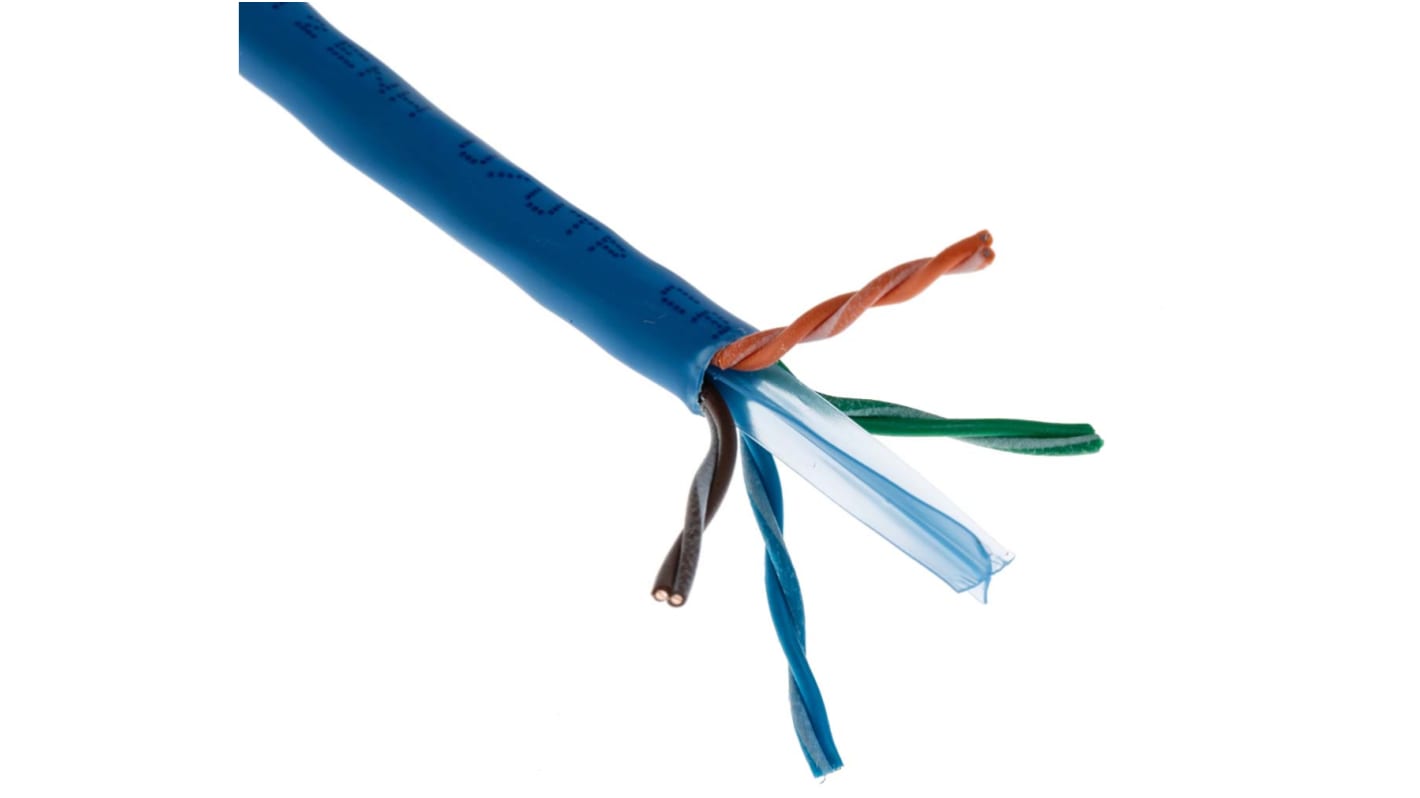

Efficiently transfer information between your devices with this cat6 Ethernet cable from Belden. Its blue outer sheath is made of LSZH material, which means it won't release harmful substances in the event of a fire, making it suitable for use in public places. As the four pairs of conductors are twisted together, electromagnetic interference and crosstalk are minimised and data transmission is smooth.

Features & Benefits

• Wide operating temperature range of -30°C to +60°C for use in demanding settings

• Bare copper conductors provide high conductivity and corrosion resistance

• Voltage rating of 72V means it's suitable for low-powered applications

• Standard colour-coded wires allow easy identification in circuits

Applications

• Computer networks

• Telecommunication industries

• Automation equipment

What's the current rating of this cable?

This cable has a rating of 1.5A, which minimises heat dissipation.

Standards

TIA/EIA 568B1; ISO/IEC IS 11801; EN50173
