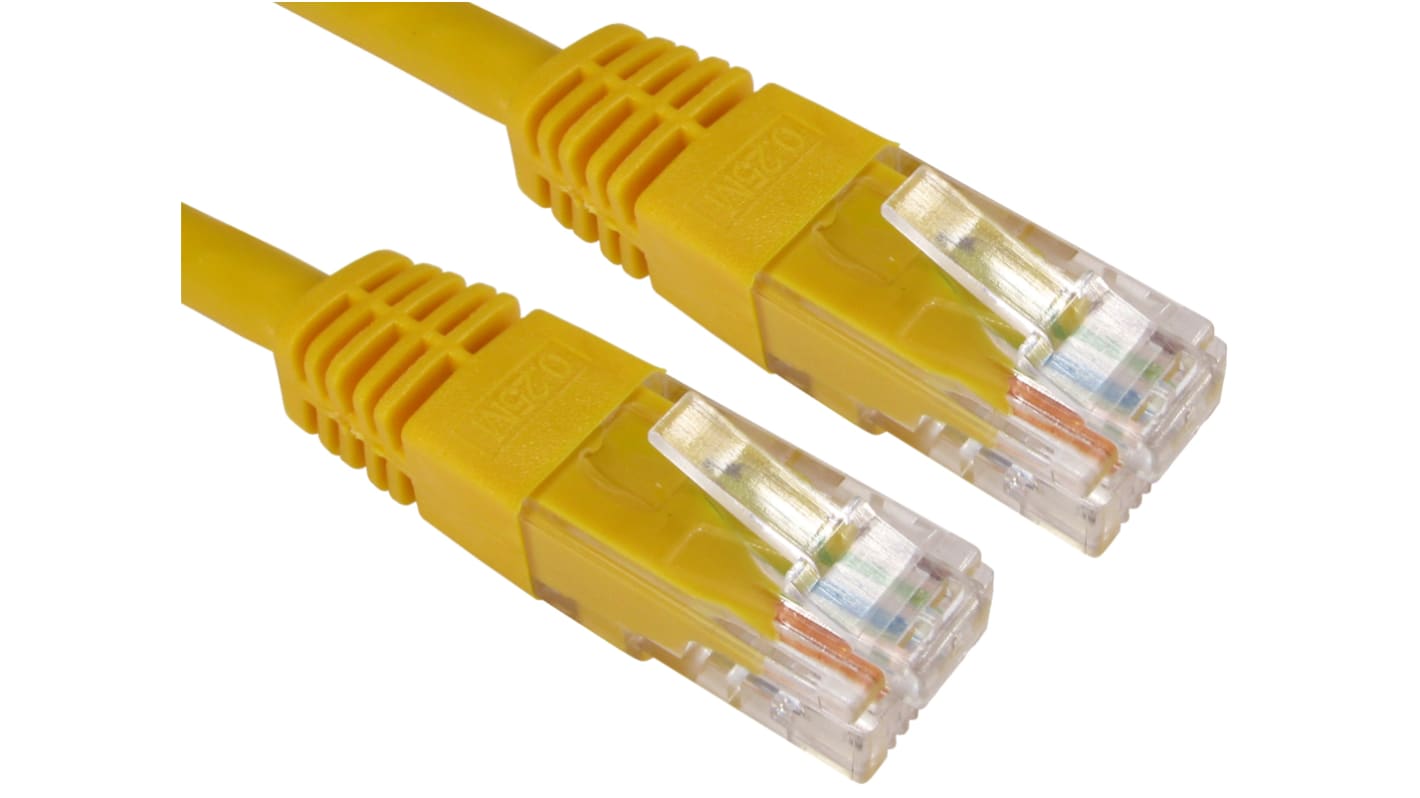

RS PRO, 20m Cat6, Yellow RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath
- RS Stock No.:
- 264-6571
- Brand:
- RS PRO
Subtotal (1 unit)**
$57.82
(exc. GST)
$63.60
(inc. GST)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $60.00 ex GST
Units | Per unit |
|---|---|
| 1 + | $57.82 |
**price indicative
- RS Stock No.:
- 264-6571
- Brand:
- RS PRO
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Length | 20m | |
| LAN Category | Cat6 | |
| Terminated/Unterminated | Terminated | |
| Shield Type | UTP | |
| Connector 1 Gender | Male | |
| Connector 1 Number of Contacts | 8 | |
| Connector 1 Orientation | Straight | |
| Connector 1 | RJ45 | |
| Connector 2 Gender | Male | |
| Connector 2 Number of Contacts | 8 | |
| Connector 2 | RJ45 | |
| Connector 2 Orientation | Straight | |
| Shielded/Unshielded | Unshielded | |
| Sheath Colour | Yellow | |
| Outer Sheath Material | PVC | |
| Wiring Configuration | Straight Through | |
| Fire Behaviour | CM Rated | |
| Core Strands | 7/0.18 | |
| Conductor Strand Type | Stranded | |
| Number of Strands | 8 | |
| American Wire Gauge | 24AWG | |
| Outer Diameter | 5.5mm | |
| Voltage Rating | 80V | |
| Cable Shape | Round | |
| Standards Met | EN 50288, ETL/3P Verified, ISO/IEC 11801, TIA/EIA-563-B.2-1 | |
| Current Rating | 960mA | |
| Capacitance | 5.6nF/100m | |
| Cross Sectional Area | 0.201 to 0.253mm² | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Length 20m | ||
LAN Category Cat6 | ||
Terminated/Unterminated Terminated | ||
Shield Type UTP | ||
Connector 1 Gender Male | ||
Connector 1 Number of Contacts 8 | ||
Connector 1 Orientation Straight | ||
Connector 1 RJ45 | ||
Connector 2 Gender Male | ||
Connector 2 Number of Contacts 8 | ||
Connector 2 RJ45 | ||
Connector 2 Orientation Straight | ||
Shielded/Unshielded Unshielded | ||
Sheath Colour Yellow | ||
Outer Sheath Material PVC | ||
Wiring Configuration Straight Through | ||
Fire Behaviour CM Rated | ||
Core Strands 7/0.18 | ||
Conductor Strand Type Stranded | ||
Number of Strands 8 | ||
American Wire Gauge 24AWG | ||
Outer Diameter 5.5mm | ||
Voltage Rating 80V | ||
Cable Shape Round | ||
Standards Met EN 50288, ETL/3P Verified, ISO/IEC 11801, TIA/EIA-563-B.2-1 | ||
Current Rating 960mA | ||
Capacitance 5.6nF/100m | ||
Cross Sectional Area 0.201 to 0.253mm² | ||
