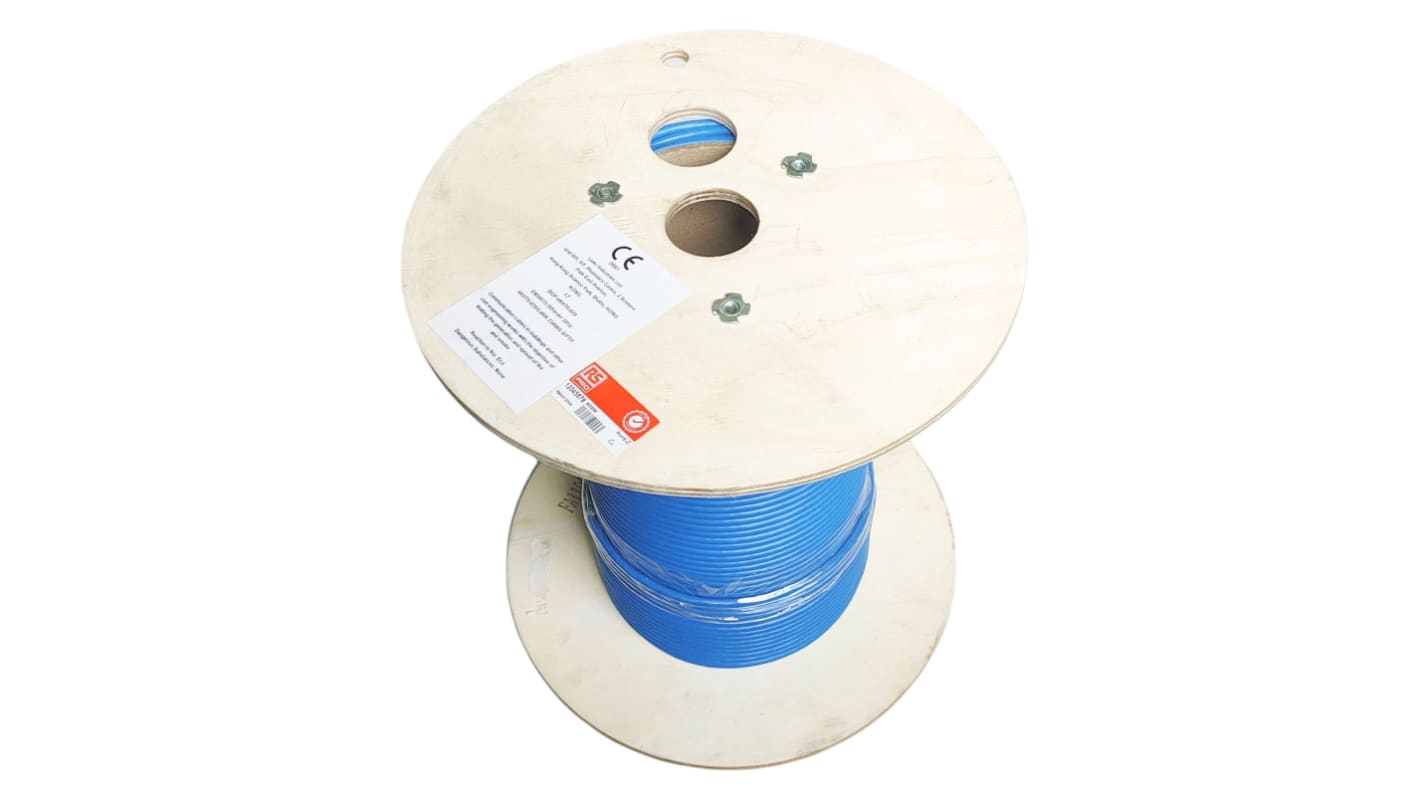

RS PRO Cat7 Ethernet Cable, S/FTP, Blue LSZH Sheath, 100m, Low Smoke Zero Halogen (LSZH)

RS Stock No.:: 211-5760
Brand:: RS PRO

RS PRO Cat7 Ethernet Cable, S/FTP, Blue LSZH Sheath, 100m, Low Smoke Zero Halogen (LSZH)

2 In AU stock for next working day delivery

23 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) 1 Reel of 100 Metre(s)

$646.52

(exc. GST)

$711.17

(inc. GST)

Reel(s)	Per Reel	Per Metre*
1 +	$646.52	$6.465
*price indicative

RS Stock No.:: 211-5760
Brand:: RS PRO

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

RS PRO 4 Pair 100m Screened Blue Multicore Cable

Introducing the range of RS PRO 8 core, 4 pair screened multicore cables. The cables feature a multicore 8/0.02mm core strand construction making them perfect for applications that require multiple cores to be wired, whilst keeping them organised and safe. By using this RS PRO high-quality range of multicore cables, tripping hazards can be drastically reduced while improving the overall appearance of electrical equipment, especially in areas where there is little space, or the cable installation is visible to individuals. The strands are housed in a low smoke zero halogen (LSZH) sheath and foam PE insulation offering excellent protection and reliability, whilst maintaining high performance. RS PRO multicore screened industrial cables are made with high-quality solid copper conductors and are available in a variety of lengths and cores to suit a wide range of applications.

Features and Benefits

This RS PRO multicore cable has 8 0.02mm² cross-sectional area core strands

Made from LSZH outer jacket and Foam PE insulation to provide a strong and reliable cable

4 pairs are colour coded for easy identification

Voltage rating of 300V

Operating temperature: -20 °C to +75 °C

High-quality solid bare copper conductor

Multi-core cable insulation resistance is 5000MO.km

Screened layer offers a layer of protection to reduce the effects of electromagnetic interference which can affect performance

Applications

Screened multicore cables are electrical cables that have more cores than standard power or coaxial cables and are available in various lengths and cores, dependent on the applications they are being used for. They have an extra layer of protection above the insulation covered by a metallic screen and an outer cover that reduces the effects of electromagnetic interference. They are ideal for using when there is little space or for organising cable installations that require multiple cabling connections, especially within industrial or entertainment applications. Multicore cables are found in many different environments, for example:
Entertainment and audio industry
Machines and factory control equipment
Large control pads
DIN-Rail terminals
Conveyor belts
Data and networking
Security and safety

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Specifications

Attribute	Value
Length	100m
LAN Category	Cat7
Terminated/Unterminated	Unterminated
Shield Type	S/FTP
Shielded/Unshielded	Shielded
Sheath Colour	Blue
Outer Sheath Material	LSZH
Fire Behaviour	Low Smoke Zero Halogen (LSZH)
Standards Met	RoHS Compliant
Cable Shape	Round
Conductor Strand Type	Solid
Number of Strands	8
Capacitance	56pF/m
Voltage Rating	300 V
American Wire Gauge	23 AWG
