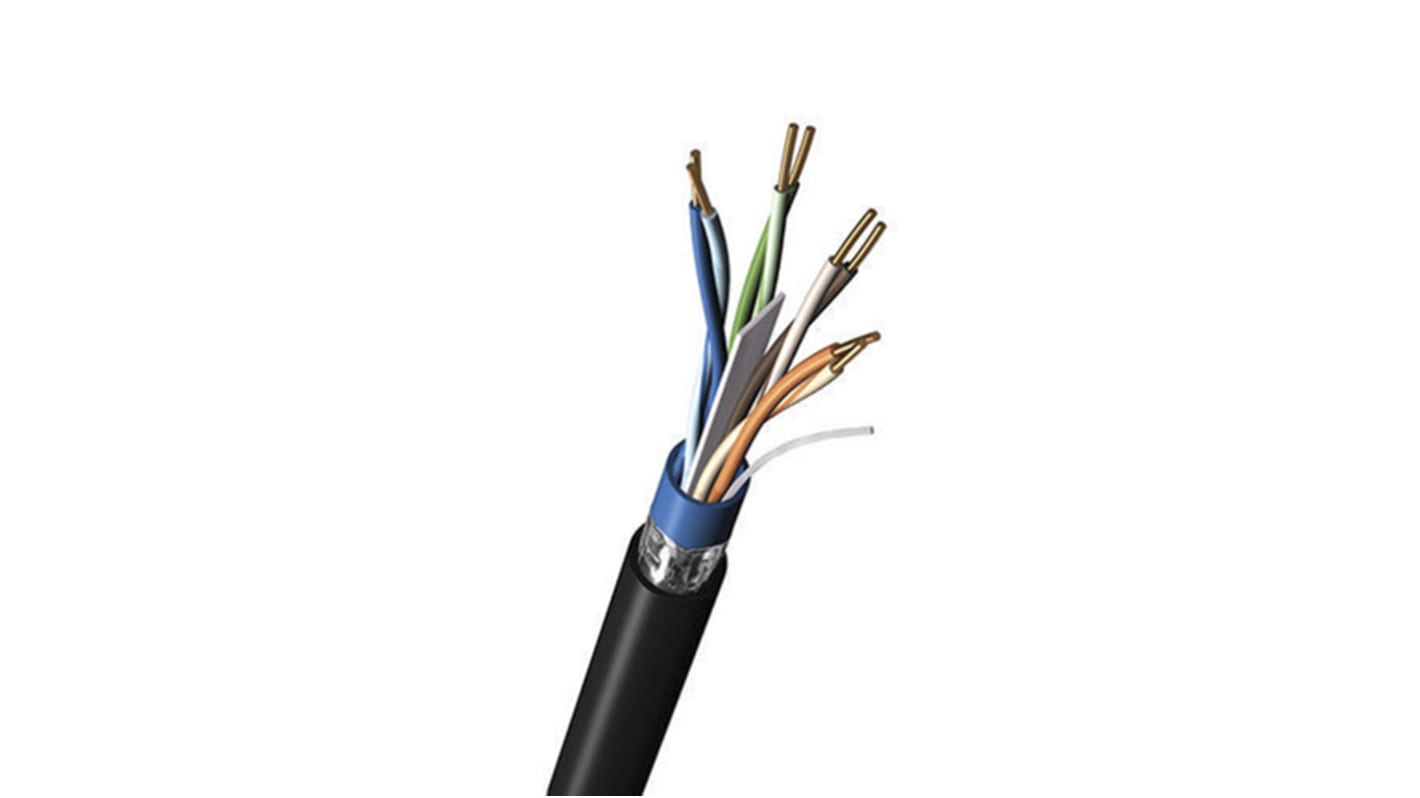

Belden 7953A Cat6 Ethernet Cable, Shielded Screened, 305 m, Black PVC
- RS Stock No.:
- 175-6569
- Mfr. Part No.:
- 7953A 0101000
- Brand:
- Belden
Subtotal (305 metres, on reels of 305)*
$1,792.17
(exc. GST)
$1,971.39
(inc. GST)
FREE delivery for orders over $80.00 ex GST
Temporarily out of stock
- 2 unit(s) shipping from 23 October 2026
- Plus 1 unit(s) shipping from 20 November 2026
- Plus 3 unit(s) shipping from 11 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | $1,792.17 | $5.876 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 100 Metre(s)
$334.92
(exc. GST)
$368.41
(inc. GST)
- RS Stock No.:
- 175-6569
- Mfr. Part No.:
- 7953A 0101000
- Brand:
- Belden
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Product Type | Ethernet Cable | |
| Series | 7953A | |
| LAN Category | Cat6 | |
| Cable Length | 305m | |
| Terminated/Unterminated | Unterminated | |
| Shield Type | Shielded | |
| Screened/Unscreened | Screened | |
| Conductor Type | Solid | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Black | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 75°C | |
| Fire Behaviour | UL1666 Riser, FT4, IEC 60332-1-2 | |
| Standards/Approvals | IEC 60332-1-2 | |
| Cable CSA | 23AWG | |
| Conductor Material | Copper | |
| Voltage | 600V ac | |
| Number of Cores | 8 | |
| Outside Diameter | 8.38mm | |
| Select all | ||
|---|---|---|
Brand Belden | ||
Product Type Ethernet Cable | ||
Series 7953A | ||
LAN Category Cat6 | ||
Cable Length 305m | ||
Terminated/Unterminated Unterminated | ||
Shield Type Shielded | ||
Screened/Unscreened Screened | ||
Conductor Type Solid | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Black | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 75°C | ||
Fire Behaviour UL1666 Riser, FT4, IEC 60332-1-2 | ||
Standards/Approvals IEC 60332-1-2 | ||
Cable CSA 23AWG | ||
Conductor Material Copper | ||
Voltage 600V ac | ||
Number of Cores 8 | ||
Outside Diameter 8.38mm | ||
- COO (Country of Origin):
- MX
Belden Cat6 Ethernet Cable, Twisted Pair Construction, Stranded Copper Conductors - DataTuff Series - 7953A 0101000
Need a tough cookie to connect up your devices? Use this Ethernet cable from Belden. It's double-jacketed in PVC, meaning it resists oil and sunlight, so can be used in demanding environments both indoors and out. The conductors are formed in twisted and bonded pairs to keep the wires stable and data transfer reliable in noisy industrial conditions. Capable of a 100mm bend radius and 18kg tension, it handles the push and pull of installation and machine processes.
Features & Benefits
• Maximum voltage rating of 600V for high-power applications
• Wide operating temperature range between -40°C and +90°C, so handles harsh conditions
• Length of 305m for long cable runs
Applications
• Motor control
• Industrial automation
• Distribution cabinets
• Security systems
What category is this Ethernet cable?
As a Cat6 Ethernet cable, it has a 250MHz frequency to give it a wide bandwidth and enable the speeds up to 1,000Mbps needed for swift data transfer.
