Schneider Electric 3 Phase LCD Energy Meter, Type Electromechanical

Schneider Electric PM8000 series meters help you improve energy efficiency, sub-bill or allocate costs and improve productivity. These improvements are done by tracking consumption and identifying conditions that could pose risks to equipment and processes.
The power meters are easy to install and have simple networking, making energy information accessible, while integration with StruxureWare applications makes information relevant and actionable.

• Panel or DIN Rail mounting (depending on model)
• Variety of models with or without display
• Fast configuration due to various form factors, pluggable connectors and a free setup application
• Colour, graphical, high-resolution display offers local data access with multi-language support
• High-accuracy energy metering
• Minimum/maximum data logging
• Historical trend logging for energy, demand, power factor or any other parameter
• Event logging
• Configurable alarms; to trigger recording, perform control, send email or text messages
• Dual-port Ethernet supports daisy-chaining, redundant loops and multiple protocols
• CT and VT polarity reversible via front panel, web page or software
• Customisable on-board web pages
• Email ’push’ historical data files
• RS485 serial port
• Ethernet-to-serial gateway
• Modbus master functionality
• Secure, configurable user accounts

Up to four, field-installable I/O modules can be used per meter:
913-9652- 6 digital input & 2 relay output

This energy meter is a three-phase electromechanical device designed for precise measurements in various industrial environments. The dimensions of the meter are 90.5mm in width, 90.5mm in height, and 90.8mm in depth, allowing for easy installation on a DIN rail. With a wide measurement range and robust design, it is well-suited for comprehensive power monitoring.

• LCD display for clear visibility of power metrics
• Accurate energy measurements with ±0.1% current and voltage
• Supports voltage measurements from 100 to 690V AC
• Programmemable logic and mathematical functions for tailored analysis
• Provides harmonic distortion and waveform capture insights
• Pulse output for easy integration into energy management systems

• Ideal for detailed industrial energy monitoring
• Used with power factor and reactive power assessments
• Supports power quality analysis and compliance reporting
• Suitable for enhancing energy management systems in facilities

This device can measure a range of voltage from 100 to 690 V AC, along with current measurements from 50 mA to 10 A, making it versatile for various applications.

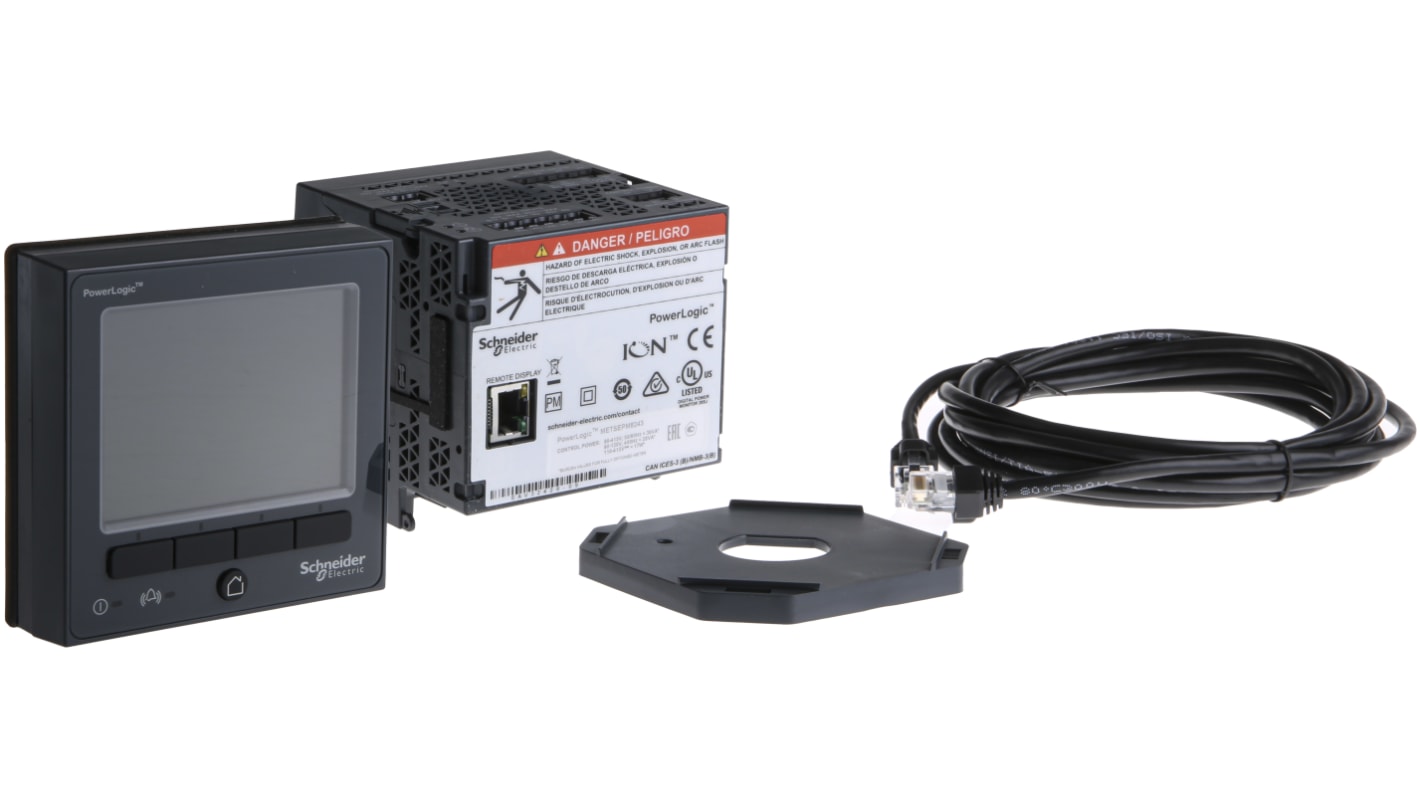

The remote LCD display, with a resolution of 320 x 240 pixels, enables straightforward monitoring of key metrics such as energy consumption, voltage, and current in real-time.

The energy meter provides high accuracy for both current and voltage measurements, ensuring reliable data for compliance and energy audits while facilitating effective energy management strategies.
