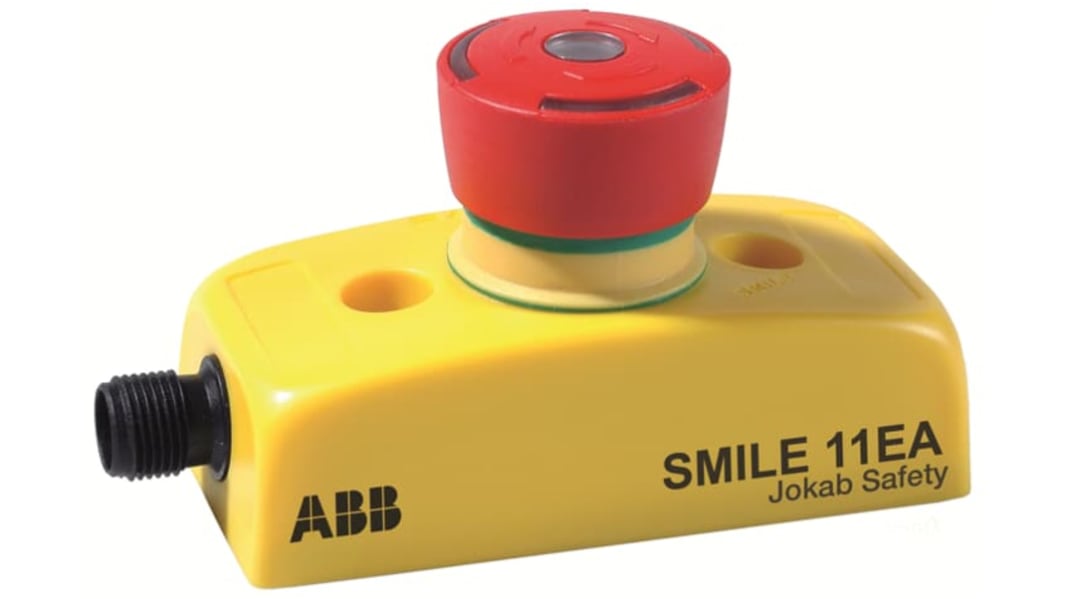

ABB Smile Tina, Red, Twist to Reset 32mm Mushroom Head Emergency Button

  • RS Stock No. 733-2499
  • Mfr. Part No. 2TLA030050R0000
  • Manufacturer ABB
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): SE
Product Details

Smile Tina E-Stop for Vital/Pluto

Smile Tina from ABB is very easy to install, especially on aluminium extrusions. There are three different versions available, either with one or two M12 connections or cable. Two M12 connectors are used to enable the connection of E-stops in series, which is often used with dynamic safety circuits fulfilling safety category 4. On the top of the Smile Tina E-stop unit, an LED indicates the actual status according to the dynamic system. Smile Tina from ABB is intended for use in safety circuits in accordance with EN 60204-1.

LED indication
Housing material: Polyamide PA66, Macromelt, polybutylenterephthalate PBT, Polypropene PP, UL 94 V0
Operating temperature range: -10 → +55 °C
Protection class rating of IP65
Time delay t (in/out): t < 70 μs
Conforms to safety category 4
Actuator force (E-stop button): 22 +/- 4N
Actuator travel: ∼ 4 mm to latch
Connector: M12 5-pole male
Mechanical life: > 50,000 operations
Impact resistance (half sinusoidal): Max. 150 m/s2, pulse width 11 ms, 3-axis (as per EN IEC 60068-2-27)
Vibration resistance (half sinusoidal): Max. 50m/s2 at 10 Hz, 10 cycles, 3-axis (as per EN IEC 60068-2-6)

Standards

EN ISO 12100-1, EN ISO 12100-2, EN 60204-1, EN 954-1, EN ISO 13849-1, EN 62061, IEC 60947-5-1

Approvals

CE, TUV

Emergency Stop Pushbutton

Specifications
Attribute Value
Mounting Type Surface Mount
Reset Method Twist to Reset
Normal State Configuration NC
Auxiliary Contacts No
IP Rating IP65
Supply Voltage 24 V dc
Head Style Mushroom
Illuminated No
Range Smile Tina
Head Diameter 32mm
Dimensions 84 x 40 x 52 mm
Push Button Material Plastic
Depth 52mm
Length 84mm
Series 2TLA
Colour Red
Width 40mm
Housing Material Plastic
24 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 148.89
(exc. GST)
$ 163.78
(inc. GST)
units
Per unit
1 +
$148.89
