Microchip 24FC512-I/SN, 512 kB Serial EEPROM, 1000 ns 8-Pin SOIC Serial-I2C
- RS Stock No.:
- 823-1192
- Mfr. Part No.:
- 24FC512-I/SN
- Brand:
- Microchip

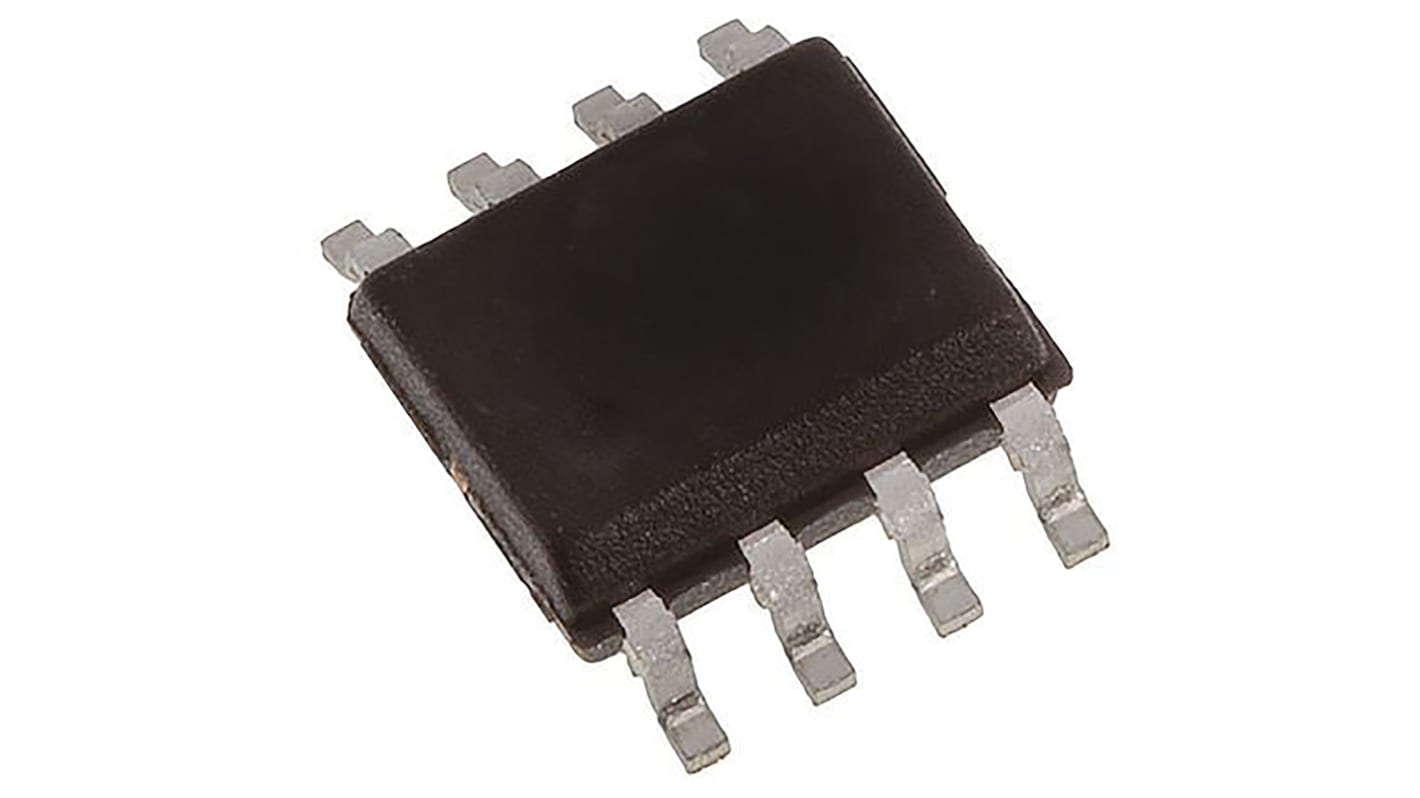

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 5 units)*
$13.03
(exc. GST)
$14.335
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- Plus 85 unit(s) shipping from 05 January 2026
- Plus 6,200 unit(s) shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | $2.606 | $13.03 |
| 25 - 45 | $2.538 | $12.69 |
| 50 + | $2.506 | $12.53 |
*price indicative
- RS Stock No.:
- 823-1192
- Mfr. Part No.:
- 24FC512-I/SN
- Brand:
- Microchip
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Memory Size | 512kB | |
| Product Type | Serial EEPROM | |
| Interface Type | Serial-I2C | |
| Package Type | SOIC | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Organisation | 64k x 8 Bit | |
| Maximum Clock Frequency | 1MHz | |
| Minimum Supply Voltage | 1.7V | |
| Maximum Supply Voltage | 5.5V | |
| Number of Bits per Word | 8 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 6 mm | |
| Height | 1.75mm | |
| Length | 4.9mm | |
| Series | 24FC512 | |
| Standards/Approvals | No | |
| Automotive Standard | AEC-Q100 | |
| Data Retention | 200year | |
| Distrelec Product Id | 304-44-563 | |
| Supply Current | 5mA | |
| Maximum Random Access Time | 1000ns | |
| Number of Words | 64 | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Memory Size 512kB | ||
Product Type Serial EEPROM | ||
Interface Type Serial-I2C | ||
Package Type SOIC | ||
Mount Type Surface | ||
Pin Count 8 | ||
Organisation 64k x 8 Bit | ||
Maximum Clock Frequency 1MHz | ||
Minimum Supply Voltage 1.7V | ||
Maximum Supply Voltage 5.5V | ||
Number of Bits per Word 8 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Width 6 mm | ||
Height 1.75mm | ||
Length 4.9mm | ||
Series 24FC512 | ||
Standards/Approvals No | ||
Automotive Standard AEC-Q100 | ||
Data Retention 200year | ||
Distrelec Product Id 304-44-563 | ||
Supply Current 5mA | ||
Maximum Random Access Time 1000ns | ||
Number of Words 64 | ||
24AA512/24FC512/24LC512 I²C™ Serial EEPROM
EEPROM Serial Access - Microchip
