Microchip 24FC02-I/ST, 2 kB EEPROM, 450 ns 8-Pin TSSOP 2 Wire I2C
- RS Stock No.:
- 734-449
- Mfr. Part No.:
- 24FC02-I/ST
- Brand:
- Microchip
N

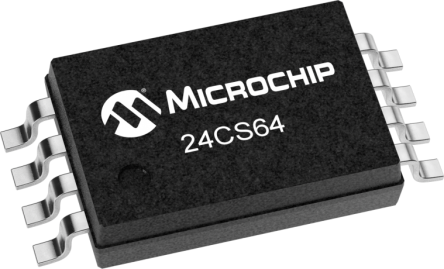

This image is representative of the product range
Subtotal (1 box of 1500 units)*
$561.00
(exc. GST)
$616.50
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Temporarily out of stock
- Shipping from 10 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 1500 + | $0.374 | $561.00 |
*price indicative
- RS Stock No.:
- 734-449
- Mfr. Part No.:
- 24FC02-I/ST
- Brand:
- Microchip
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | EEPROM | |
| Memory Size | 2kB | |
| Interface Type | 2 Wire I2C | |
| Package Type | TSSOP | |
| Mount Type | Surface Mount | |
| Pin Count | 8 | |
| Organisation | 256 x 8 | |
| Maximum Clock Frequency | 1MHz | |
| Minimum Supply Voltage | 1.7V | |
| Number of Bits per Word | 8 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Series | 24FC02 | |
| Automotive Standard | No | |
| Data Retention | 200year | |
| Supply Current | 1mA | |
| Maximum Random Access Time | 450ns | |
| Number of Words | 256 | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type EEPROM | ||
Memory Size 2kB | ||
Interface Type 2 Wire I2C | ||
Package Type TSSOP | ||
Mount Type Surface Mount | ||
Pin Count 8 | ||
Organisation 256 x 8 | ||
Maximum Clock Frequency 1MHz | ||
Minimum Supply Voltage 1.7V | ||
Number of Bits per Word 8 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Series 24FC02 | ||
Automotive Standard No | ||
Data Retention 200year | ||
Supply Current 1mA | ||
Maximum Random Access Time 450ns | ||
Number of Words 256 | ||
The Microchip EEPROM ensures reliable data storage and retrieval. It is designed to meet the needs of various applications requiring efficient and secure data management.
Offers up to 256 Kbit EEPROM memory capacity for flexible data storage
Features a fast 400 kHz I2C Interface for quick communication
Includes an enhanced write protection mechanism for data security
Operates across a wide voltage range, ensuring compatibility with various systems
