- RS Stock No.:
- 267-8089
- Mfr. Part No.:
- 4-1825059-2
- Brand:
- TE Connectivity
On back order for despatch 06/06/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (On a Reel of 750)
$2.495
(exc. GST)
$2.745
(inc. GST)
Units | Per unit | Per Reel* |
750 - 750 | $2.495 | $1,871.25 |
1500 - 1500 | $2.395 | $1,796.25 |
2250 - 2250 | $2.303 | $1,727.25 |
3000 - 3000 | $2.218 | $1,663.50 |
3750 + | $2.139 | $1,604.25 |
*price indicative |
- RS Stock No.:
- 267-8089
- Mfr. Part No.:
- 4-1825059-2
- Brand:
- TE Connectivity
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- HK
Product Details

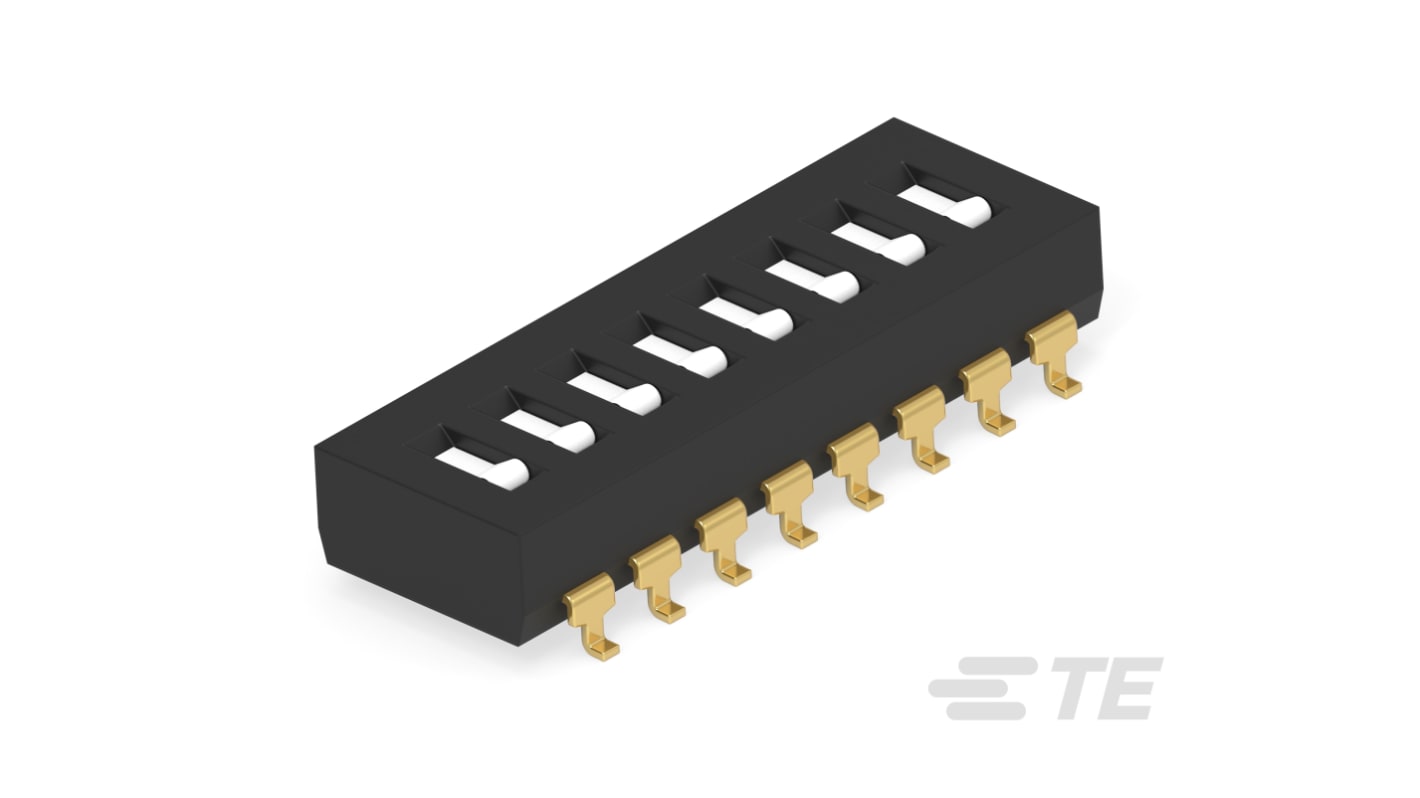

The TE Connectivity dip switch has gold flash contact mating area plating with black polyphenylene sulfide (PPS) housing. with 8 positions and flush, slide actuator.
SPST configuration
Operating temperature range from -30 to 85 °C
Contact base made up of copper alloy
Operating temperature range from -30 to 85 °C
Contact base made up of copper alloy
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Number of Positions | 8 |
Mounting Type | Surface Mount |
Contact Configuration | SPST |
Contact Material | Copper Alloy |
Package Style | SMT |
Actuator Type | Flush Slide |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -30°C |
Operating Temperature Range | -30 → +85°C |
Voltage Rating | 5V dc |
