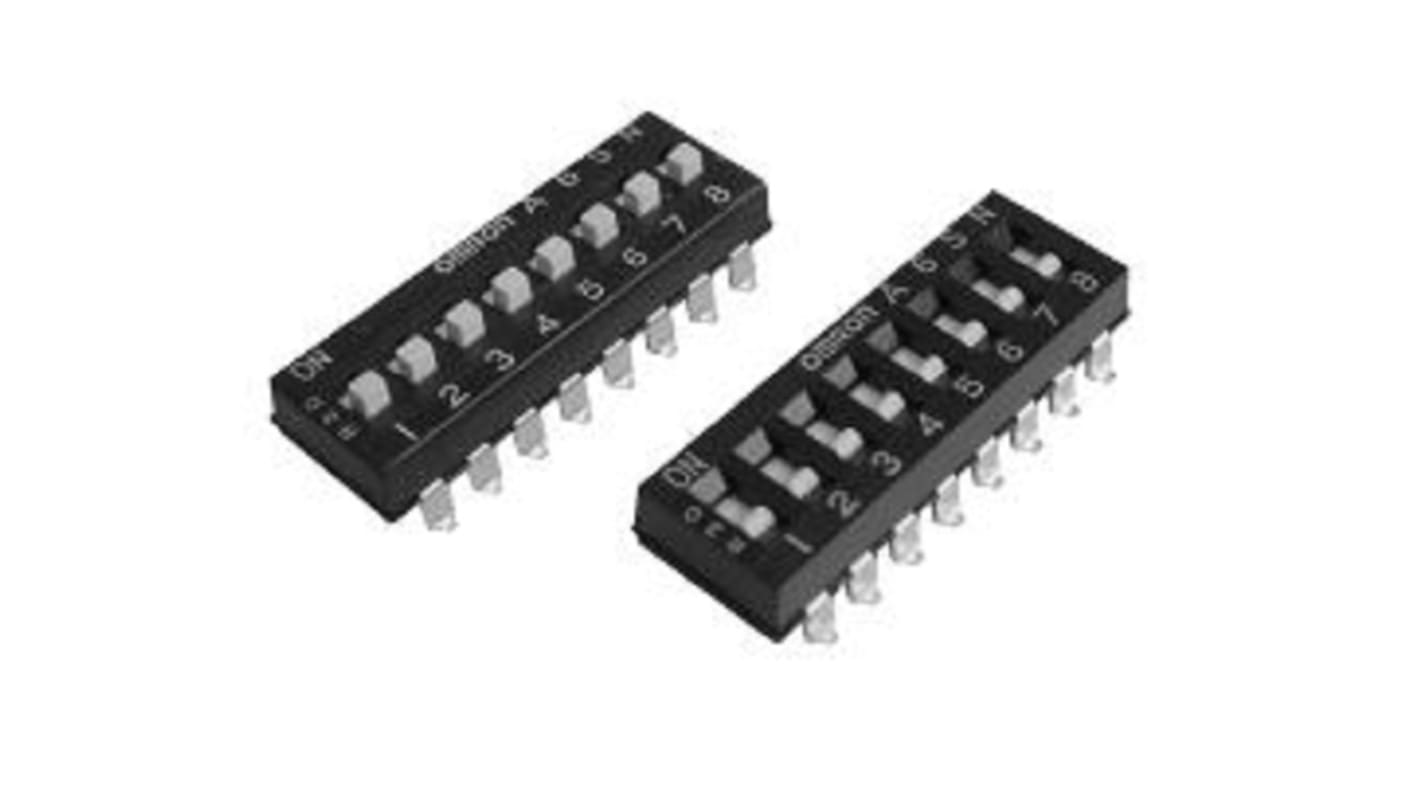

Omron 1 Way Surface Mount DIP Switch SPST, Flat Actuator, IP40
- RS Stock No.:
- 243-6545
- Mfr. Part No.:
- A6SN-1101
- Brand:
- Omron
476 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (On a Tape of 2)
$2.97
(exc. GST)
$3.27
(inc. GST)
| Units | Per unit | Per Tape* |
| 2 - 8 | $2.97 | $5.94 |
| 10 - 18 | $2.90 | $5.80 |
| 20 - 48 | $2.83 | $5.66 |
| 50 + | $2.77 | $5.54 |
| *price indicative | ||
- RS Stock No.:
- 243-6545
- Mfr. Part No.:
- A6SN-1101
- Brand:
- Omron
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The Omron makes this surface mounted, slide DIP switch which is rated for 25 Vdc at 25 mA. have high contact reliability. With this device, washing is possible and has insulation resistance of 100 MΩ minimum (at 100 VDC with insulation tester).
Contact resistance (initial value) 200 mΩ max
Durability electrical 1,000 operations min
Durability electrical 1,000 operations min
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 1 |
| Mounting Type | Surface Mount |
| Contact Material | Gold |
| Contact Configuration | SPST |
| Actuator Type | Flat |
| Contact Current Rating | 25 mA at 25 Vdc VA |
| IP Rating | IP40 |
