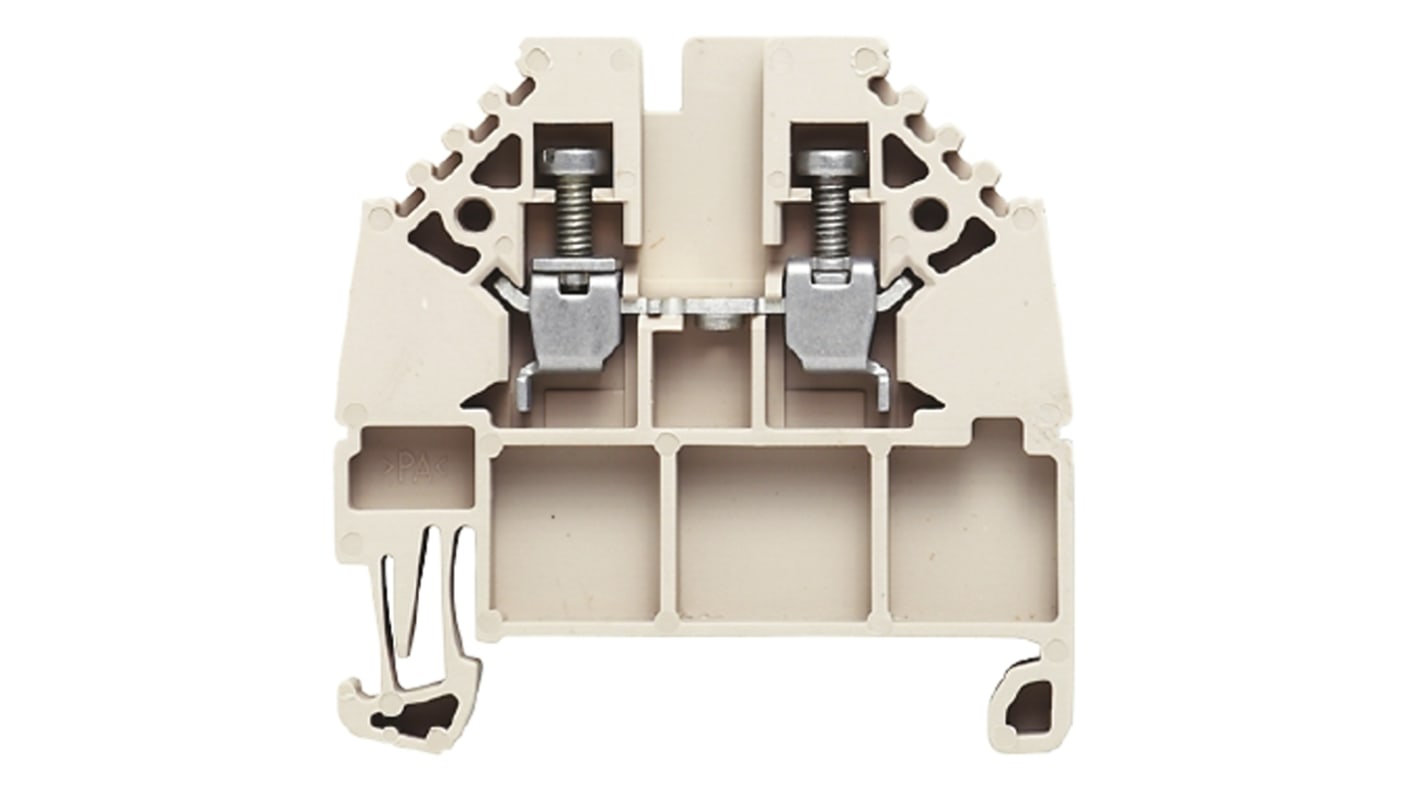

Weidmuller W Series Dark Beige Feed Through Terminal Block, 2.5mm², Single-Level, Screw Termination

RS Stock No.:: 826-3114
Mfr. Part No.:: 1730940000
Brand:: Weidmüller

Weidmuller W Series Dark Beige Feed Through Terminal Block, 2.5mm², Single-Level, Screw Termination

View this category

Stock check temporarily unavailable - call for stock availability

Price (ex. GST) Each (In a Pack of 10)

$3.121

(exc. GST)

$3.433

(inc. GST)

Units	Per unit	Per Pack*
10 +	$3.121	$31.21

*price indicative

RS Stock No.:: 826-3114
Mfr. Part No.:: 1730940000
Brand:: Weidmüller

Technical data sheets

1730940000_WDU_2.5N_600UL_en 8263114

Legislation and Compliance

Product Details

WDU Series Feed-Through Terminal Blocks

WDU Series feed-through terminal blocks with yoke connection technology. The terminals are highly reliable and make planning easier and optimise operational safety.

Features and Benefits

• Screw connection
• Snap-on mounting
• Klippon® connect provides established response to a range of requirements

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.

Specifications

Attribute	Value
Colour	Dark Beige
Number of Levels	Single
Series	W
American Wire Gauge	26 → 12AWG
Termination Method	Screw
Cable CSA	2.5mm²
Current Rating	24A
Voltage Rating	800 V
Minimum Operating Temperature	-50°C
Maximum Operating Temperature	+120°C
