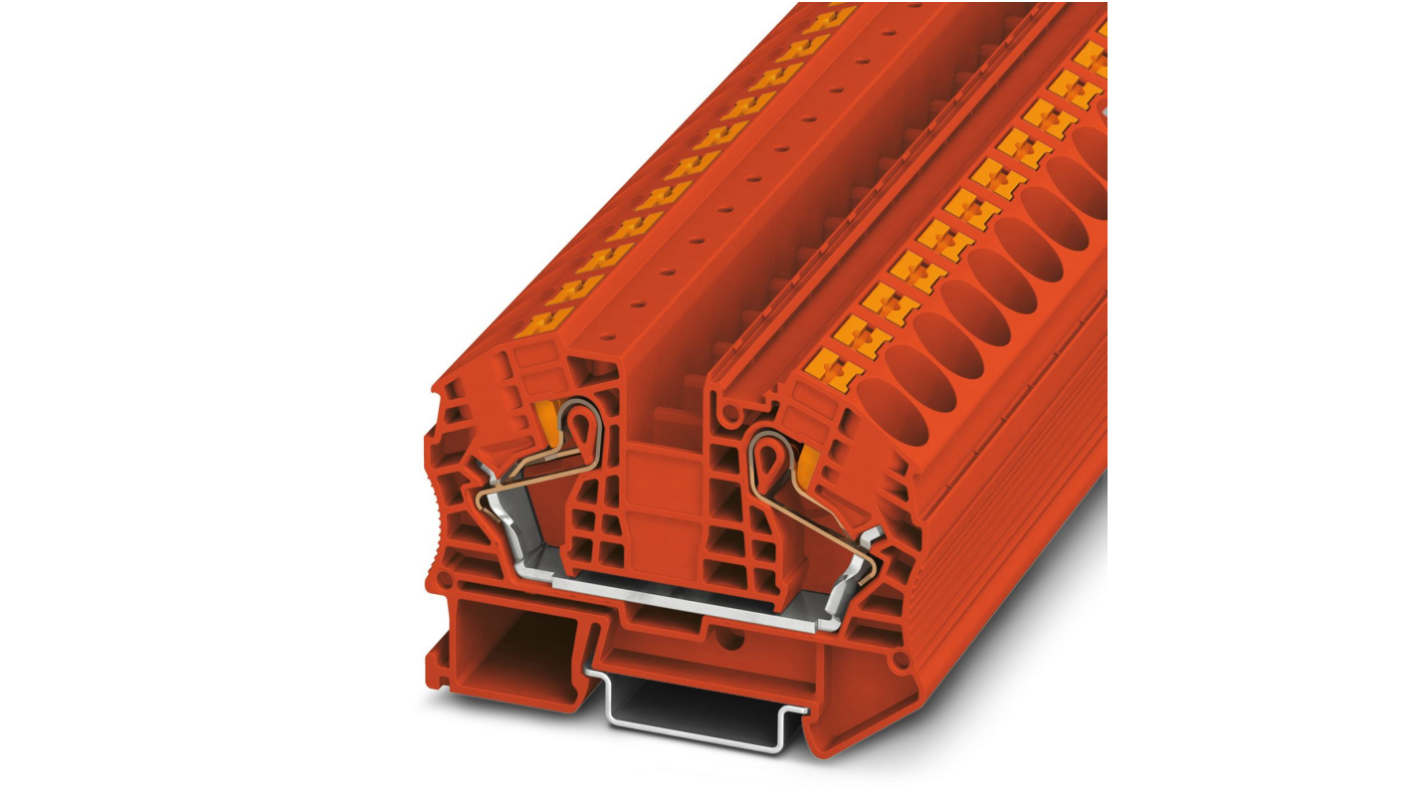

Phoenix Contact PT 16 N RD Series Red Component Terminal Block, 25mm², Push In Termination, ATEX, IECEx
- RS Stock No.:
- 207-2900
- Mfr. Part No.:
- 3212146
- Brand:
- Phoenix Contact
On back order for despatch 11/06/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (In a Pack of 50)
$8.58
(exc. GST)
$9.44
(inc. GST)
| Units | Per unit | Per Pack* |
| 50 + | $8.58 | $429.00 |
| *price indicative | ||
- RS Stock No.:
- 207-2900
- Mfr. Part No.:
- 3212146
- Brand:
- Phoenix Contact
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PL
Product Details
The Phoenix Contact Feed-through terminal block works with a nominal voltage of 1000V and nominal current of 76A. It has Push in connection method and two number of connections.
0.2mm² to 6mm² cross section
20 to 10AWG wire size
-60°C to 85°C ambient operating temperature
20 to 10AWG wire size
-60°C to 85°C ambient operating temperature
This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
Specifications
Attribute | Value |
|---|---|
| Colour | Red |
| American Wire Gauge | 4AWG |
| Series | PT 16 N RD |
| Termination Method | Push In |
| Cable CSA | 25mm² |
| Fused | No |
| Current Rating | 76A |
| Voltage Rating | 1 kV |
| Hazardous Area Certification | ATEX, IECEx |
| Model Number | PT 16 N RD |
