RS PRO Separator for Use with RS PRO 6, RS PRO 10 DIN Rail Feed Through Terminal Blocks
- RS Stock No.:
- 262-4177
- Brand:
- RS PRO
10 In Global stock for delivery within 10 working day(s)
15 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) 1 Bag of 10
$12.64
(exc. GST)
$13.90
(inc. GST)
| Bag(s) | Per Bag | Per unit* |
| 1 + | $12.64 | $1.264 |
| *price indicative | ||
- RS Stock No.:
- 262-4177
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

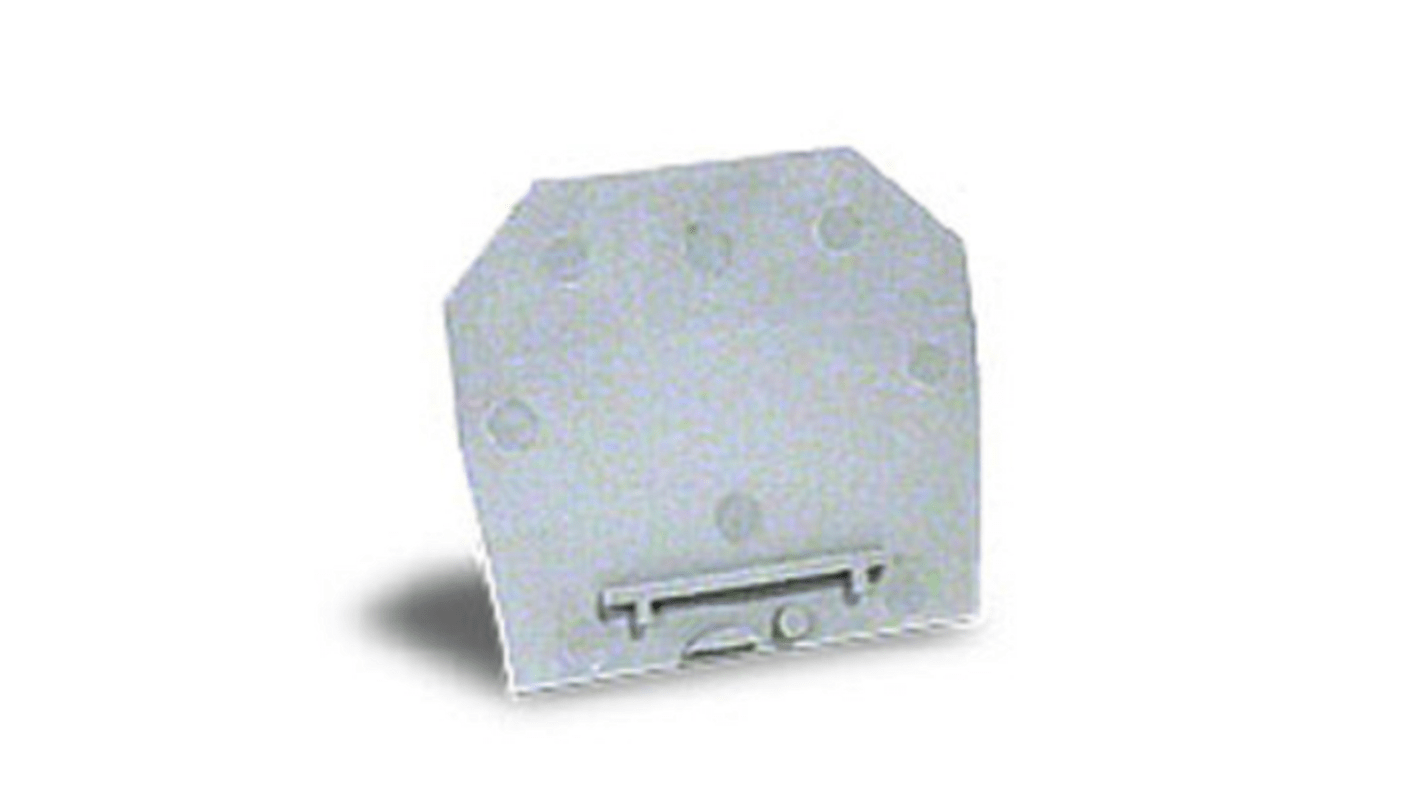

RS PRO Separator, For Feedthrough Terminal Blocks – RS PRO 6, 10
Use this separator at the end of a row of terminals. It is necessary to insert end plates to ensure contact protection is maintained when terminals of different sizes are used within the same terminal block. The outer dimensions of the separator correspond to the dimensions of the terminals. The use of end plates increases air and creepage distances, which in turn affect voltage values. Locking pegs ensure that end plates can be mounted quickly.
Features and Benefits
- Flat separator
- Grey
- Increases air and creepage distances
- For feed through terminal blocks
- Locking pegs
Specification
- Material PA 66 – V0
- Length: 55 mm
- Width: 1.5 mm
- Height: 49 mm
- Weight: 3.6g
Compatibility
Applications
- Feed-Through Terminal Blocks
- Control Panels
Specifications
Attribute | Value |
|---|---|
| Accessory Type | Separator |
| For Use With | RS PRO 6, RS PRO 10 DIN Rail Feed Through Terminal Blocks |
| Mounting Type | Terminal Mount |
