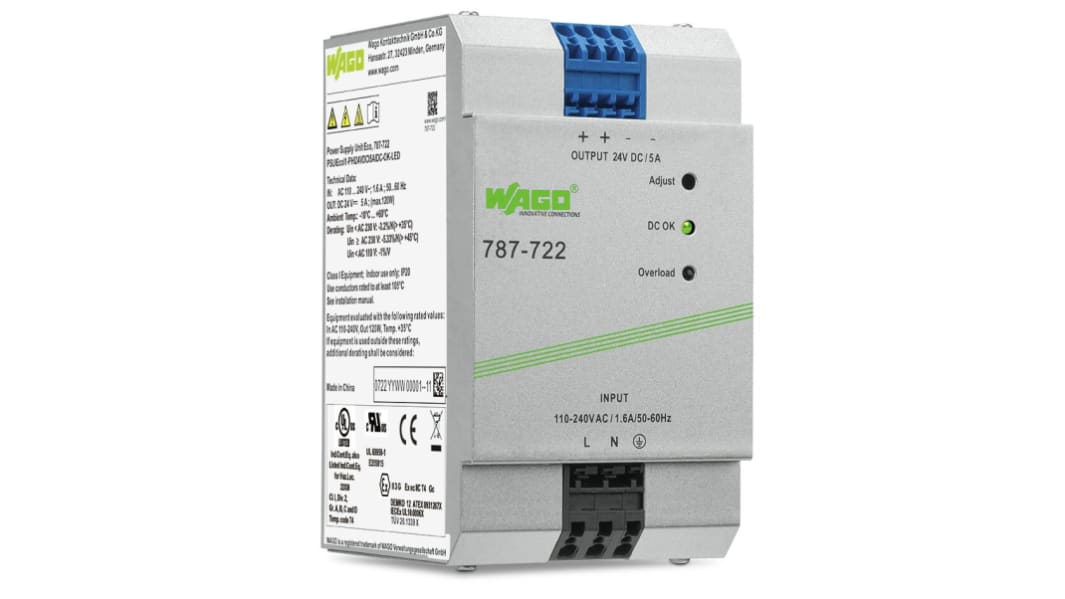

Wago 787 Switched Mode DIN Rail Power Supply, 90 → 264 V ac / 90 → 373V dc ac, dc Input, 24V dc dc
- RS Stock No.:
- 240-7970
- Mfr. Part No.:
- 787-722
- Brand:
- Wago
18 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$252.53
(exc. GST)
$277.78
(inc. GST)
| Units | Per unit |
| 1 + | $252.53 |
- RS Stock No.:
- 240-7970
- Mfr. Part No.:
- 787-722
- Brand:
- Wago
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Wago DIN Rail Power Supply, 24V DC Output Voltage, 120W Power Rating - 787 Series - 787-722
When efficiency is a top priority, surge ahead with this DIN rail power supply from Wago. It converts input voltages between 85 and 264V AC or between 90 and 373V DC into a steady output voltage of 24V DC for use with low-voltage equipment. It’s a cinch to install by clipping directly onto a DIN rail. Natural convection cooling prevents the power supply from overheating when it's horizontally mounted, keeping you and your equipment safe.
Features & Benefits
• Short circuit protection kicks in automatically in the event of a fault to protect your machinery from damage
• Efficiency of 86% means little energy is wasted as heat
• LED indicator shows its operating status at a glance
• IP20 rating indicates it’s finger-safe and protected against objects over 12mm in size
• Performs reliably in challenging environments, thanks to a broad operating temperature range between -10°C and +60°C
• Efficiency of 86% means little energy is wasted as heat
• LED indicator shows its operating status at a glance
• IP20 rating indicates it’s finger-safe and protected against objects over 12mm in size
• Performs reliably in challenging environments, thanks to a broad operating temperature range between -10°C and +60°C
Applications
• Process control
• Factory automation
• Power distribution
• Factory automation
• Power distribution
What's the power rating of this DIN rail power supply?
It has a power rating of 120W, making it just the thing for use in heavy-duty systems.
Specifications
Attribute | Value |
|---|---|
| Type | Switched Mode |
| Output Voltage | 24V dc |
| Output Current | 5A |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 90 → 264 V ac / 90 → 373V dc |
| Power Rating | 120W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 92mm |
| Width | 75mm |
| Depth | 136mm |
| Series | 787 |
| Hazardous Area Certification | ATEX, IECEx |
| Minimum Temperature | -10°C |
| Efficiency | 86% |
| Standards Met | CE, cRUus, cULus |
| Output Voltage Adjustment Range | 22 → 28V |
| MTBF | 480kh |
| Maximum Temperature | +60°C |
| Ripple And Noise | 100mV Pk-Pk |
| Mounting Type | DIN Rail Mount |
