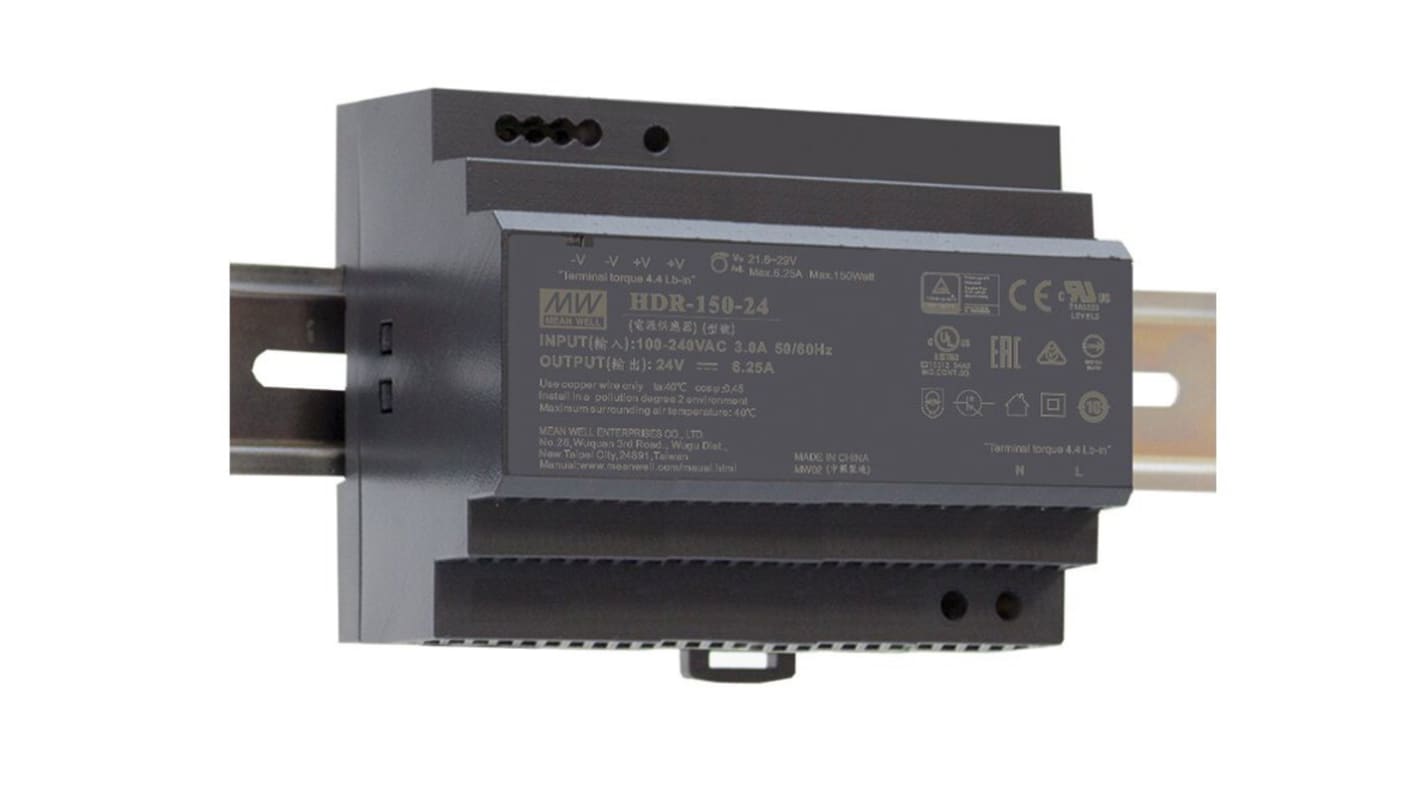

MEAN WELL HDR-150 Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 120 → 370V dc ac, dc Input, 12V dc
- RS Stock No.:
- 181-7010
- Mfr. Part No.:
- HDR-150-12
- Brand:
- MEAN WELL
1 In AU stock for next working day delivery
29 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$107.98
(exc. GST)
$118.78
(inc. GST)
Units | Per unit |
1 - 9 | $107.98 |
10 - 49 | $106.14 |
50 + | $87.34 |
- RS Stock No.:
- 181-7010
- Mfr. Part No.:
- HDR-150-12
- Brand:
- MEAN WELL
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
AC-DC Ultra slim DIN rail power supply, Input range 85-264VAC, Output 12VDC at 11.3A
Ultra Slim design with 105mm(6SU) width
universal input 85 264VAC(277VAC operational)
No Load Power consumption
Isolation Class II
DC output Voltage adjustable
Protection: short Circuit/overload/over voltage
cooling by free air convection
DIN rail TS-35/7.5 or 15 mountable
Over voltage Category III
LED indicator for power on
3 years warranty
Applications
Household control system
Building automation
Industrial control system
Factory automation
Electro-mechanical apparatus
universal input 85 264VAC(277VAC operational)
No Load Power consumption
Isolation Class II
DC output Voltage adjustable
Protection: short Circuit/overload/over voltage
cooling by free air convection
DIN rail TS-35/7.5 or 15 mountable
Over voltage Category III
LED indicator for power on
3 years warranty
Applications
Household control system
Building automation
Industrial control system
Factory automation
Electro-mechanical apparatus
Specifications
Attribute | Value |
---|---|
Type | Switched Mode |
Output Voltage | 12V dc |
Output Current | 11.3A |
AC or DC Input Voltage | ac, dc |
AC or DC Output Voltage | dc |
Input Voltage | 85 → 264 V ac / 120 → 370V dc |
Power Rating | 135.6W |
Electrical Phase | 1 |
Number of Outputs | 1 |
Height | 90mm |
Width | 105mm |
Depth | 55mm |
Series | HDR-150 |
Standards Met | CB IEC 62368-1, CE Certified, cRUus UL62368-1, cULus Recognized, EN 61558, EN55032, EN61000-3-2, EN61000-3-3, EN61000-4-11, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8 |
Maximum Temperature | +70°C |
Mounting Type | DIN Rail Mount |
Load Regulation | ±1% |
Special Features | 3 Year Warranty, Cooling by Free Air Convection, Ultra Slim Design with 105 mm Width |
Minimum Temperature | -30°C |
Efficiency | 89% |
Ripple And Noise | 100mV Pk-Pk |
MTBF | 536kh |
Output Voltage Adjustment Range | 10.8 → 13.8V |
