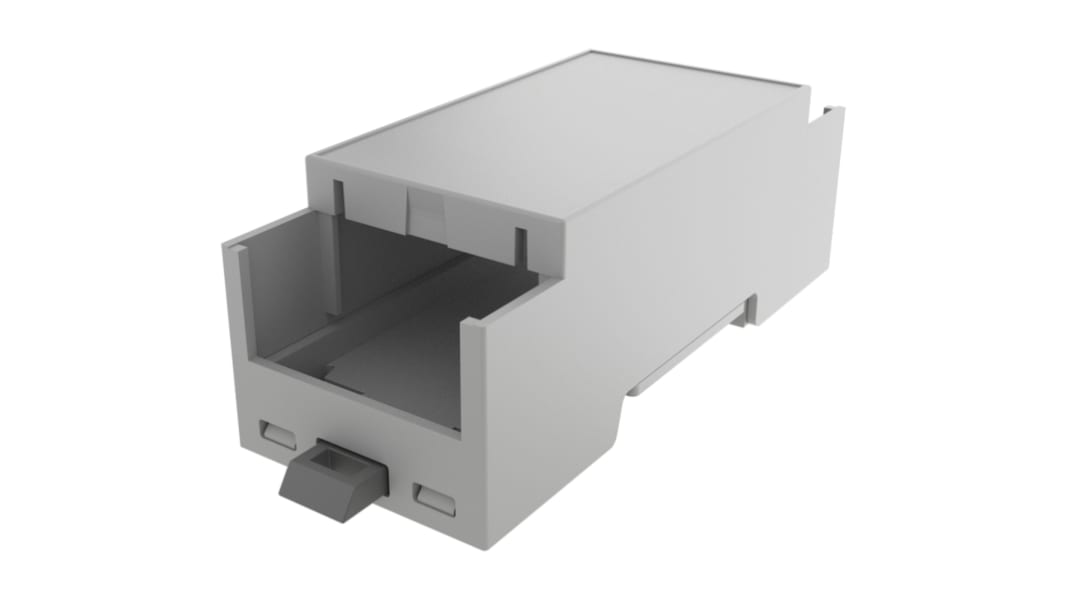

Italtronic DIN Rail Enclosure Type Modulbox Compact Series, ABS 90 mm DIN Rail Enclosure
- RS Stock No.:
- 918-8904
- Mfr. Part No.:
- 35.0207000.BL
- Brand:
- Italtronic
Subtotal (1 unit)*
$16.36
(exc. GST)
$18.00
(inc. GST)
FREE delivery for orders over $80.00 ex GST
In Stock
- 177 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | $16.36 |
*price indicative
- RS Stock No.:
- 918-8904
- Mfr. Part No.:
- 35.0207000.BL
- Brand:
- Italtronic
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Italtronic | |
| Product Type | DIN Rail Enclosure | |
| Enclosure Type | DIN Rail | |
| Body Material | ABS | |
| DIN Rail Type | Enclosure Kit | |
| Colour | Grey | |
| Series | Modulbox Compact | |
| Internal Mount Type | DIN Rail | |
| Standards/Approvals | UNI EN 22768/1 | |
| Hazardous Area Certification | No | |
| Height | 90mm | |
| Terminal Type | PCB Terminal | |
| Select all | ||
|---|---|---|
Brand Italtronic | ||
Product Type DIN Rail Enclosure | ||
Enclosure Type DIN Rail | ||
Body Material ABS | ||
DIN Rail Type Enclosure Kit | ||
Colour Grey | ||
Series Modulbox Compact | ||
Internal Mount Type DIN Rail | ||
Standards/Approvals UNI EN 22768/1 | ||
Hazardous Area Certification No | ||
Height 90mm | ||
Terminal Type PCB Terminal | ||
- COO (Country of Origin):
- IT
Modulbox XTS Compact
The Modulbox Compact XTS is a DIN Rail mountable enclosure made from a self-extinguishing PC/ABS blend. This new addition to the Italtronic range has its height reduced to approximately 32 mm. That apart, it is similar to the Modulbox XTS enclosure and can be equipped with the same electronic boards. With simple spacers or pins, another PCB can be fitted to the top of the enclosure.
The Modulbox Compact XTS is available in 24 enclosure kits divided into 3 versions.
Features and Benefits
Version A allows terminal blocks/connectors to be mounted on either side of the enclosure
Version B has one open side for terminal blocks/connectors and one high shoulder to increase internal volume for components
Version C has two high shoulders offering increased volume for components
All 3 have a top panel produced as part of the mould (non-removable)
Applications
The Modulbox XTS Compact is designed for use in various electronic and electrical applications. It can be hooked on the GUIDE EN 60715 (made in conformity with standard DIN 38880) or can be fixed to the wall.
Note
Versions A and B utilise the terminal covers used with the standard Modulbox XTS.
Supplied with
Base, cover and DIN Rail hook.
