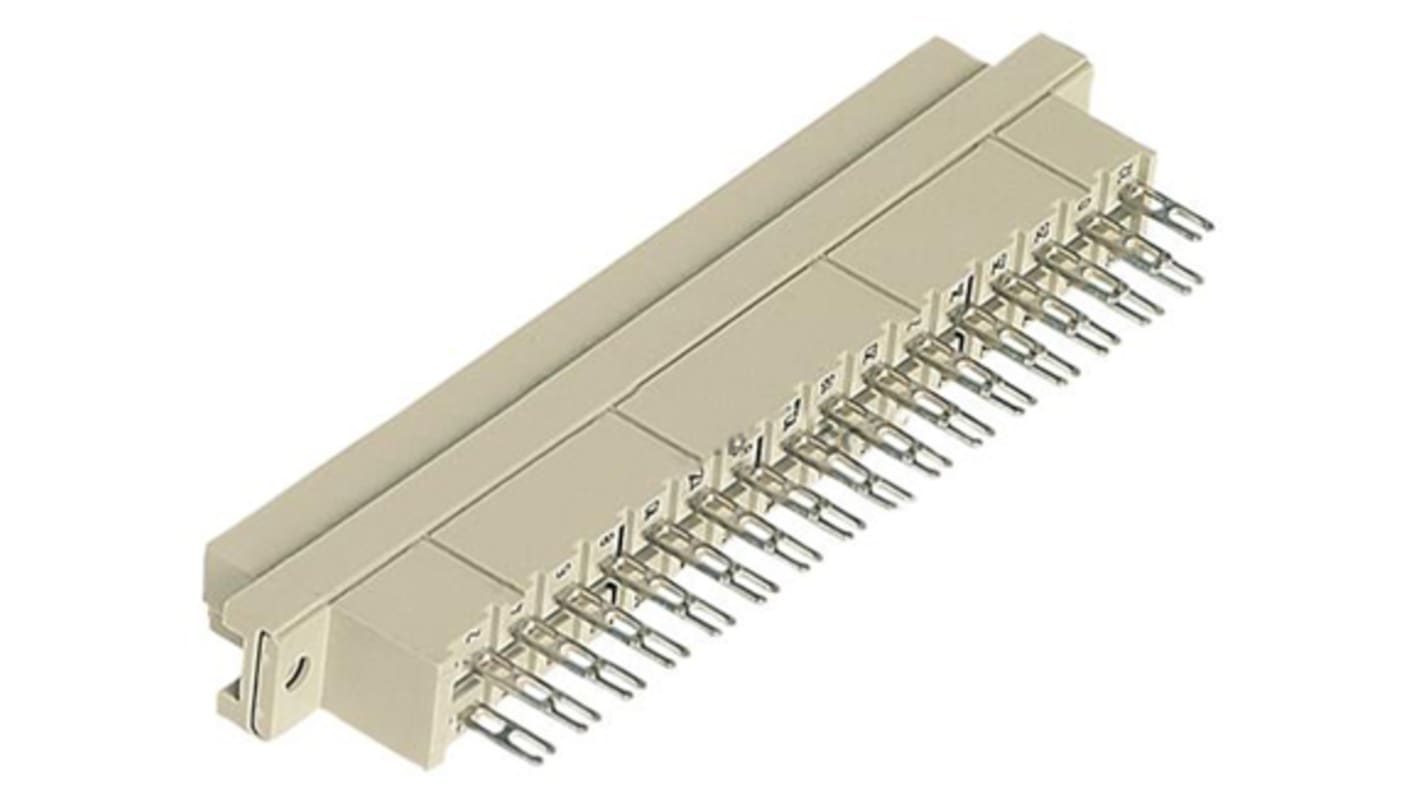

Harting, DIN 41612 32 Way 5.08mm Pitch, Type D Class C2, 2 Row, Straight DIN 41612 Connector, Socket

  • RS Stock No. 843-6690
  • Mfr. Part No. 09042326823
  • Manufacturer HARTING
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Harting DIN 41612 Type D Backplane Power Connectors

Harting DIN 41612 type D backapane power connectors are designed for various application areas that demand high power, such as power supply and railway transportation.Harting power connectors complying with DIN 41612 are robust and durable with a good mating life cycle for board to board connections.
For female crimp contacts for female connector housing (stock number 740-6922) see stock number 741-2924 typically

Operating temp -55 to +125 °C
6A max per contact
Contact resistance up to 15mΩ
Thermoplastic resin - glass fibre filled
Copper alloy contacts

DIN41612 - Harting Range

DIN 41612 connectors for interconnection in all 19in Eurocard racking systems.

Specifications
Attribute Value
Number of Contacts 32
Gender Female
Number of Rows 2
Body Orientation Straight
Termination Method Solder Lug
Row Loading A/c
Type D
Pitch 5.08mm
Class Rating C2
Current Rating 6A
Series DIN 41612
282 In stock for delivery within 7 working day(s) (Global Stock)
Price (ex. GST) Each
$ 16.91
(exc. GST)
$ 18.60
(inc. GST)
units
Per unit
1 - 19
$16.91
20 - 74
$15.91
75 - 299
$15.09
300 - 599
$14.71
600 +
$14.34
