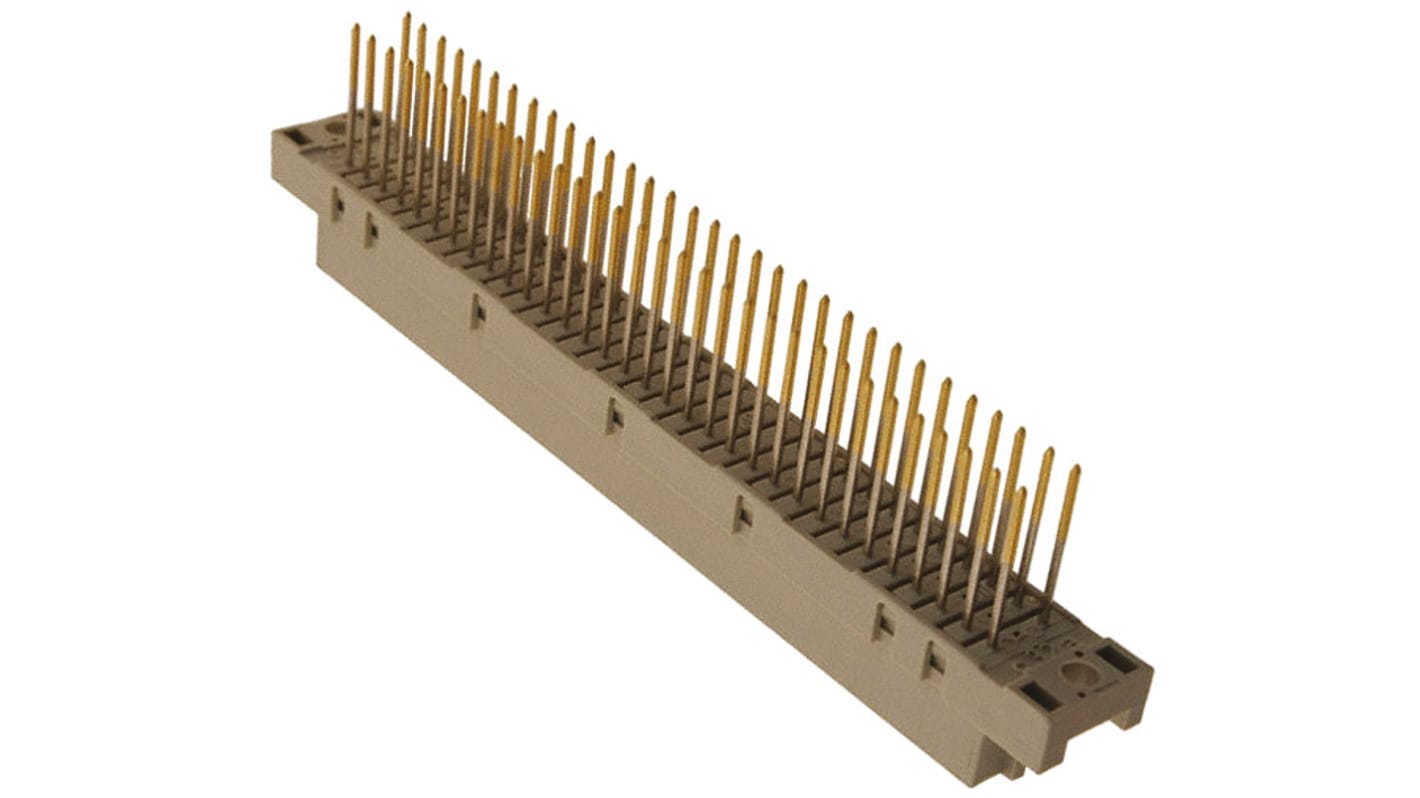

Harting 09 03 64 Way 2.54mm Pitch, Type C Class C2, 3 Row, Straight DIN 41612 Connector, Socket
- RS Stock No.:
- 740-6770
- Mfr. Part No.:
- 09032646878
- Brand:
- HARTING
Bulk discount available
Subtotal (1 unit)**
$14.85
(exc. GST)
$16.33
(inc. GST)
10 In Global stock for delivery within 10 working day(s)*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $60.00 ex GST
Real time qty checker
Units | Per unit |
|---|---|
| 1 - 4 | $14.85 |
| 5 - 9 | $14.58 |
| 10 + | $14.32 |
**price indicative
- RS Stock No.:
- 740-6770
- Mfr. Part No.:
- 09032646878
- Brand:
- HARTING
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Number of Contacts | 64 | |
| Gender | Female | |
| Number of Rows | 3 | |
| Body Orientation | Straight | |
| Termination Method | Wire Wrap | |
| Row Loading | a/c | |
| Type | C | |
| Pitch | 2.54mm | |
| Contact Plating | Gold over Nickel | |
| Class Rating | C2 | |
| Current Rating | 2A | |
| Contact Material | Copper Alloy | |
| Maximum Contact Resistance | 20mΩ | |
| Series | 09 03 | |
| Housing Material | Thermoplastic | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +125°C | |
Select all | ||
|---|---|---|
Brand HARTING | ||
Number of Contacts 64 | ||
Gender Female | ||
Number of Rows 3 | ||
Body Orientation Straight | ||
Termination Method Wire Wrap | ||
Row Loading a/c | ||
Type C | ||
Pitch 2.54mm | ||
Contact Plating Gold over Nickel | ||
Class Rating C2 | ||
Current Rating 2A | ||
Contact Material Copper Alloy | ||
Maximum Contact Resistance 20mΩ | ||
Series 09 03 | ||
Housing Material Thermoplastic | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +125°C | ||
