dsPIC33FJ128GP706A-I/PT Microchip, 16bit Digital Signal Processor 40MIPS 128 kB Flash 64-Pin TQFP

RS Stock No.:: 889-5279
Mfr. Part No.:: dsPIC33FJ128GP706A-I/PT
Brand:: Microchip

dsPIC33FJ128GP706A-I/PT Microchip, 16bit Digital Signal Processor 40MIPS 128 kB Flash 64-Pin TQFP

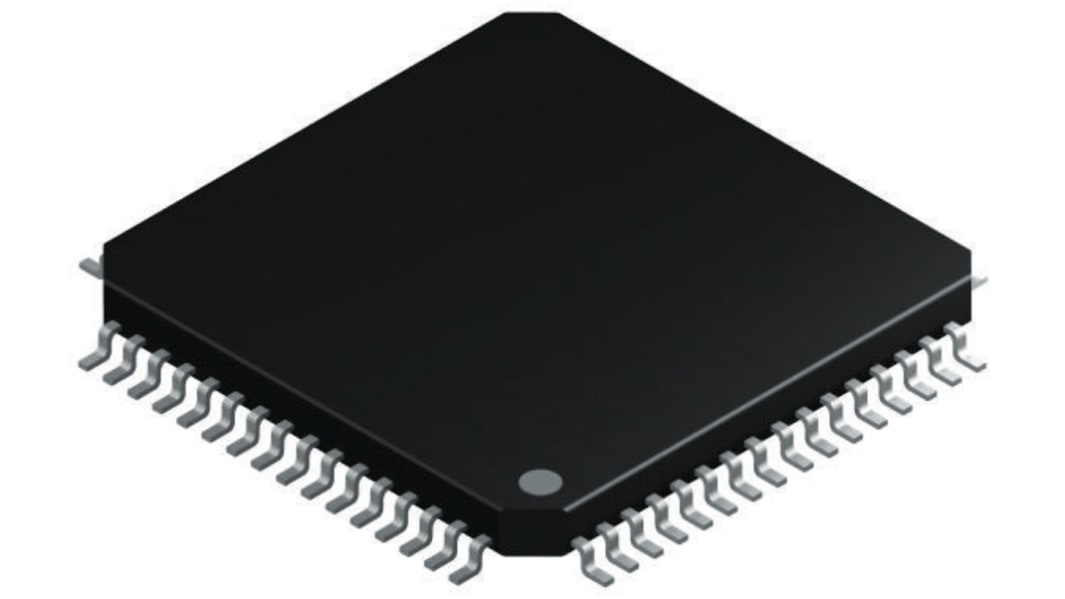

This image is representative of the product range

320 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each (In a Tray of 160)

$11.429

(exc. GST)

$12.572

(inc. GST)

Units	Per unit	Per Tray*
160 - 640	$11.429	$1,828.64
800 +	$11.051	$1,768.16
*price indicative

RS Stock No.:: 889-5279
Mfr. Part No.:: dsPIC33FJ128GP706A-I/PT
Brand:: Microchip

Technical data sheets

Datasheet

Legislation and Compliance

Product Details

dsPIC33F Digital Signal Controllers

The dsPIC33F Digital Signal Controllers offer the performance of a DSP with the simplicity of an MCU. The 40MIPS dsPIC33F core is designed to execute digital filter algorithms, high-speed precision digital control loops and digital audio and speech processing.
dsPIC33F DSCs with Motor Control peripherals enable the design of high-performance, precision motor control systems. The dsPIC33F SMPS DSCs provide on-chip peripherals specifically designed for high-performance, digital power supplies. SMPS peripherals include high speed and high resolution PWM, fast ADC and analogue comparators.

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Maximum Frequency	40MIPS
Data Bus Width	16bit
RAM Size	16 kB
Instruction Set Architecture	RISC
Program Memory Size	128 kB
Program Memory Type	Flash
Mounting Type	Surface Mount
Package Type	TQFP
Pin Count	64
Typical Operating Supply Voltage	3 to 3.6 V
Number of UART Channels	2
Number of I2C Channels	2
Number of Timers	9
Number of Ethernet Channels	0
USB Channels	0
Number of SPI Channels	2
Pulse Width Modulation	8 x16 bit
Dimensions	10 x 10 x 1.05mm
Timers	9 x 16 bit
Number of PCI Channels	0
Width	10mm
PWM Channels	8
Number of LIN Channels	0
Number of USART Channels	0
PWM Resolution	16bit
ADC Resolution	10 bit, 12bit
Number of CAN Channels	2
Height	1.05mm
ADC Channels	36
Minimum Operating Temperature	-40 °C
ADCs	36 x 10/12 bit
Length	10mm
Number of PWM Units	1
Number of ADC Units	1
Maximum Operating Temperature	+85 °C
Timer Resolution	16bit
