dsPIC33FJ128GP804-I/ML Microchip, 16bit Digital Signal Processor 40MHz 128 kB Flash 44-Pin QFN

RS Stock No.:: 666-8343
Mfr. Part No.:: dsPIC33FJ128GP804-I/ML
Brand:: Microchip

dsPIC33FJ128GP804-I/ML Microchip, 16bit Digital Signal Processor 40MHz 128 kB Flash 44-Pin QFN

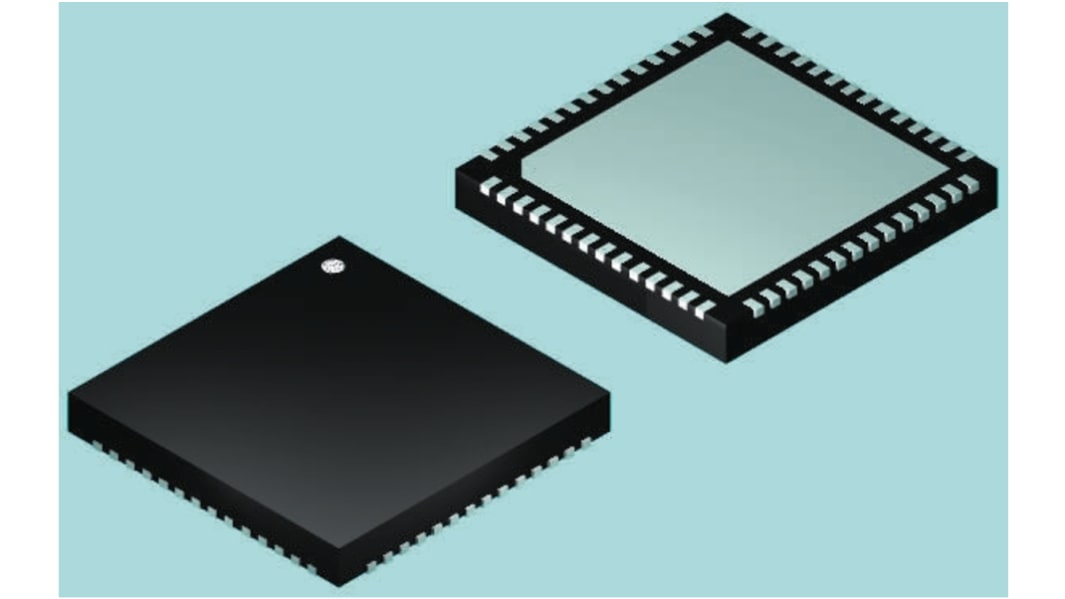

This image is representative of the product range

101 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$11.84

(exc. GST)

$13.02

(inc. GST)

Units	Per unit
1 - 11	$11.84
12 - 22	$11.80
23 +	$11.39

RS Stock No.:: 666-8343
Mfr. Part No.:: dsPIC33FJ128GP804-I/ML
Brand:: Microchip

Technical data sheets

Datasheet

Legislation and Compliance

Product Details

dsPIC33F Digital Signal Controllers

The dsPIC33F Digital Signal Controllers offer the performance of a DSP with the simplicity of an MCU. The 40MIPS dsPIC33F core is designed to execute digital filter algorithms, high-speed precision digital control loops and digital audio and speech processing.
dsPIC33F DSCs with Motor Control peripherals enable the design of high-performance, precision motor control systems. The dsPIC33F SMPS DSCs provide on-chip peripherals specifically designed for high-performance, digital power supplies. SMPS peripherals include high speed and high resolution PWM, fast ADC and analogue comparators.

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Maximum Frequency	40MHz
Data Bus Width	16bit
RAM Size	16 kB
Instruction Set Architecture	RISC
Program Memory Size	128 kB
Program Memory Type	Flash
Mounting Type	Surface Mount
Package Type	QFN
Pin Count	44
Typical Operating Supply Voltage	3.3 V
Number of UART Channels	2
Maximum Operating Temperature	+85 °C
Width	8mm
ADCs	13-ch x 10 bit, 13-ch x 12 bit
Dimensions	8 x 8 x 0.88mm
Height	0.88mm
Length	8mm
Number of CAN Channels	1
Number of I2C Channels	1
Number of Timers	5
Number of SPI Channels	2
Minimum Operating Temperature	-40 °C
