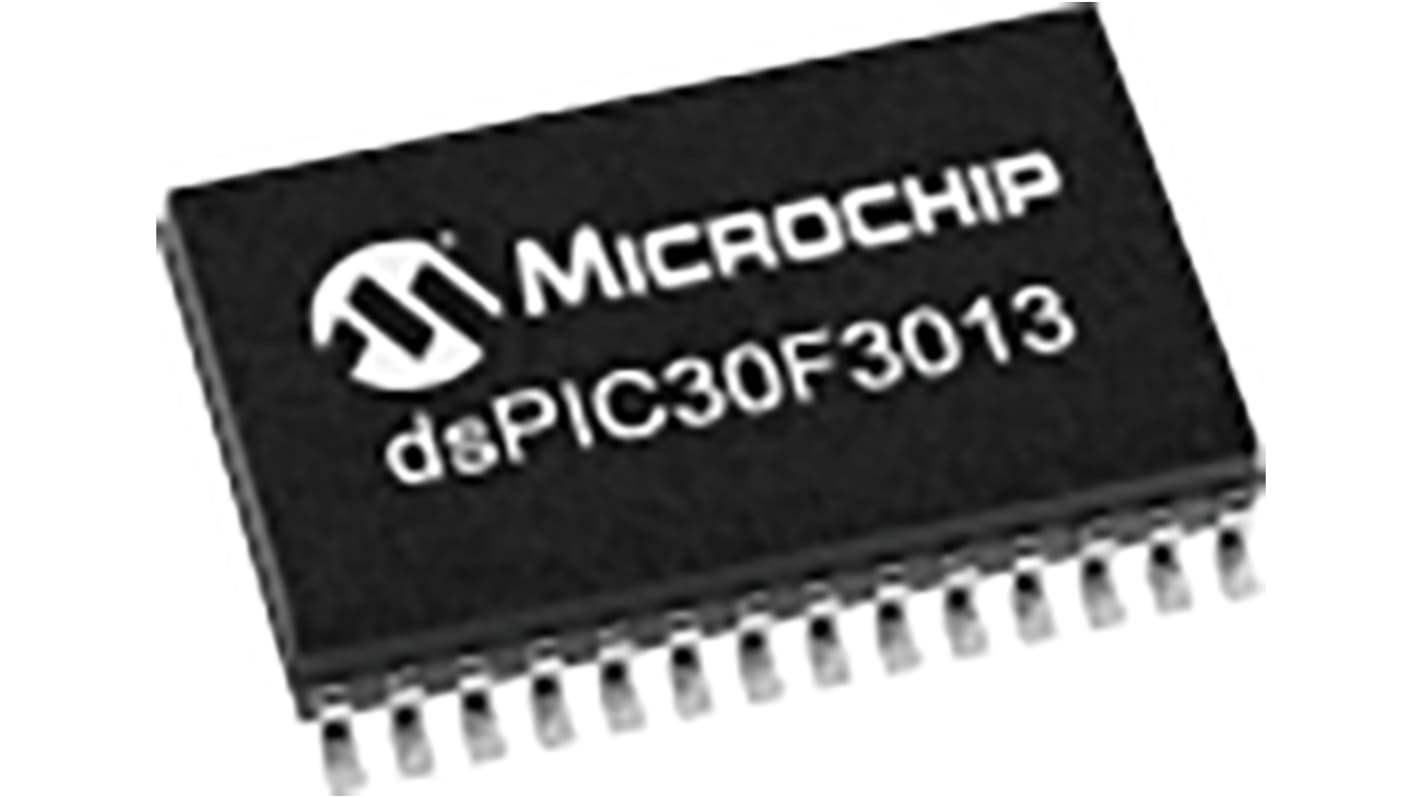

DSPIC30F3013-20I/SO Microchip DSPIC, 16bit Digital Signal Processor 40MHz 24 kB Flash 28-Pin SOIC
- RS Stock No.:
- 177-1984
- Mfr. Part No.:
- DSPIC30F3013-20I/SO
- Brand:
- Microchip
Discontinued product
- RS Stock No.:
- 177-1984
- Mfr. Part No.:
- DSPIC30F3013-20I/SO
- Brand:
- Microchip
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Maximum Frequency | 40MHz | |
| Series | DSPIC | |
| Device Million Instructions per Second | 20MIPS | |
| Data Bus Width | 16bit | |
| RAM Size | 2.048 kB | |
| Program Memory Size | 24 kB | |
| Program Memory Type | Flash | |
| Numeric and Arithmetic Format | ALU | |
| Mounting Type | Surface Mount | |
| Package Type | SOIC | |
| Pin Count | 28 | |
| Typical Operating Supply Voltage | 5.5 V | |
| Number of UART Channels | 2 | |
| ADC Channels | 10 | |
| Pulse Width Modulation | 1 (2 x 16 bit) | |
| Dimensions | 17.9 x 7.5 x 2.35mm | |
| Minimum Operating Temperature | -40 °C | |
| PWM Resolution | 16bit | |
| Number of SPI Channels | 1 | |
| Number of Timers | 2 | |
| Number of I2C Channels | 1 | |
| Timers | 1 (1 x 32 bit), 1 (3 x 16 bit) | |
| Height | 2.35mm | |
| Width | 7.5mm | |
| PWM Channels | 2 | |
| Timer Resolution | 16 bit, 32bit | |
| ADC Resolution | 12bit | |
| Number of PWM Units | 1 | |
| Maximum Operating Temperature | +85 °C | |
| Number of ADC Units | 1 | |
| ADCs | 1 (10 x 12 bit) | |
| Length | 17.9mm | |
