- RS Stock No.:
- 712-5471
- Mfr. Part No.:
- 0572 0566
- Brand:
- Testo
Stocked by manufacturer – available for delivery 15/05/2024
Added
Price (ex. GST) Each
$304.03
(exc. GST)
$334.43
(inc. GST)
Units | Per unit |
1 + | $304.03 |
- RS Stock No.:
- 712-5471
- Mfr. Part No.:
- 0572 0566
- Brand:
- Testo
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

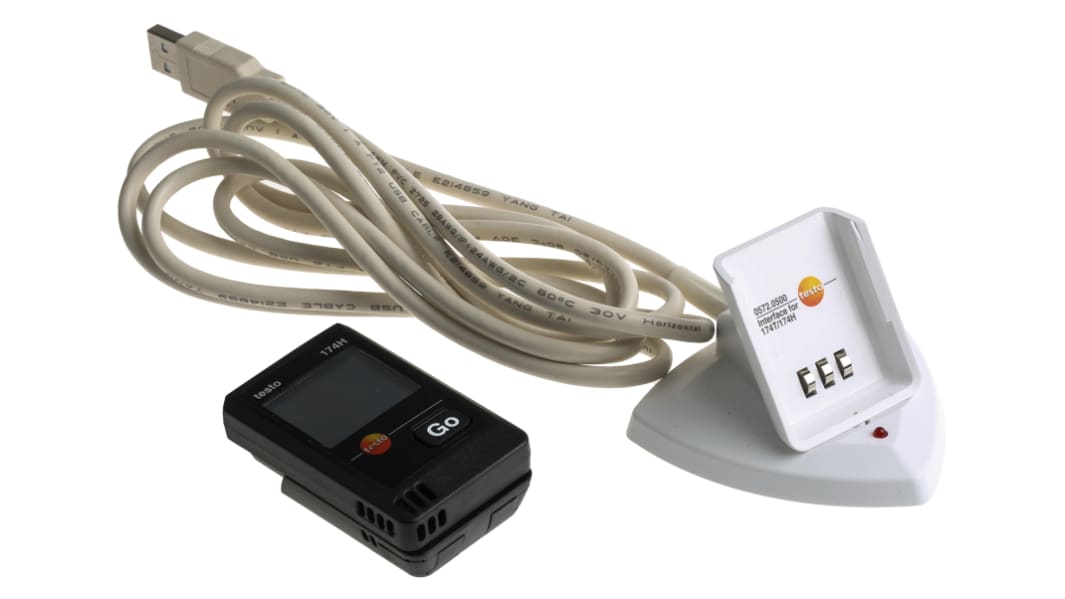

Testo Temperature and Humidity Data Logger, 2 Input Channels, LCD Display - 174 Series - 0572 0566
Measure and record temperature and humidity values with this dual-purpose data logger from Testo. It features a capacitive sensor for relative humidity detection and a negative temperature coefficient (NTC) thermistor for highly reliable temperature measurements.
This unit features a large liquid-crystal display (LCD) screen that makes results easy to read. The screen has flashing alarms for low and high temperatures, so it's easy to know when you need to make adjustments. It has the capacity to store up to 16,000 measurements, so you can use it for a long time without needing to erase data.
This unit features a large liquid-crystal display (LCD) screen that makes results easy to read. The screen has flashing alarms for low and high temperatures, so it's easy to know when you need to make adjustments. It has the capacity to store up to 16,000 measurements, so you can use it for a long time without needing to erase data.
Features & Benefits
• Battery life of 1 year for long-lasting performance
• Compact dimensions of 60 (length) x 38 (width) x 18.5mm (height) for mounting on walls with limited space
• IP20 (ingress protection) rating indicates resistance to dust and objects over 12mm in size
• Wide operating temperature range of -20°C to +70°C for use in demanding environments
• Compact dimensions of 60 (length) x 38 (width) x 18.5mm (height) for mounting on walls with limited space
• IP20 (ingress protection) rating indicates resistance to dust and objects over 12mm in size
• Wide operating temperature range of -20°C to +70°C for use in demanding environments
Applications
• Residential buildings
• Commercial storage facilities
• Commercial storage facilities
How does this data logger communicate with personal computers?
This data logger has a USB interface that allows you to connect it to a computer. This allows you to easily back up data and export it to CSV (comma-separated values) or spreadsheet formats.
This item is Lithium cell / battery product (or contains Lithium cells / batteries) which needs to be shipped by sea freight. There will be extension of lead time (around 90 days) for global stock.
Specifications
Attribute | Value |
---|---|
Number of Input Channels | 2 |
Model Number | 174H Kit |
Sensor Type | Capacitive, NTC |
Measurement Parameters | Humidity, Temperature |
Interface Type | USB |
Data Logger Type | Temperature & Humidity |
Maximum Temperature Measurement | +70 °C |
Power Source | Battery |
Best Temperature Measurement Accuracy | ±0.5 °C |
IP Rating | IP20 |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +70°C |
Display Type | LCD |
Battery Life | 1 yr |
Alarm | Yes |
Battery Type | CR2032 |
Temperature Measurement Resolution | 0.1°C |
Maximum Humidity Measurement | 100%RH |
Dimensions | 60 x 38 x 18.5mm |
Number of Readings Per Channel | 16000 |
Best Humidity Measurement Accuracy | ±0.03 %RH |
Includes | Battery, Calibration Protocol, Wall Bracket |
Model Number p | testo 174H |
Humidity Measurement Resolution | 0.1%RH |
