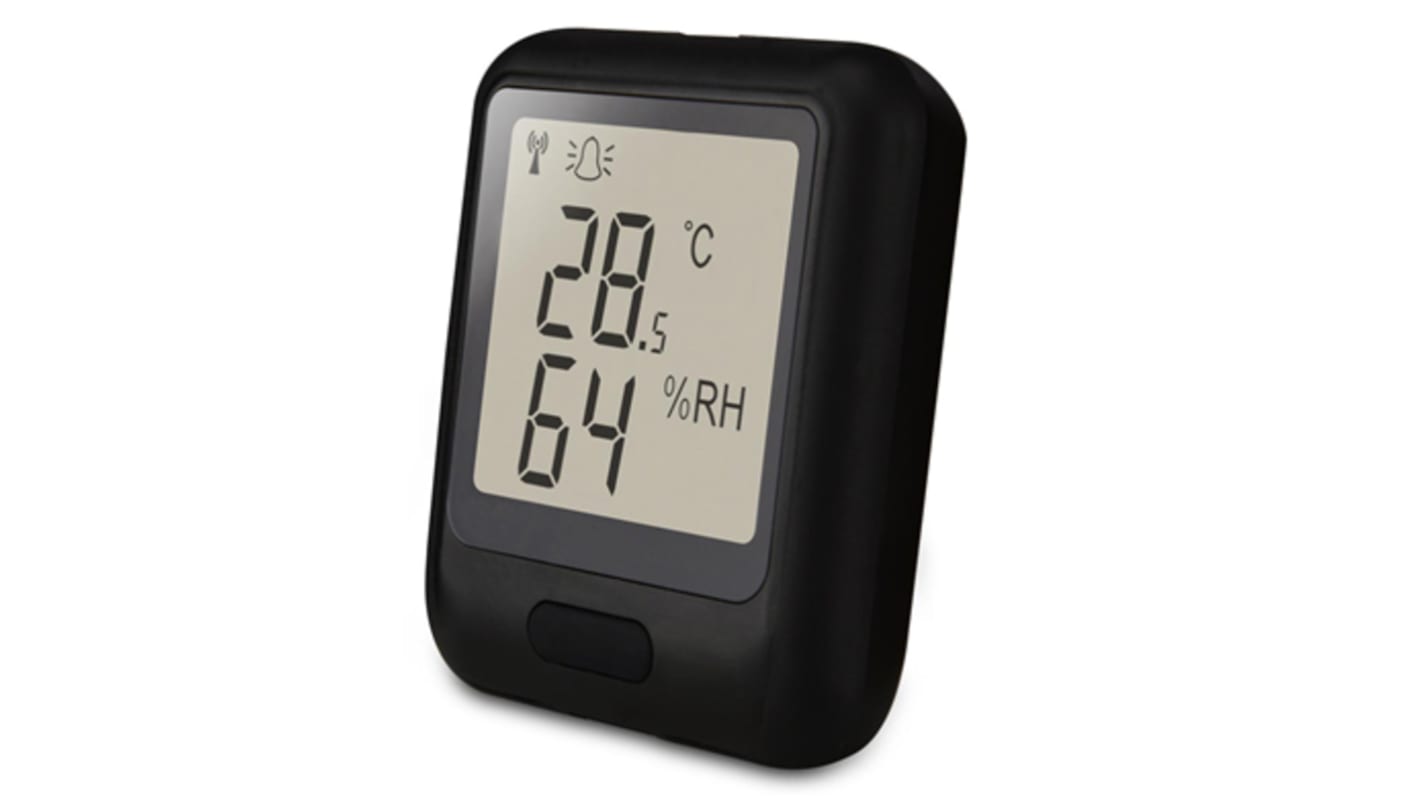

Corintech EL-WIFI-21CFR-TH+ Dew Point, Humidity, Temperature Data Logger, Wi-Fi, Battery Powered, Digital Display

  • RS Stock No. 145-8949
  • Mfr. Part No. EL-WIFI-21CFR-TH+
  • Manufacturer Corintech
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Corintech Data Logger

The Corintech single-channel measures the temperature and humidity of the environment in which it is situated. Data is streamed wirelessly over any compatible Wi-Fi network to be viewed on the EasyLog 21CFR Cloud002E. It includes permission-based use, authority level sign-off and full system audit to ensure data monitored and collected is regulated to 21CFR Part 11 standard.

Features and Benefits

Easy sensor set-up using free PC software application
Configurable high and low alarms with indicator
Data is uploaded periodically using a standard Wi-Fi network without the need to physically collect and connect the unit to a PC
Configurable high and low alarms with indicator
Operating temperature ranges between -20°C and 60°C with 0 to 100% RH measurement range
Accuracy: ±0.3°C/±0.6°F and ±2% RH (20 to 80%RH)

Applications

Veterinary
Chilling, Freezing & Storing Food
Facilities Management

Specifications
Attribute Value
Measurement Parameters Dew Point, Humidity, Temperature
Sensor Type Humidity, Temperature
Number of Input Channels 1
Interface Type Wi-Fi
Maximum Temperature Measurement +60 °C
Power Source Battery
Best Temperature Measurement Accuracy ±0.2 °C
Minimum Operating Temperature -20°C
Maximum Operating Temperature +60°C
Display Type Digital
Best Humidity Measurement Accuracy ±1.8 %RH
Maximum Humidity Measurement 100%RH
Battery Life >6 month
Includes EL-WIFI Wall Bracket, USB A-MICRO B Cable
Alarm Yes
Dimensions 82 x 70 x 36mm
Battery Type AA Lithium
Temperature Measurement Resolution 0.01°C
Number of Readings Per Channel Unlimited
5 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 325.40
(exc. GST)
$ 357.94
(inc. GST)
units
Per unit
1 +
$325.40
