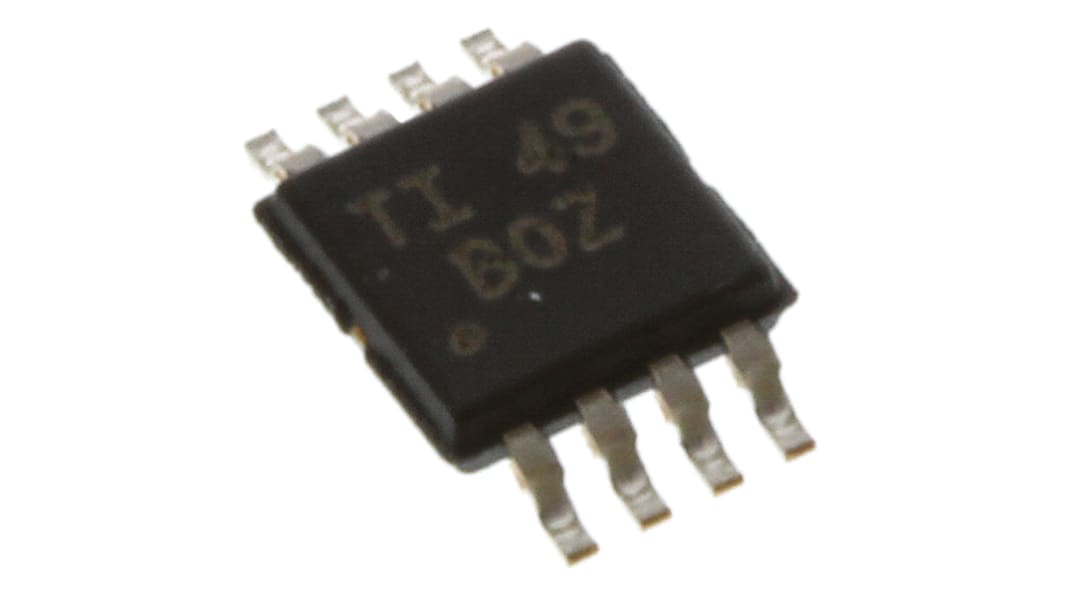

XTR117AIDGKT Texas Instruments Current Loop Transmitter 130 μA 5 V 8-Pin MSOP
- RS Stock No.:
- 660-7534
- Mfr. Part No.:
- XTR117AIDGKT
- Brand:
- Texas Instruments
Bulk discount available
Subtotal (1 unit)*
$4.66
(exc. GST)
$5.13
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Last RS stock
- Final 3 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 4 | $4.66 |
| 5 + | $3.85 |
*price indicative
- RS Stock No.:
- 660-7534
- Mfr. Part No.:
- XTR117AIDGKT
- Brand:
- Texas Instruments
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Quiescent Current | 130μA | |
| Product Type | Current Loop Transmitter | |
| Regulator Voltage | 5V | |
| Mount Type | Surface | |
| Package Type | MSOP | |
| Pin Count | 8 | |
| Minimum Supply Voltage | 7.5V | |
| Maximum Supply Voltage | 40V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Series | XTR117 | |
| Standards/Approvals | No | |
| Height | 0.97mm | |
| Length | 3mm | |
| Width | 3 mm | |
| Supply Current | 130μA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Quiescent Current 130μA | ||
Product Type Current Loop Transmitter | ||
Regulator Voltage 5V | ||
Mount Type Surface | ||
Package Type MSOP | ||
Pin Count 8 | ||
Minimum Supply Voltage 7.5V | ||
Maximum Supply Voltage 40V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Series XTR117 | ||
Standards/Approvals No | ||
Height 0.97mm | ||
Length 3mm | ||
Width 3 mm | ||
Supply Current 130μA | ||
Automotive Standard No | ||
4mA-to-20mA Current-Loop, Texas Instruments
4mA-to-20mA Current-Loop Communication
Current loop systems are used in electrically noisy industrial environments for sending analogue sensor data over long distances of 300m or more.
