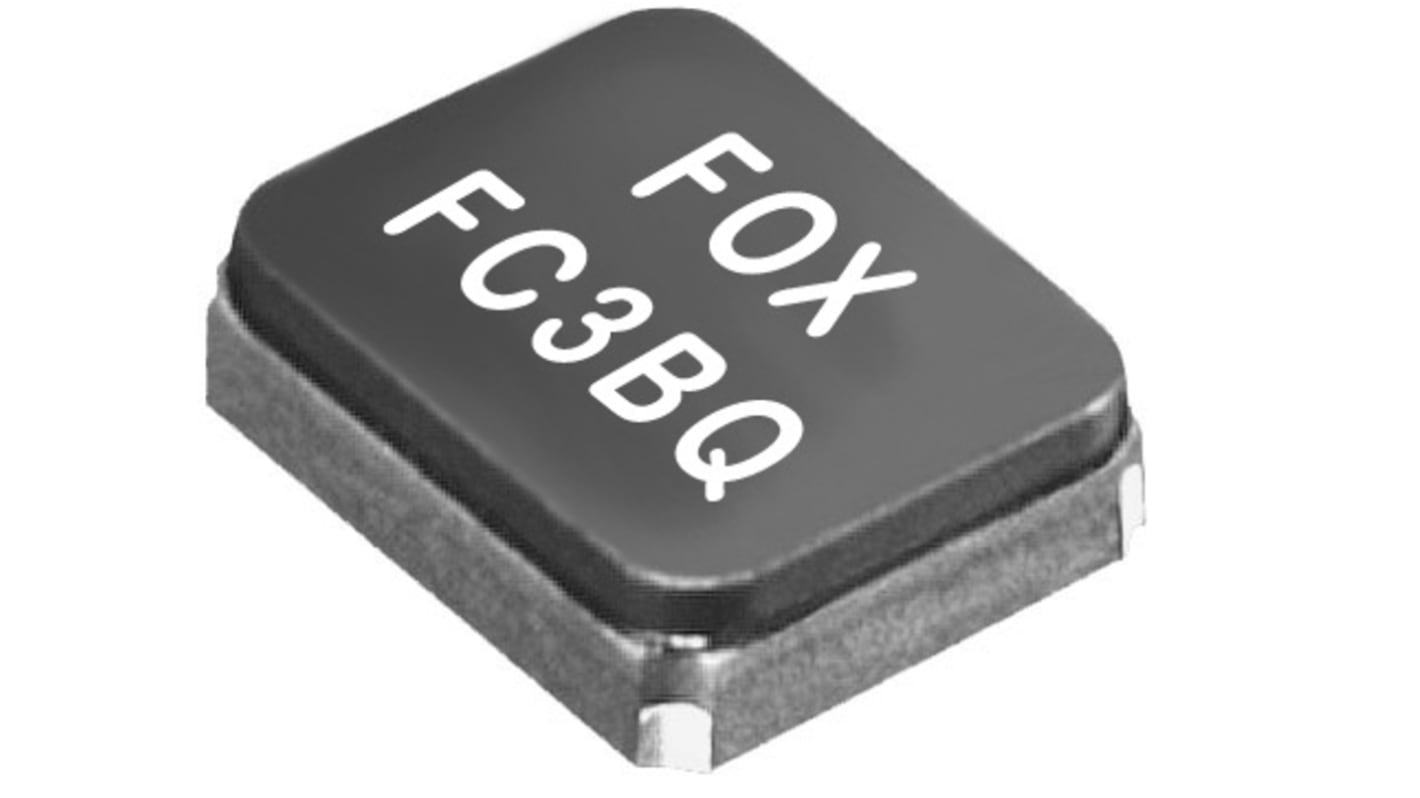

Abracon 25MHz Crystal ±50ppm SMD 4-Pin 3.3 x 2.5 x 1.1mm
- RS Stock No.:
- 226-0508
- Mfr. Part No.:
- FC3BQBBME25.0-T3
- Manufacturer:
- Abracon
View all Crystal Units
On back order for despatch 27/03/2023, delivery within 10 working days from despatch date.
Price (ex. GST) Each (On a Reel of 3000)
$0.466
(exc. GST)
$0.513
(inc. GST)
| units | Per unit | Per Reel* |
| 3000 - 12000 | $0.466 | $1,398.00 |
| 15000 + | $0.42 | $1,260.00 |
| *price indicative | ||
- RS Stock No.:
- 226-0508
- Mfr. Part No.:
- FC3BQBBME25.0-T3
- Manufacturer:
- Abracon
Technical data sheets
Legislation and Compliance
Product Details
The Abracon FC3BQ series is the SMD crystal with resin seal and it have termination finish of the ag. The shunt capacitance of this SMD crystal is the 3 pF and its load capacitance is the 20 pF.
Tolerances down to ±20 ppm
Stabilities down to ±10 ppm
Operating temperature range to -10°C to +70°C
Stabilities down to ±10 ppm
Operating temperature range to -10°C to +70°C
Specifications
| Attribute | Value |
| Standard Frequency | 25MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 20pF |
| Package Type | SMD |
| Pin Count | 4 |
| Dimensions | 3.3 x 2.5 x 1.1mm |
| Frequency Tolerance | ±50ppm |
