Adaptaflex, 20 mm Nominal Diameter, Polyvinyl Chloride, Polyvinyl Chloride, Black

View all Conduit
Bulk discount available

Subtotal (1 reel of 50 metres)*

$1,829.39

(exc. GST)

$2,012.33

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 - 4$1,829.39$36.588
5 +$1,796.83$35.937

*price indicative

RS Stock No.:
829-0270
Mfr. Part No.:
7TCA296030R0144 SPL20/50M
Brand:
Adaptaflex
Find similar products by selecting one or more attributes.
Select all

Brand

Adaptaflex

Product Type

Conduit

Nominal Diameter

20mm

Material

Polyvinyl Chloride

Coating Material

Polyvinyl Chloride

Series

SPL

Colour

Black

Length

50m

IP Rating

IP66, IP69K, IP68, IP67

Resistance Features

Halogen Free

Maximum Operating Temperature

105°C

Hazardous Area Certification

IECEx, ATEX

Standards/Approvals

ATEX/IECEx

Minimum Bend Radius

80mm

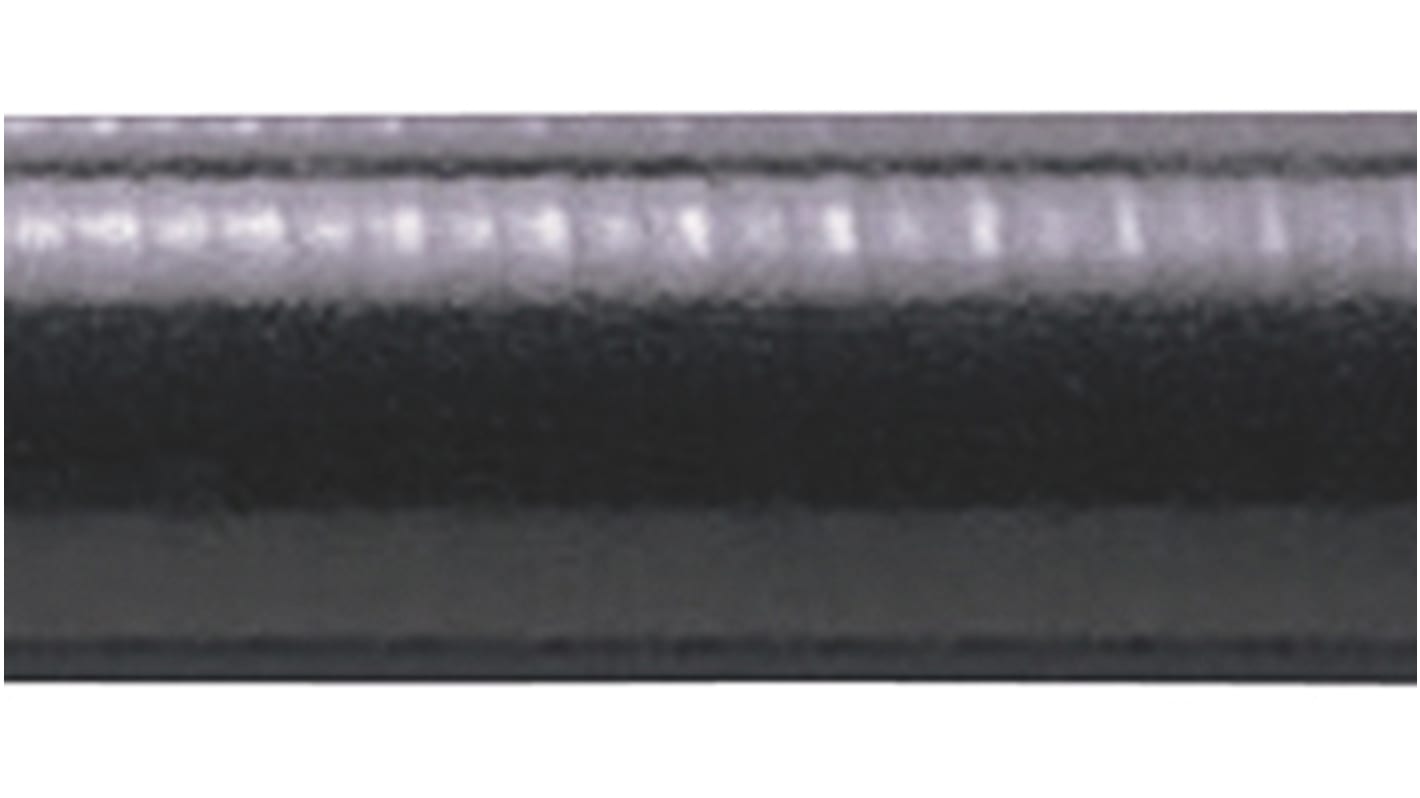

ABB Conduit, 20mm Nominal Diameter, 50m Length - 7TCA296030R0144 SPL20/50M


This conduit provides protective routing for cables and wiring in industrial settings where environmental sealing and hazardous-area performance are required. Manufactured from polyvinyl chloride with a black finish, it is supplied on a 50m roll and is intended for use where resistance to harsh conditions and chemical exposure is needed. Certification enables its deployment in explosive atmospheres and areas demanding robust ingress protection.

Features & Benefits


• Halogen-free composition reduces toxic gas release in fires
• Rated for continuous operation up to 105°C for high-temperature use
• Multiple ingress ratings ensure protection against dust and water
• Flexible construction allows tight routing with an 80mm minimum bend radius
• Durable PVC finish provides resistance to mechanical and chemical exposure

Applications


• Suitable for cable routing in hazardous-area control cabinets
• Ideal for field wiring in process automation plants
• Used with sensor and actuator cabling in marine and washdown zones
• Can be used for power and signal protection in heavy industry

What approvals permit use in explosive atmospheres?


It carries ATEX and IECEx approvals allowing installation in zones defined by those standards for potentially explosive gas or dust mixtures.

How does the product behave under washdown and steam-clean conditions?


The conduit meets high ingress protection ratings including IP69K, providing resistance to high-pressure, high-temperature water jets during cleaning.

What material properties affect long-term chemical exposure?


The polyvinyl chloride construction offers chemical resistance typical of PVC compounds and its halogen-free formulation reduces corrosive combustion by-products.

How is handling affected when routing through confined spaces?


Its flexibility and a minimum bend radius of 80mm permit installation through tight conduits and cable trays without kinking.
