LM392M/NOPB Texas Instruments Comparator CMOS/TTL O/P, 1.3 μs 32 V 3 V 8-Pin SOIC
- RS Stock No.:
- 536-1372
- Mfr. Part No.:
- LM392M/NOPB
- Brand:
- Texas Instruments

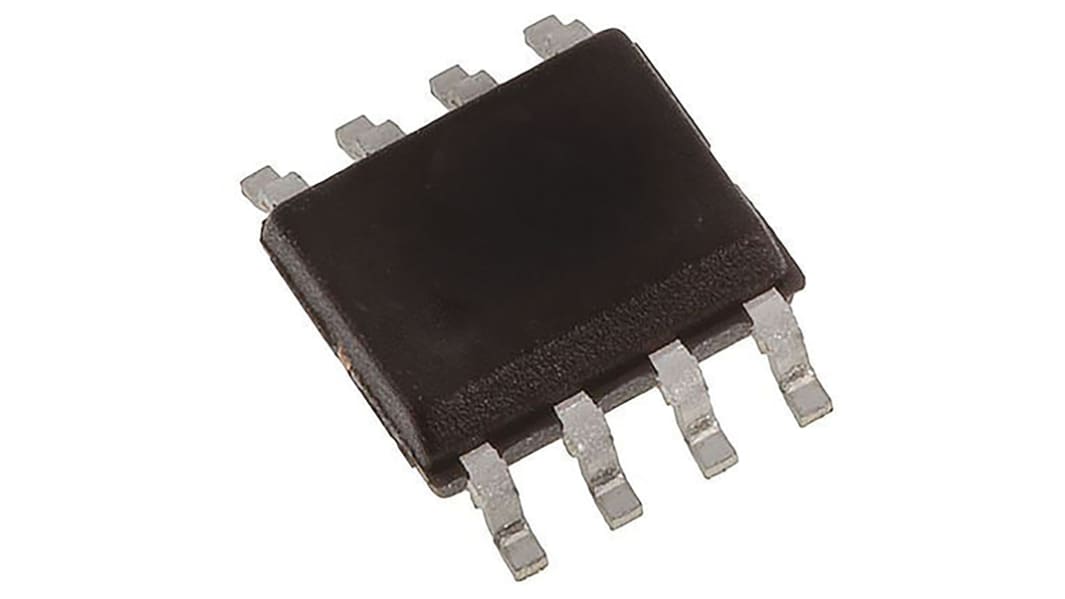

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
$2.15
(exc. GST)
$2.36
(inc. GST)
Add 30 units to get free delivery
Last RS stock
- 1 left, ready to ship from another location
- Final 20 unit(s) shipping from 12 February 2026
Units | Per unit |
|---|---|
| 1 - 9 | $2.15 |
| 10 - 49 | $2.05 |
| 50 - 99 | $1.96 |
| 100 - 499 | $1.88 |
| 500 + | $1.79 |
*price indicative
- RS Stock No.:
- 536-1372
- Mfr. Part No.:
- LM392M/NOPB
- Brand:
- Texas Instruments
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Comparator | |
| Comparator Type | Low Power | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Output Type | CMOS/TTL | |
| Typical Response Time | 1.3μs | |
| Pin Count | 8 | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 32V | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 70°C | |
| Length | 4.9mm | |
| Width | 3.9 mm | |
| Height | 1.45mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Supply Current | 2mA | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Comparator | ||
Comparator Type Low Power | ||
Mount Type Surface | ||
Package Type SOIC | ||
Output Type CMOS/TTL | ||
Typical Response Time 1.3μs | ||
Pin Count 8 | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 32V | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 70°C | ||
Length 4.9mm | ||
Width 3.9 mm | ||
Height 1.45mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
Supply Current 2mA | ||
Combined Comparator & Operational Amplifier
Integrated solutions from Texas Instruments combining a general purpose operational amplifier and voltage comparator in a single package.
Comparators, Texas Instruments
Texas Instruments’ range of voltage comparators includes not only conventional single, dual and quad comparator packages but also window comparators and over- & under-voltage supervisors.
Although comparators and operational amplifiers are superficially similar devices their operation in practical applications is very different. Op amps are intended for linear operation accompanied by suitable feedback whereas comparators are tailored for rapid switching and generally operated in open-loop mode. Dedicated voltage comparators have significantly shorter propagation delays and are capable of faster response times under saturated conditions. Most comparators are also more tolerant of high differential input voltages and many have open-collector outputs allowing parallel operation with other devices.
