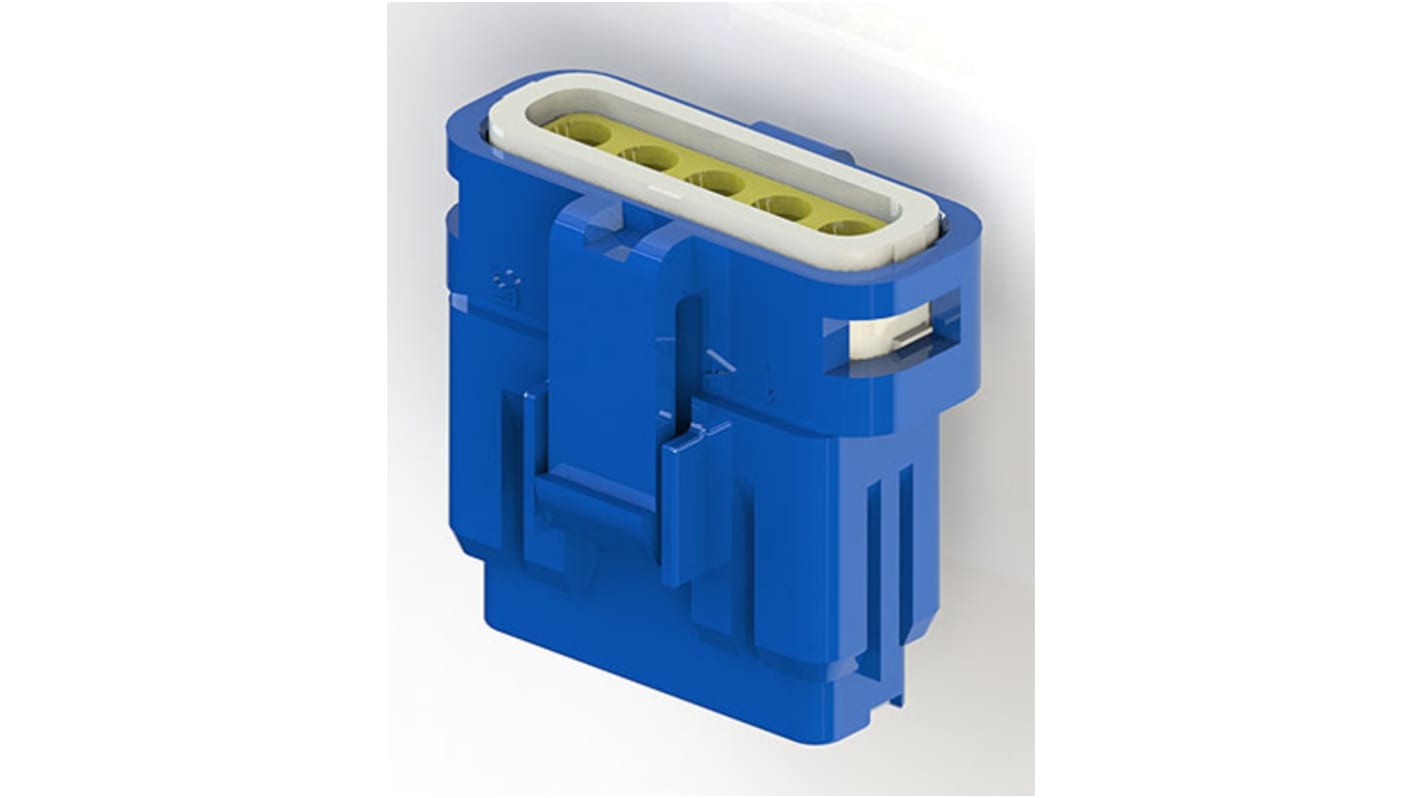

EDAC Wire to Wire Connector Cable Mount Socket, 5P, Crimp Termination, 3A, 250 V

RS Stock No.:: 111-9318
Mfr. Part No.:: 560-005-000-410
Brand:: EDAC

EDAC Wire to Wire Connector Cable Mount Socket, 5P, Crimp Termination, 3A, 250 V

On back order for despatch 10/08/2024, delivery within 10 working days from despatch date.

Price (ex. GST) Each (In a Pack of 10)

$1.377

(exc. GST)

$1.515

(inc. GST)

Units	Per unit	Per Pack*
10 +	$1.377	$13.77

*price indicative

RS Stock No.:: 111-9318
Mfr. Part No.:: 560-005-000-410
Brand:: EDAC

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

EDAC IP67 560 Series Receptacles

From EDAC, a series of superior quality fully waterproof wire to wire connectors. These IP67 rated receptacles have pre-assembled housings featuring an integrated seal providing complete waterproof protection guaranteeing no water ingress. The 560 series of connectors have a 2.5 mm pitch and can accommodate a wire size range of 1.0 mm to 1.7 mm. This range of wire to wire connectors are available in 2, 3 and 5 pole arrangements offering a wide range of connection solutions. Operating temperature across the whole series of -40° to + 105°. A hand crimp tool for the 560 series is available, see part number 111-9356

Features and Benefits

Fully waterproof with double latch
Internal polarisation preventing miss mating
Pre-assembled housings and seals
Easy crimp and poke
Wire to wire and wire to board options

Applications

Lighting
Industrial Pumps
Test equipment
Emergency vehicles
Construction equipment
Welding equipment
Automotive
Sound and broadcast systems

IP67 Edac Range

Specifications

Attribute	Value
Pole Format	5P
Plug/Socket	Socket
Voltage Rating	250 V
Gender	Female
Mounting Type	Cable Mount
Current Rating	3A
Termination Method	Crimp
Contact Material	Phosphor Bronze
Housing Material	PBT
Cable Diameter	1.3mm
Contact Plating	Tin
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+105°C
Series Number	560
