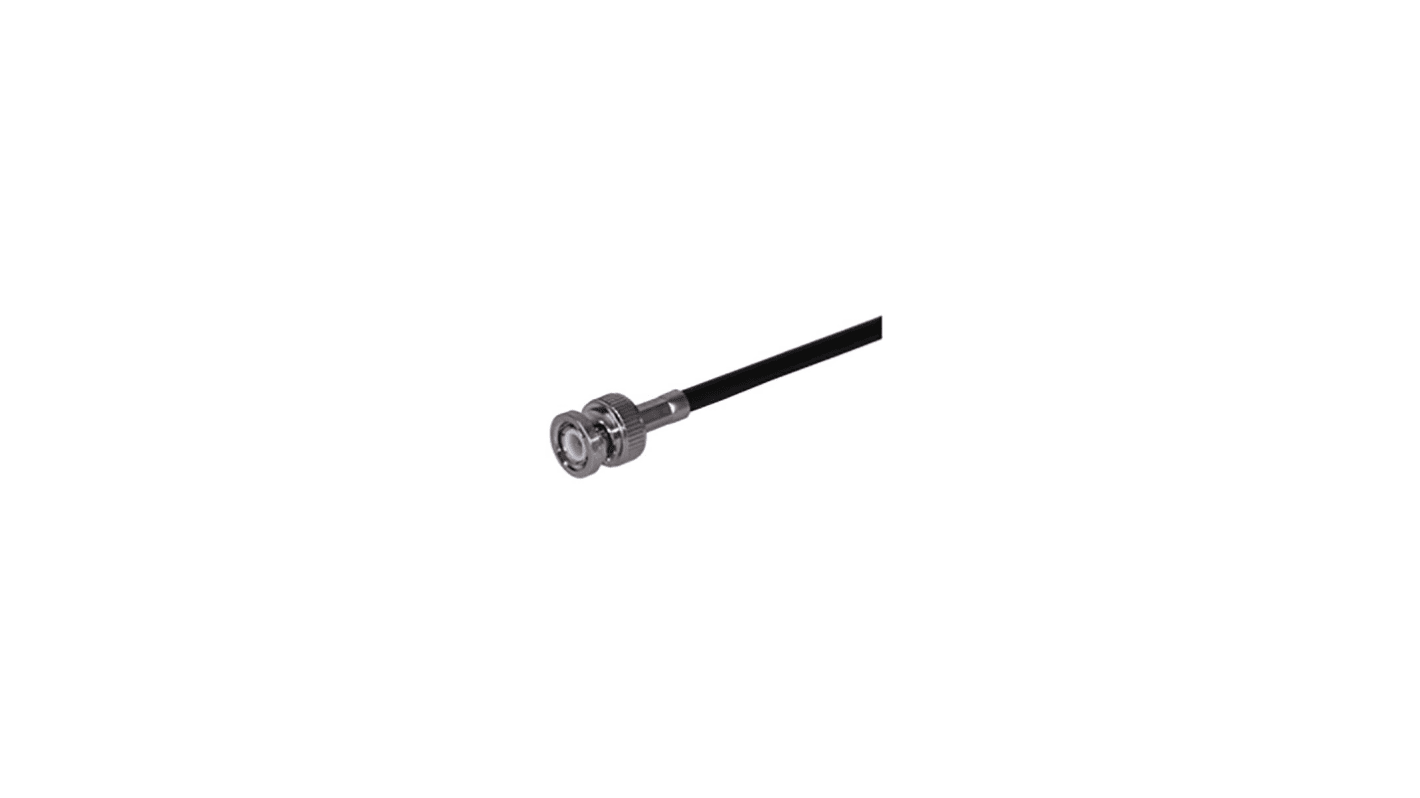

Huber+Suhner 11_BNC-50-3-86/133_NE Series, Plug Cable Mount BNC Connector, 50Ω, Crimp Termination, Straight Body
- RS Stock No.:
- 205-9100
- Mfr. Part No.:
- 11_BNC-50-3-86/133_NE
- Brand:
- Huber+Suhner
146 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$22.36
(exc. GST)
$24.60
(inc. GST)
| Units | Per unit |
| 1 - 9 | $22.36 |
| 10 - 24 | $21.70 |
| 25 - 49 | $21.01 |
| 50 - 99 | $20.59 |
| 100 + | $20.14 |
- RS Stock No.:
- 205-9100
- Mfr. Part No.:
- 11_BNC-50-3-86/133_NE
- Brand:
- Huber+Suhner
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 4 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.
Impedance 50 O
Interface frequency max. 4 GHz
Frequency range DC to 2.5 GHz 2.5 to 4 GHz
Return loss 29 dB 22 dB
Centre contact crimped
Outer contact crimped
Weight 0.01 kg
Operating temperature -65 °C to 165 °C
Interface frequency max. 4 GHz
Frequency range DC to 2.5 GHz 2.5 to 4 GHz
Return loss 29 dB 22 dB
Centre contact crimped
Outer contact crimped
Weight 0.01 kg
Operating temperature -65 °C to 165 °C
Specifications
Attribute | Value |
|---|---|
| Gender | Male |
| Coaxial Connector Type | BNC Connector |
| Mounting Type | Cable Mount |
| Impedance | 50Ω |
| Termination Method | Crimp |
| Body Orientation | Straight |
| Cable Type | Coaxial |
| Bulkhead | No |
| Body Plating | Brass |
| Polarity | Normal |
| Series | 11_BNC-50-3-86/133_NE |
