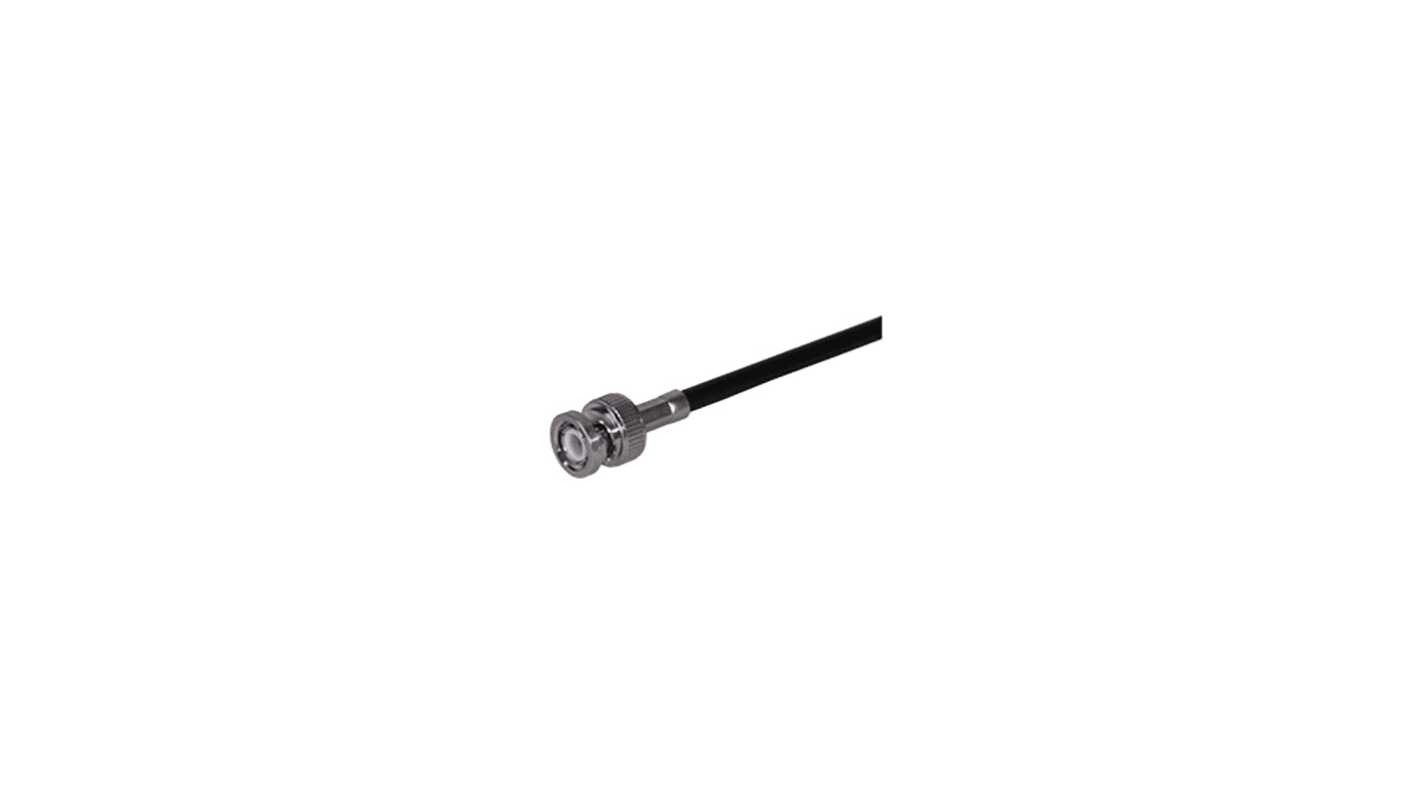

Huber+Suhner 11_BNC-50-4-29/133_NE Series, Plug Cable Mount BNC Connector, 50Ω, Crimp Termination, Straight Body

The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 4 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.

Impedance 50 O
Interface frequency max. 4 GHz
Frequency range DC to 2 GHz 2 to 4 GHz
Return loss 31.8 dB 31 dB
Centre contact crimped
Outer contact crimped
Weight 0.0103 kg
Operating temperature -65 °C to 165 °C
