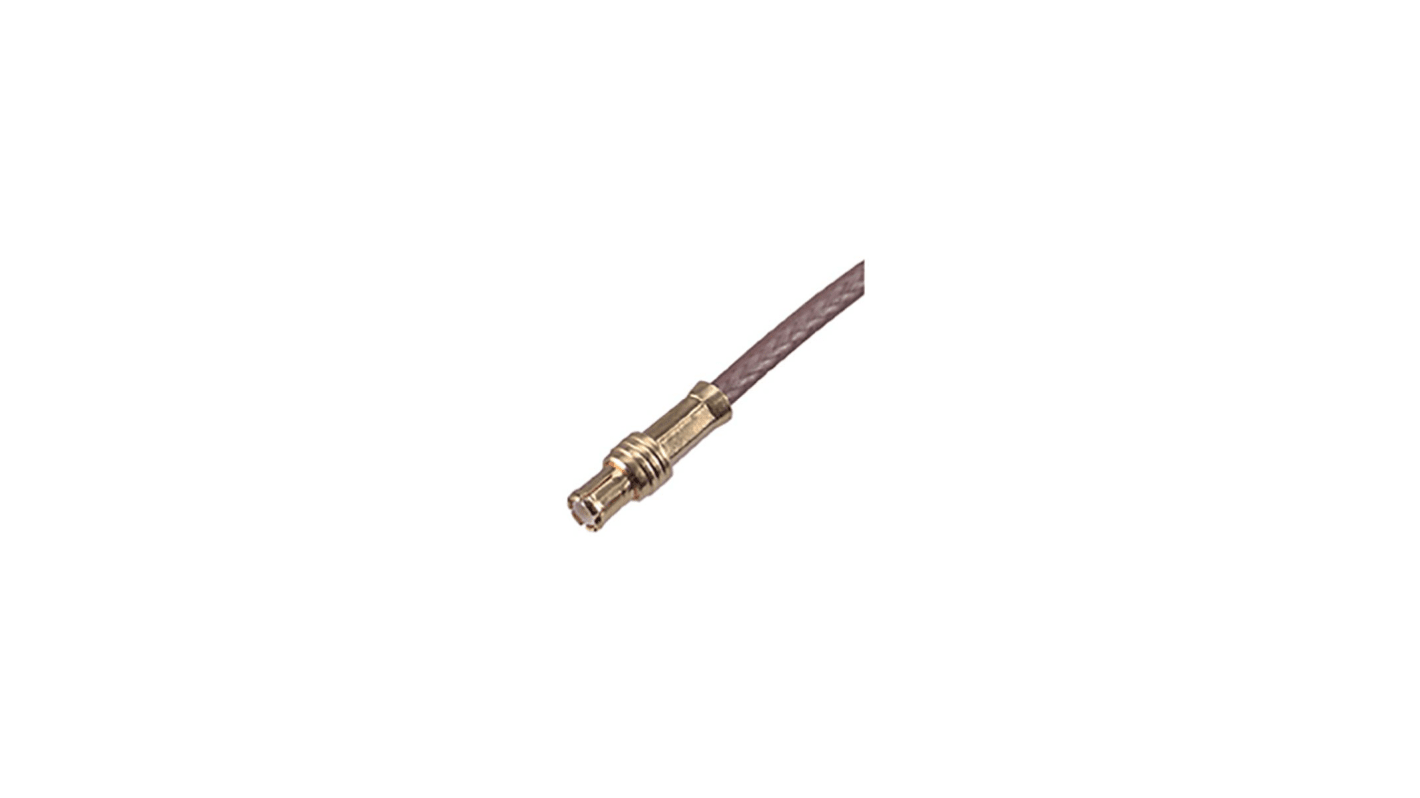

Huber+Suhner 11_MCX-50-2-15/111_NH Series, Plug Cable Mount MCX Connector, Crimp Termination, Straight Body
- RS Stock No.:
- 205-8984
- Mfr. Part No.:
- 11_MCX-50-2-15/111_NH
- Brand:
- Huber+Suhner
114 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each (In a Box of 100)
$6.732
(exc. GST)
$7.405
(inc. GST)
Units | Per unit | Per Box* |
---|---|---|
100 - 400 | $6.732 | $673.20 |
500 + | $6.059 | $605.90 |
*price indicative
- RS Stock No.:
- 205-8984
- Mfr. Part No.:
- 11_MCX-50-2-15/111_NH
- Brand:
- Huber+Suhner
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PL
Product Details
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 6 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.
Impedance 50 O
Interface frequency max. 6 GHz
Frequency range DC to 1 GHz 1 to 2 GHz 2 to 2.5 GHz
Return loss 30 dB 30 dB 25 dB
Centre contact crimped
Outer contact crimped
Weight 0.0008 kg
Operating temperature -55 °C to 155 °C
Interface frequency max. 6 GHz
Frequency range DC to 1 GHz 1 to 2 GHz 2 to 2.5 GHz
Return loss 30 dB 30 dB 25 dB
Centre contact crimped
Outer contact crimped
Weight 0.0008 kg
Operating temperature -55 °C to 155 °C
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Coaxial Connector Type | MCX Connector |
Gender | Male |
Mounting Type | Cable Mount |
Termination Method | Crimp |
Body Orientation | Straight |
Cable Type | Coaxial |
Bulkhead | No |
Body Plating | Brass |
Polarity | Normal |
Series | 11_MCX-50-2-15/111_NH |
