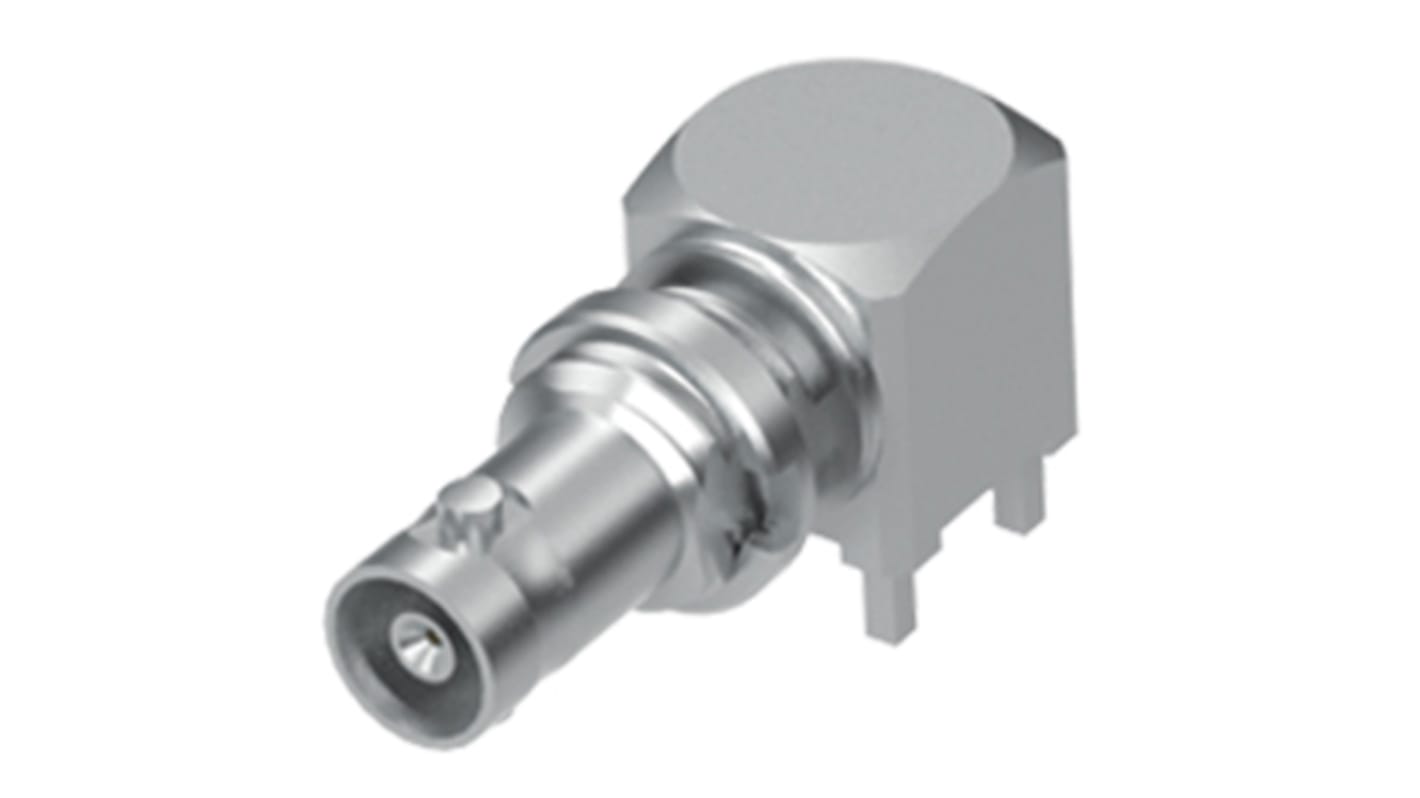

Samtec HD-BNC Series, jack PCB Mount BNC Connector, 75Ω, Through Hole Termination, Right Angle Body
- RS Stock No.:
- 123-6857
- Mfr. Part No.:
- HDBNC-J-P-gN-RA-BH1
- Brand:
- Samtec
On back order for despatch 31/07/2024, delivery within 10 working days from despatch date.
Price (ex. GST) Each
$17.31
(exc. GST)
$19.04
(inc. GST)
Units | Per unit |
---|---|
1 - 9 | $17.31 |
10 - 99 | $16.81 |
100 - 249 | $16.29 |
250 - 499 | $15.93 |
500 + | $15.60 |
- RS Stock No.:
- 123-6857
- Mfr. Part No.:
- HDBNC-J-P-gN-RA-BH1
- Brand:
- Samtec
Technical data sheets
Legislation and Compliance
Product Details
Samtec 75 Ω BNC PCB Mount Jacks
From Samtec, a series of HD (high density) 75 Ω BNC jacks. The BNC jacks feature the traditional quarter turn bayonet coupling mechanism of standard BNCs but in a reduced size. Increasing the component board population up to 4 x. Part numbers ending in EM and TH offer extended performance of 0-12GHz, and RA versions 0-6GHz. BNC connectors are available in straight and right angled versions.
Features and Benefits
Extended performance for EM and TH versions
20% weight reduction of conventional BNCs
Compact size, increased board population.
20% weight reduction of conventional BNCs
Compact size, increased board population.
Applications
Instrumentation
Broadcast
Security
Telecom
Broadcast
Security
Telecom
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Samtec BNC Range
Specifications
Attribute | Value |
---|---|
Gender | Female |
Coaxial Connector Type | BNC Connector |
Mounting Type | PCB Mount |
Impedance | 75Ω |
Termination Method | Through Hole |
Body Orientation | Right Angle |
Cable Type | Microwave |
Size | Standard |
Bulkhead | Yes |
Operating Frequency | 0 to 6GHz |
Body Plating | Gold |
Series | HD-BNC |
Contact Material | Copper Alloy |
Contact Plating | Gold |
